47

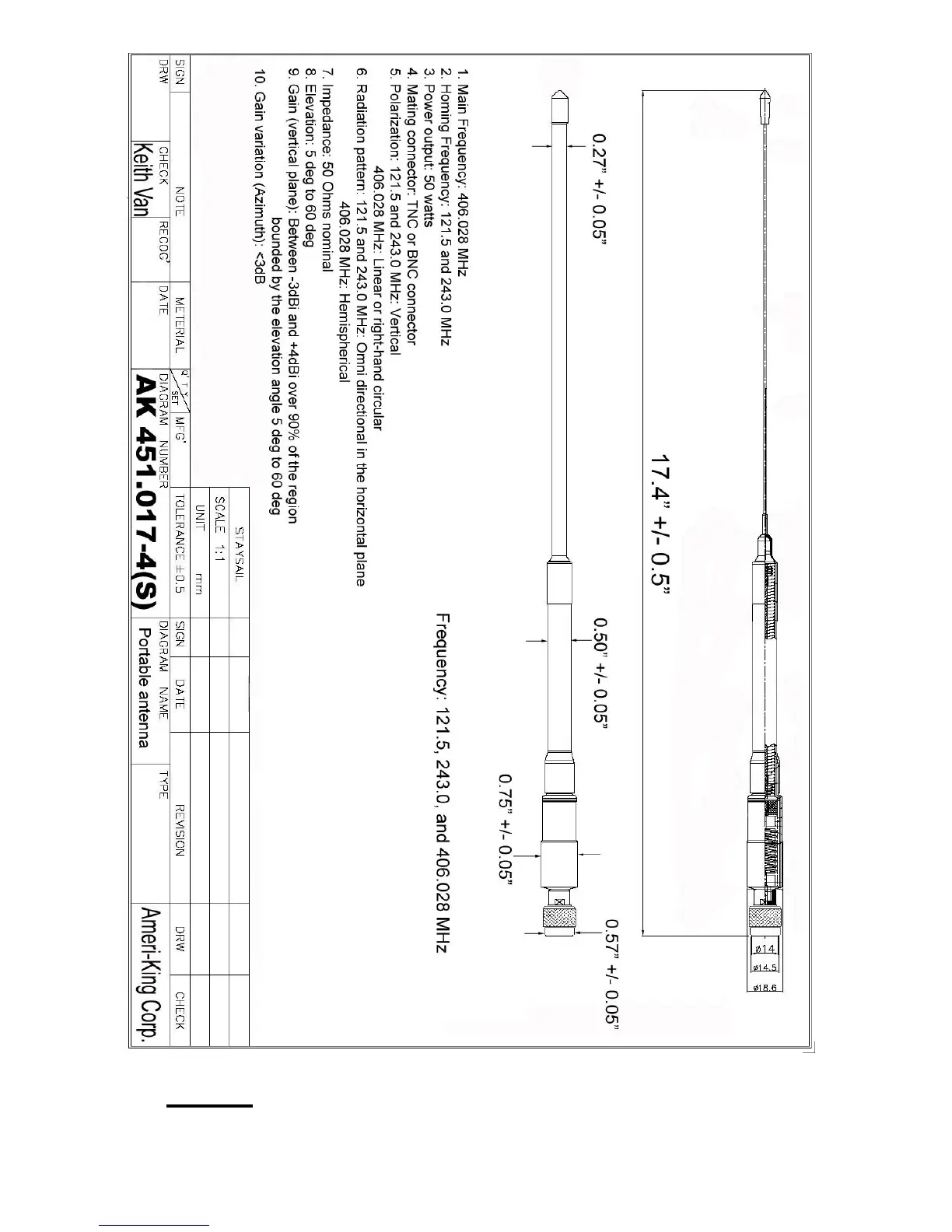

Figure 9: Integral Portable whip Antenna (AK 451.017-4(S))
(with 2 attached string bands supplied)
(Antenna ground plane is not required.)
