Ameri-King AK-451 Series - Figure 14.1 C: Wiring Diagram for Retrofitting AK-451 with 4-Wire

65

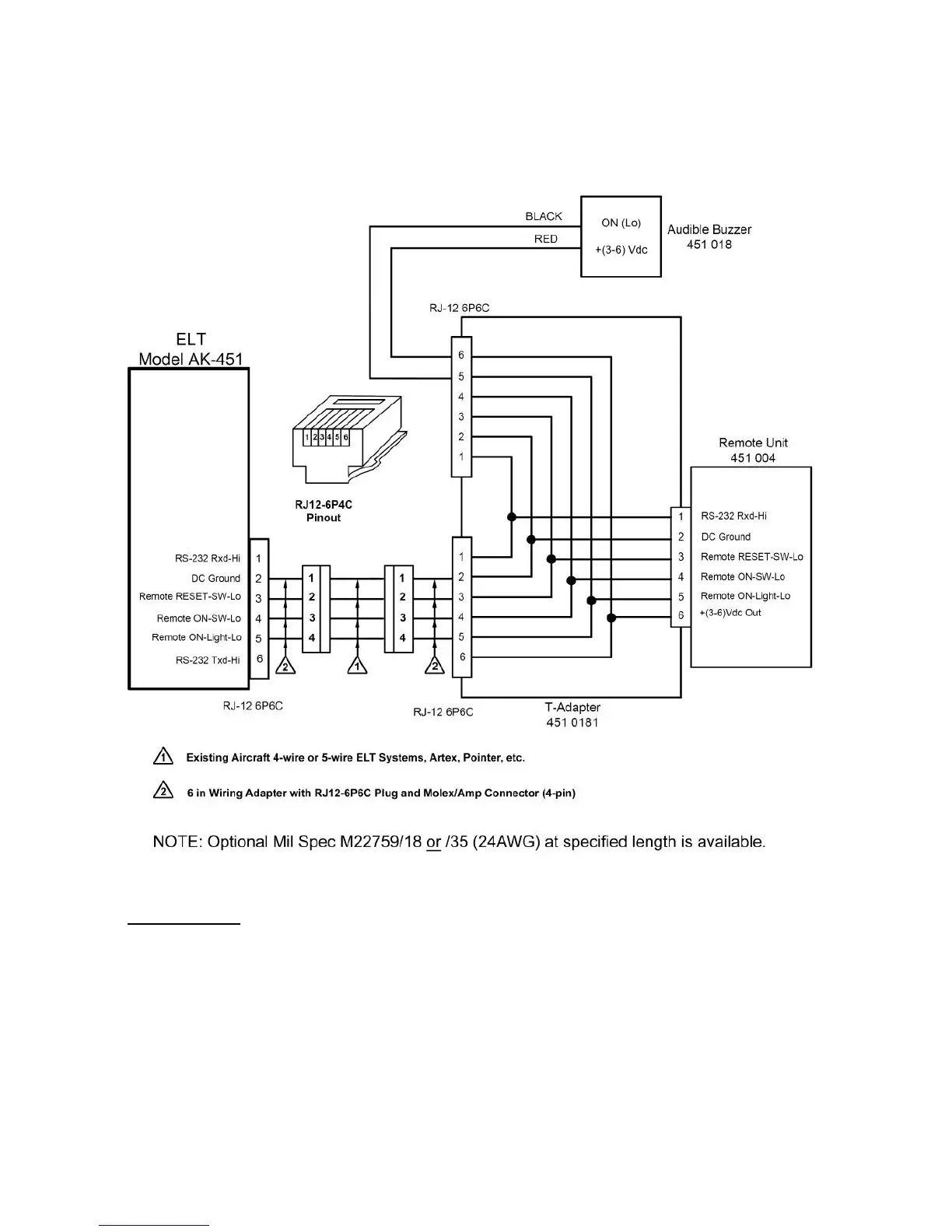

Figure 14.1c: Wiring Diagram for retrofitting AK-451 with 4-wire+ interconnecting
ELT Main Unit and Remote Switch Unit, Artex, Pointer, Kannad, ACK Tech…
