67

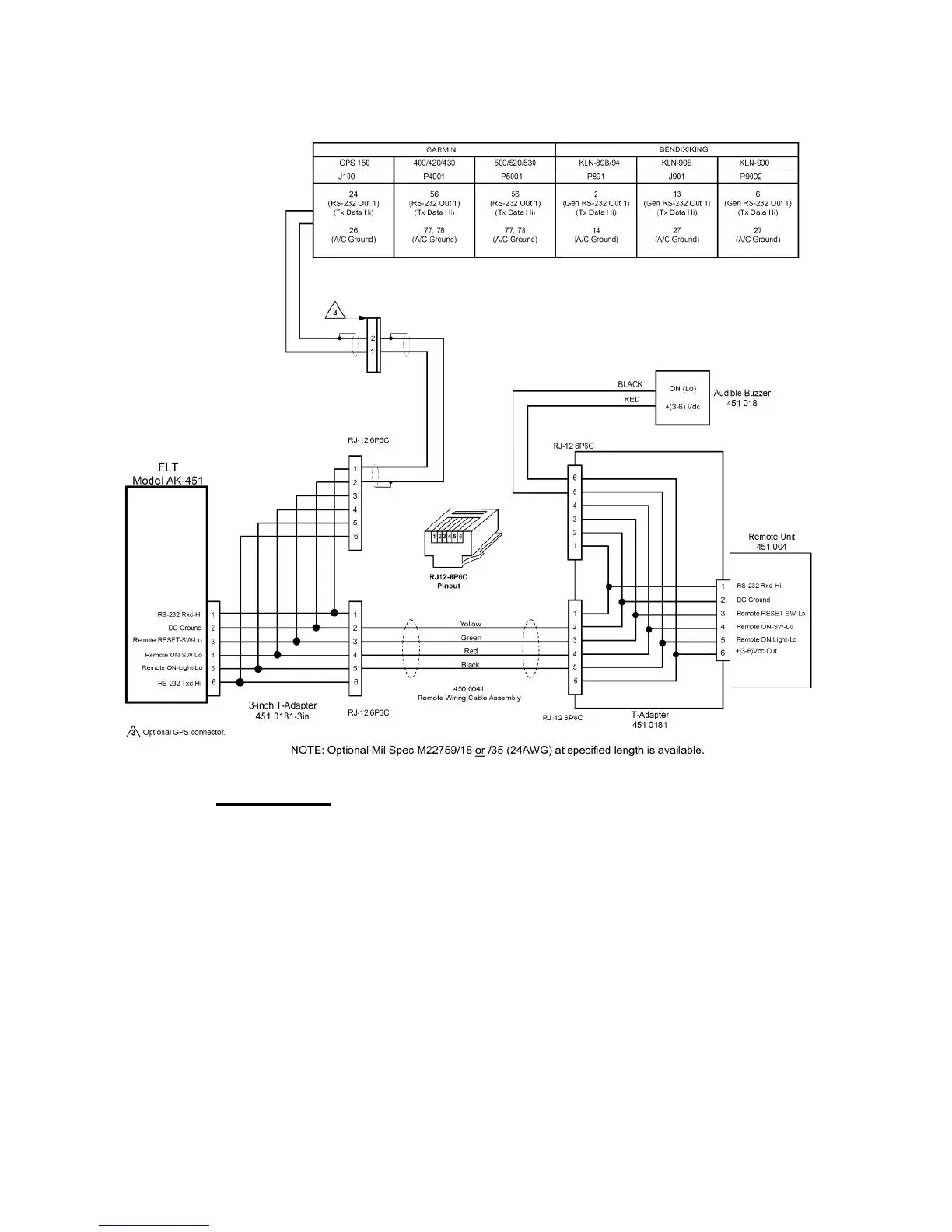

Figure 14.2a: Wiring Diagram for AK-451 with GPS Position
and 3-inch T adapter
with 4-wire interconnecting ELT Main Unit and Remote Switch Unit
