PAGE 6 Pub. No. 11-AC11D2-5
INSTALLER'S GUIDE
From Dwg. D152862 Rev. 17

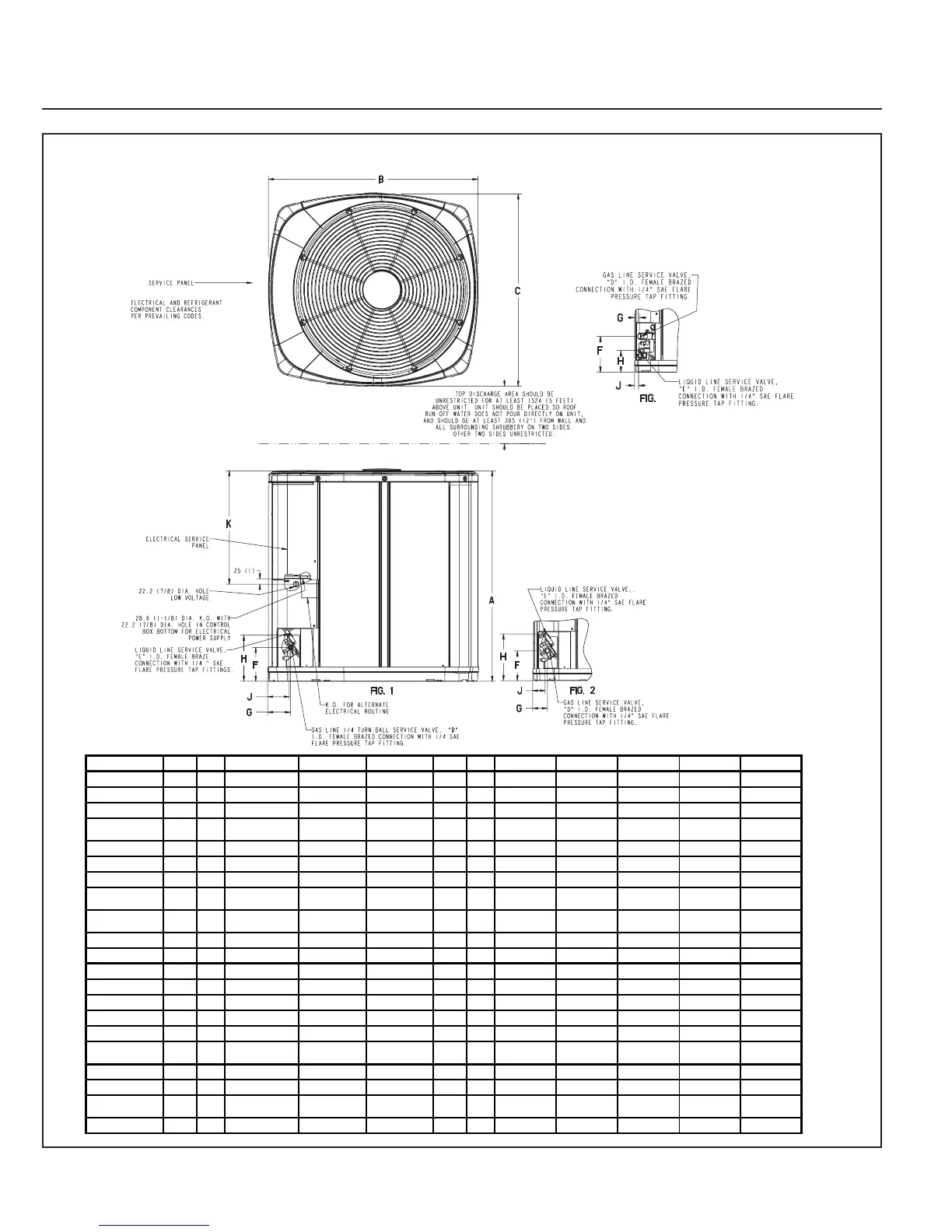

2A7A5, 2A7A4, 2A7A2, & 2A7A1 OUTLINE DRAWING
3
MODELS BASE FIG. A B C D E F G H J K
2A7A1018A 1 3 1045 (25-1/2) 502 (19-3/4) 476 (18-3/4) 5/8 1/4 149 (5-7/8) 19 (3/4) 89 (3-1/2) 16 (5/8) 460 (18-1/8)
2A7A1024A 1 3 1045 (25-1/2) 502 (19-3/4) 476 (18-3/4) 3/4 5/16 149 (5-7/8) 19 (3/4) 89 (3-1/2) 16 (5/8) 460 (18-1/8)
2A7A1030A 2 2 651 (25-5/8) 724 (28-1/2) 651 (25-5/8) 3/4 5/16 127 (5) 57 (2-1/4) 180 (7-1/8) 44 (1-3/4) 457 (18)
2A7A1036A
2A7A1042A
2 2 651 (25-5/8) 724 (28-1/2) 651 (25-5/8) 7/8 3/8 127 (5) 57 (2-1/4) 180 (7-1/8) 44 (1-3/4) 457 (18)
2A7A1048A 2 2 730 (28-3/4) 724 (28-1/2) 651 (25-5/8) 1-1/8 3/8 137 (5-3/8) 65 (2-5/8) 210 (8-1/4) 57 (2-1/4) 457 (18)
2A7A1060A 3 1 933 (36-3/4) 829 (32-5/8) 756 (29-3/4) 1-1/8 3/8 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 508 (20)
2A7A2018A 2 2 651 (25-5/8) 724 (28-1/2) 651 (25-5/8) 5/8 1/4 127 (5) 57 (2-1/4) 180 (7-1/8) 44 (1-3/4) 457 (18)
2A7A2024A
2A7A2030A
2 2 730 (28-3/4) 724 (28-1/2) 651 (25-5/8) 3/4 5/16 137 (5-3/8) 65 (2-5/8) 210 (8-1/4) 57 (2-1/4) 457 (18)
2A7A2036A
2A7A2042B
2 2 832 (32-3/4) 724 (28-1/2) 651 (25-5/8) 7/8 3/8 137 (5-3/8) 65 (2-5/8) 210 (8-1/4) 57 (2-1/4) 457 (18)
2A7A2048A 3 1 933 (36-3/4) 829 (32-5/8) 756 (29-3/4) 1-1/8 3/8 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 508 (20)
2A7A2060B 4 1 1045 (41-1/8) 946 (37-1/4) 870 (34-1/4) 1-1/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 508 (20)
2A7A4018B 3 2 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 5/8 1/4 137 (5-3/8) 86 (3-3/8) 210 (8-1/4) 79 (3-1/8) 508 (20)
2A7A4024B 3 2 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 3/4 5/16 137 (5-3/8) 86 (3-3/8) 210 (8-1/4) 79 (3-1/8) 508 (20)
2A7A4030B 3 1 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 3/4 5/16 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 508 (20)
2A7A4036B 3 1 933 (36-3/4) 829 (32-5/8) 756 (29-3/4) 7/8 3/8 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 508 (20)
2A7A4042B 4 1 943 (37-1/8) 946 (37-1/4) 870 (34-1/4) 7/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 508 (20)
2A7A4048B
2A7A4060B
4 1 1045 (41-1/8) 946 (37-1/4) 870 (34-1/4) 1-1/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 508 (20)
2A7A5024A 4 2 943 (37-1/8) 946 (37-1/4) 870 (34-1/4) 3/4 5/16 143 (5-5/8) 98 (3-7/8) 219 (8-5/8) 89 (3-1/2) 508 (20)
2A7A5030A 4 1 943 (37-1/8) 946 (37-1/4) 870 (34-1/4) 3/4 5/16 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 508 (20)
2A7A5036A
2A7A5042A
4 1 1045 (41-1/8) 946 (37-1/4) 870 (34-1/4) 7/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 508 (20)
2A7A5048A 4 1 1045 (41-1/8) 946 (37-1/4) 870 (34-1/4) 1-1/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 508 (20)
NOTE: ALL DIMENSIONS
ARE IN MM (INCHES).
