Pub. No. 11-AC11D2-5 PAGE 7
INSTALLER'S GUIDE

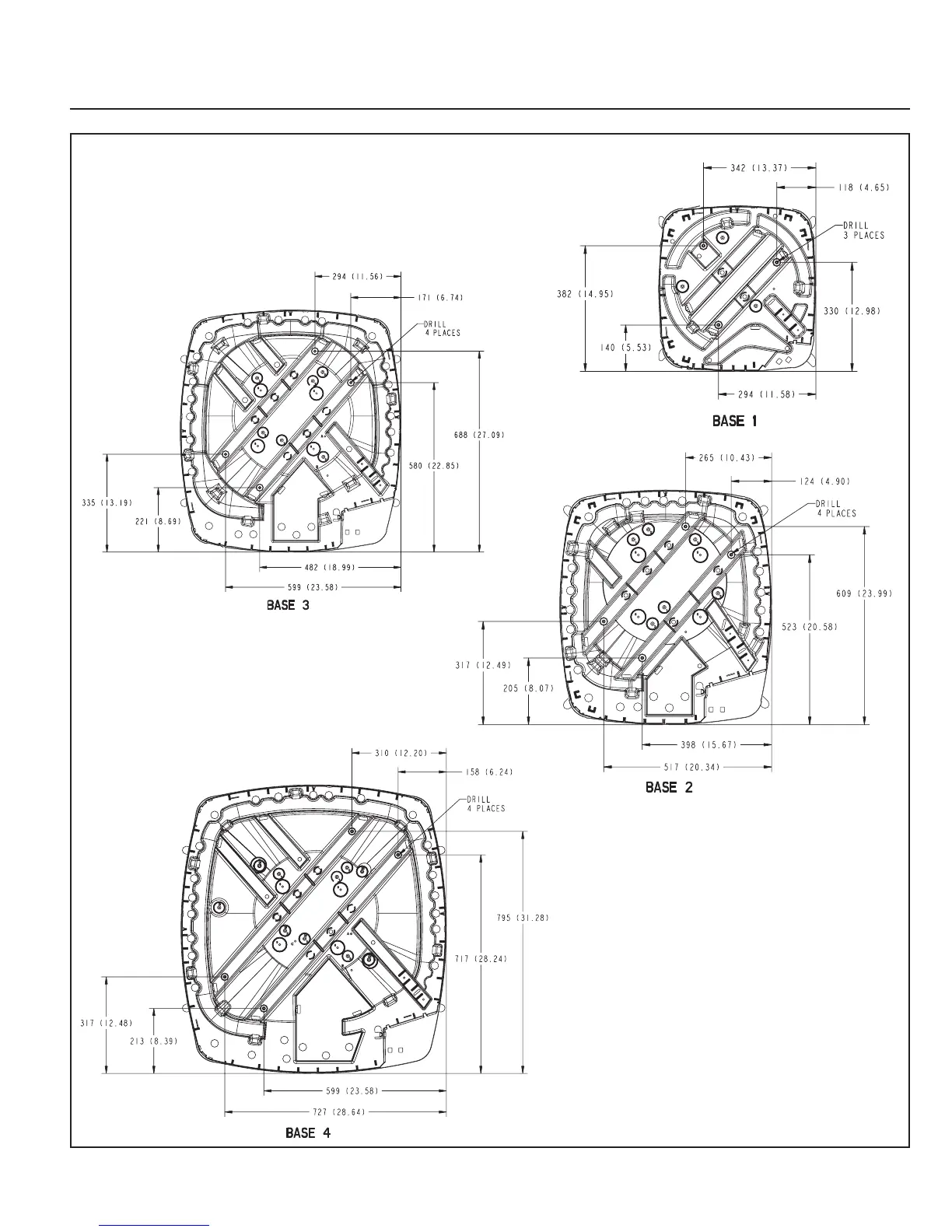

MOUNTING HOLE LOCATION
NOTE: ALL DIMENSIONS ARE IN MM (INCHES).
NOTE: For model base size,
see table on page 6.
From Dwg. 21D152989 Rev. 1
