NOTE: The wiring diagrams in this guide are included as a reference. The manufacturer
has a policy of continuous product and product data improvement and reserves the
right to change design and specications without notice. Always check the unit
nameplate and wiring diagram for the actual unit requirements.
These diagrams are subject to change without notice, please refer to the diagram supplied with the unit.
N(1)
N(1)
3
NOTE: Motor ground only
applies to metal clad
motors.
NOTE: Motor ground only
applies to metal clad
motors.

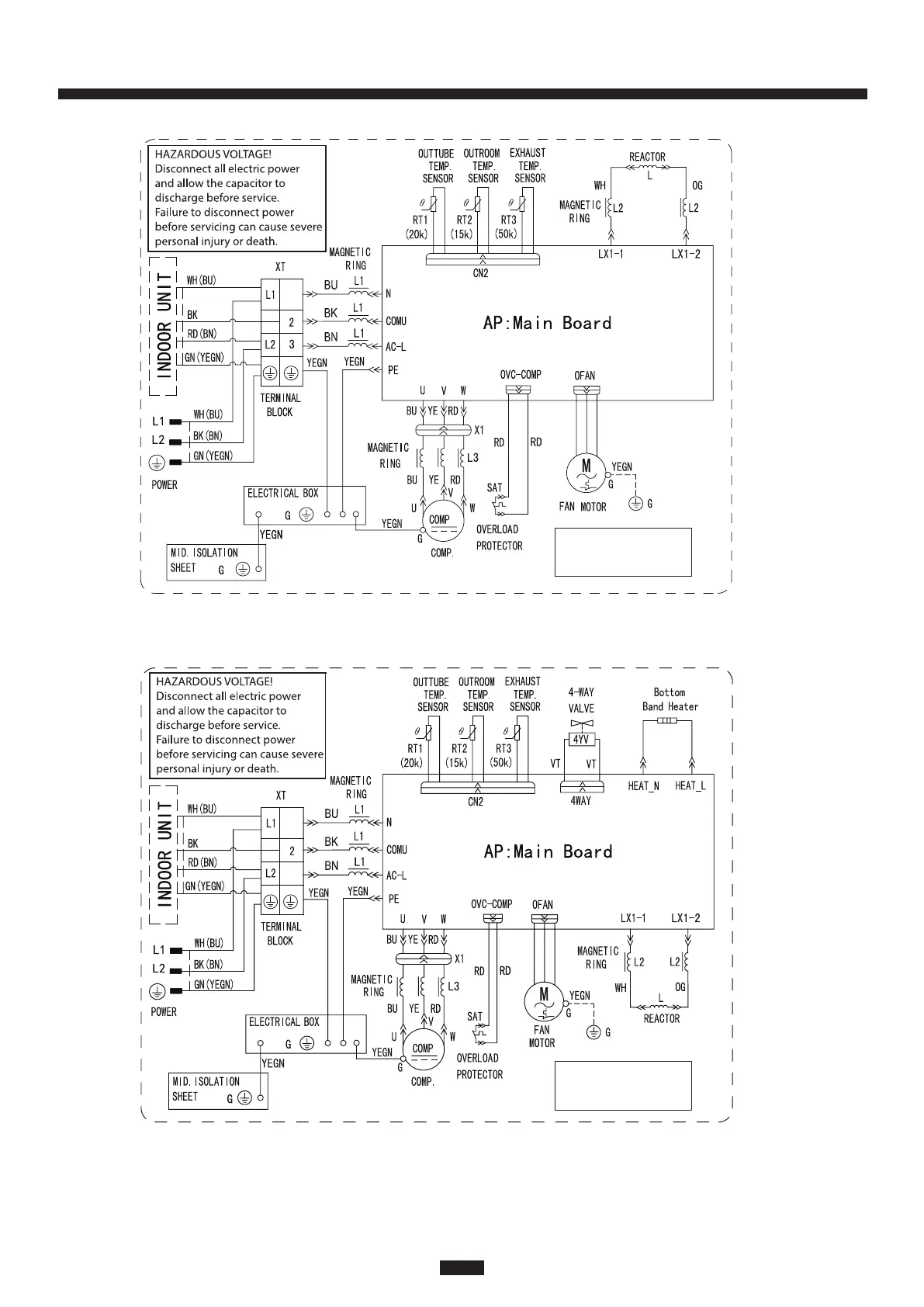

Outdoor Cooling Unit 9K-12K
Outdoor Heat Pump Unit 9K-12K
32
16 Series Mini-Split
