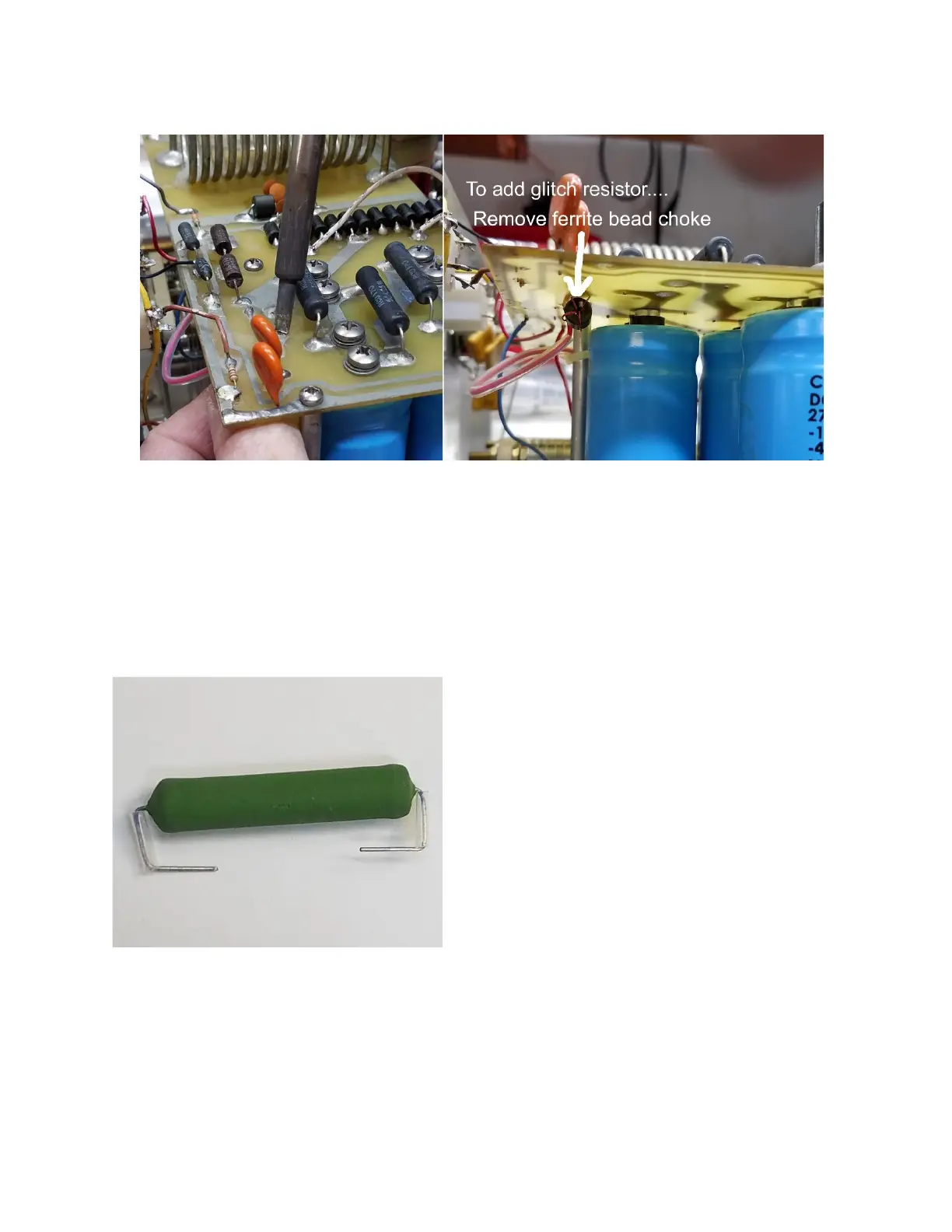

Figure 33 remove bead choke
Install the glitch resistor as shown below by surface soldering. Remember it replaces the ferrite
bead HV choke.
Figure 34 form resistor leads to surface solder
See the supply kit below for resistor mounting, whether you have the supply kit or not.
The 811KS supply kit that has solder-in 500V long life high temperature capacitors. These
capacitors are more than enough capacitance to get over the voltage filtering and regulation
