26
Pre-tinning leads aids soldering, but be careful pre-tinning through hole leads. Through hole
leads may need hot-wiped of excess solder using a wet paper towel. (Note: Due to supplier
parts shortages, we may substitute a different appearing resistor!)

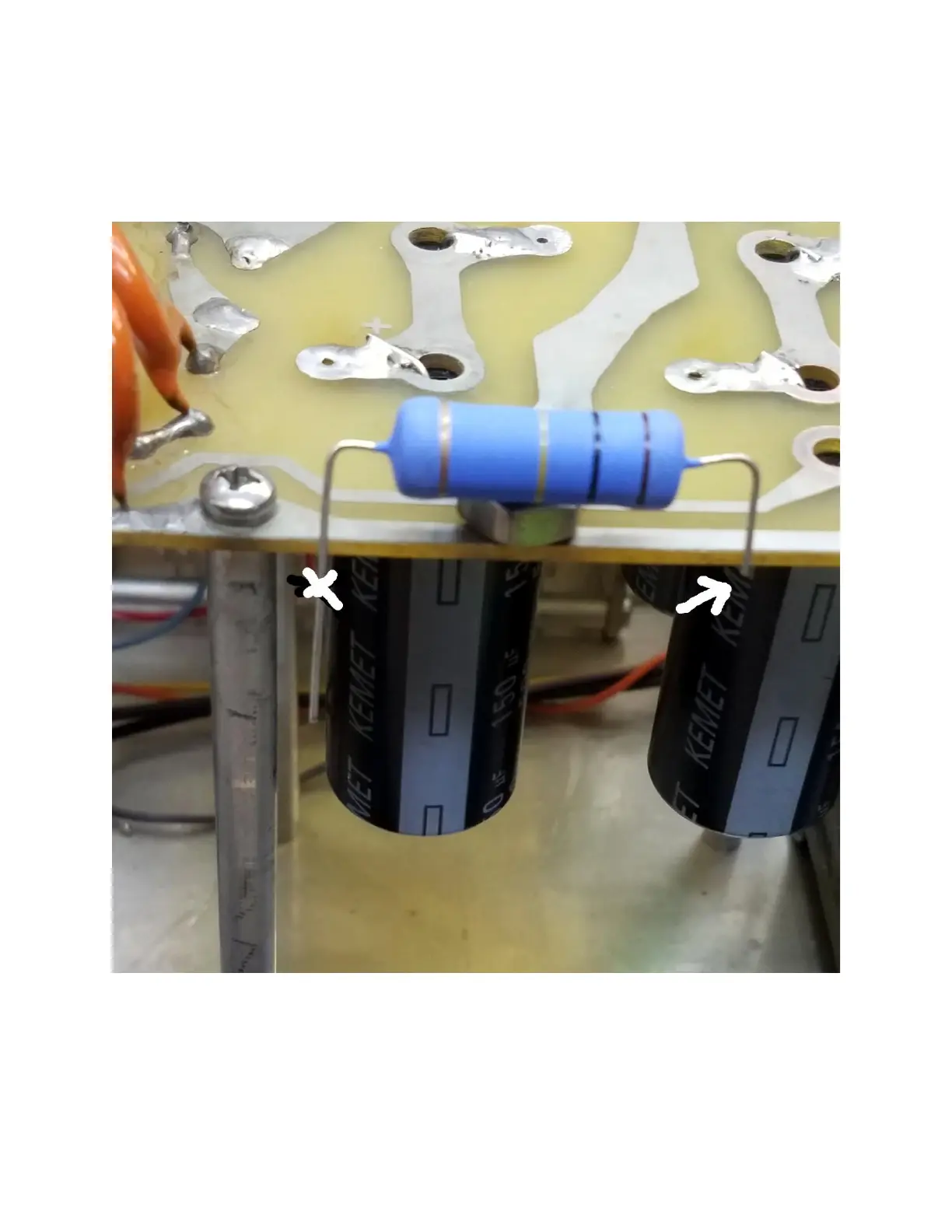

Figure 38 Cut and preform leads
Cut leads to proper lengths.
