Install new parts. Watch for shorts or accidental close contact. This is high voltage.

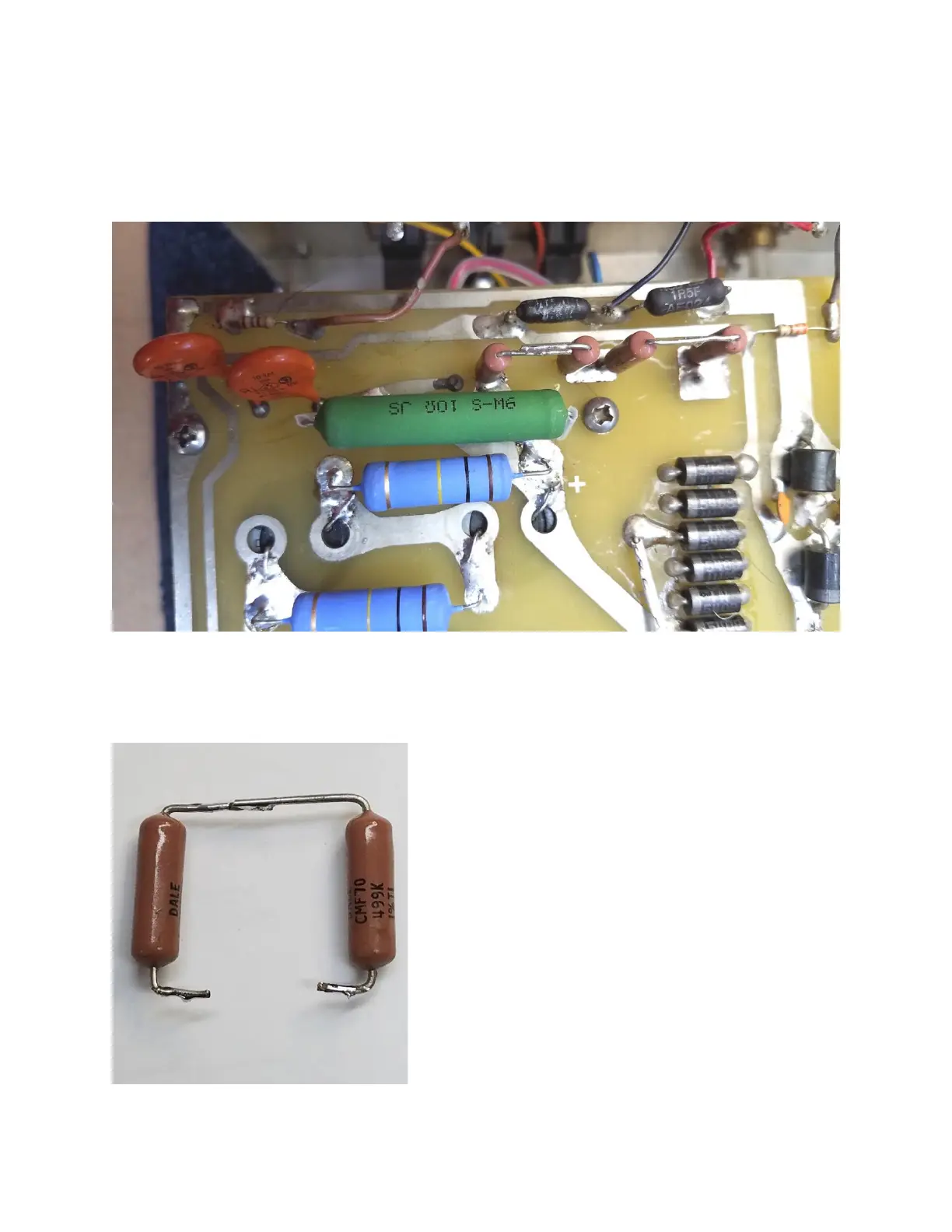

Figure 36 install new PS parts
Most parts need preformed or prepared lead lengths and bends. See the following suggestions:
(Some kits use two 1M ohm, instead of four 499k. The 1M fit normally. The substitution is
necessary because of supplier parts shortages.)
Figure 37 Pre-form and pre-tin leads
