Ametek JOFRA ATC-125 A Service Manual
4
of 1
of 1 rating
89 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
74
18-09-2007
122770
06
3.3

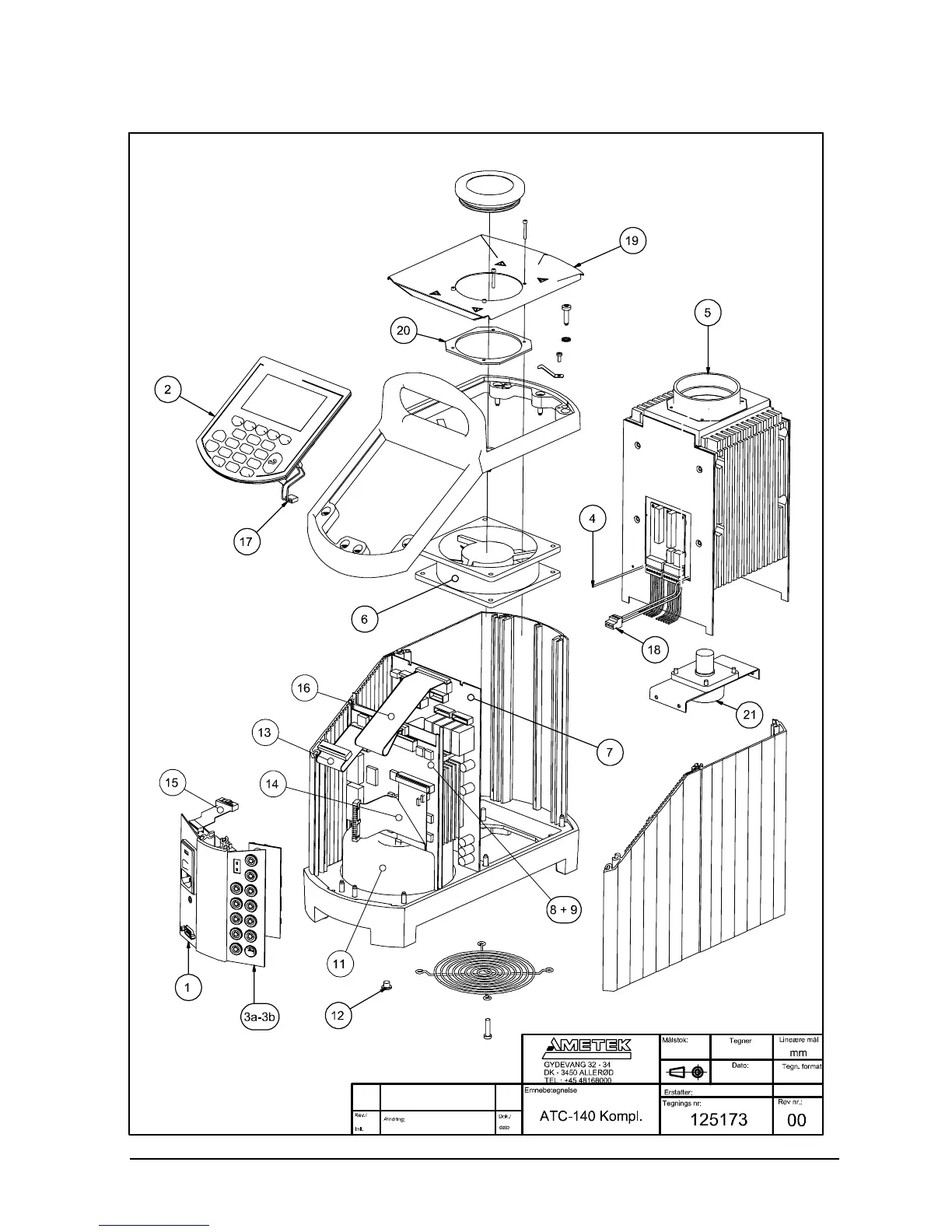

Exploded View – ATC-140 A/B
(0,35:1)
JRL
03-01-2005
A3
73
75
Table of Contents
Default Chapter
1
Service Manual
1
Table of Contents
3
1 General
5
Introduction
5
Technical Assistance
6
Safety Instructions
7
Adjusting and Calibrating the Instrument
8
2 Repairs
9
Service Menu
9
Service Main Menu
10
Service Power Menu
11
Service Input Menu
12
Service Output Menu
15
Service Keyboard Menu
16
Service Display Menu
16
Trouble Shooting
17
Supplies
35
Oil Problems
35
Replacement of Spare Parts
37
DIP-Switch Settings
59
Configuring the Power PCB for ATC-320 A/B (Version 1)
60
Configuring the Power PCB for ATC-320 A/B (Version 2)
61
Configuring the Power PCB for ATC-650 A/B (Version 1)
61
Adjusting and Testing Pcb's
61
Current Limiter for ATC-140/155/156/157 A/B
61
MVI Circuit for ATC-250/320/650 A/B
62
3 Spare Parts and Drawings
64
Spare Parts
64
Exploded View - ATC-125 A/B
73
Exploded View - ATC-140 A/B
74
Exploded View - ATC-155 A/B
75
Exploded View - ATC-156 A/B
76
Exploded View - ATC-157 A/B
77
Exploded View - ATC-250 A/B
78
Exploded View - ATC-320/650 A/B
79
Wiring Diagram - ATC-125 a
80
Wiring Diagram - ATC-125 B
81
Wiring Diagram - ATC-155 a
82
Wiring Diagram - ATC-155 B
83
Wiring Diagram - ATC-140/156 a
84
Wiring Diagram - ATC-140/156 B
85
Wiring Diagram - ATC-157 a
86
Wiring Diagram - ATC-157 B
87
Wiring Diagram - ATC-250/320/650 a
88
Wiring Diagram - ATC-250/320/650 B
89
