1) 120V and 208V Output

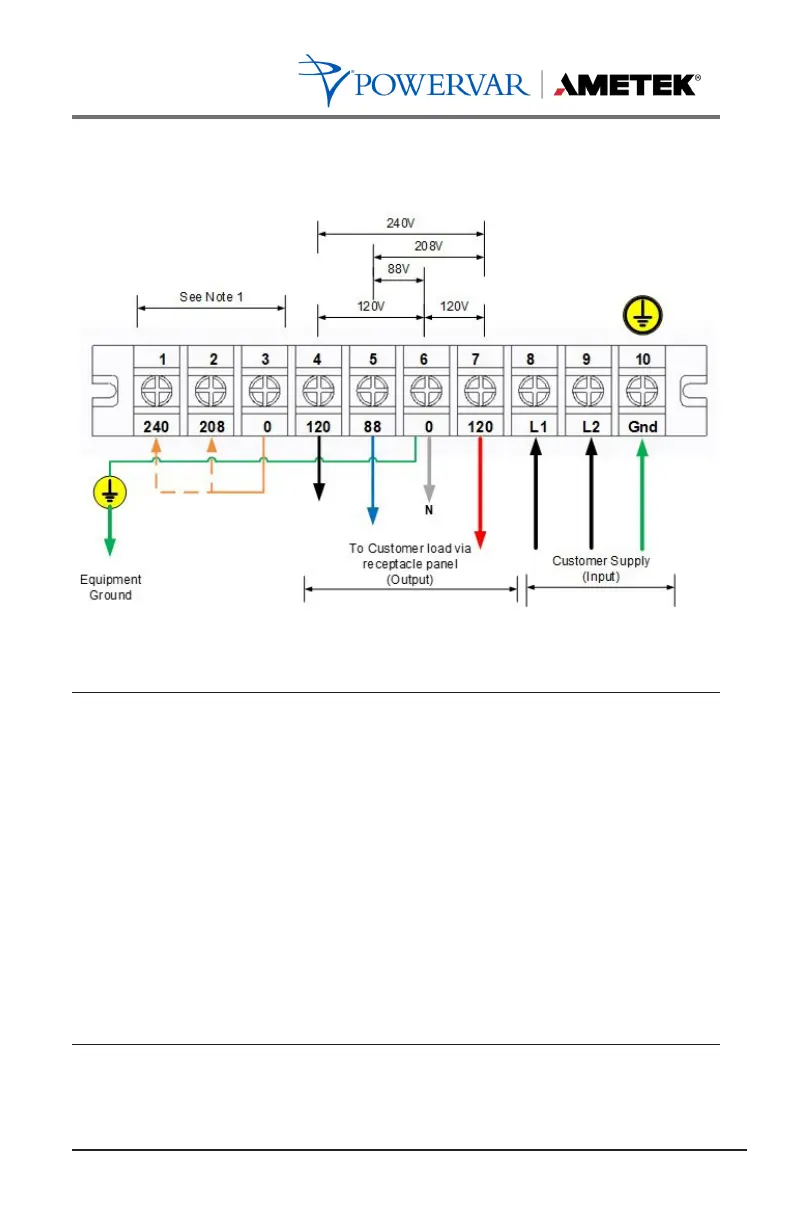

Figure 1: Output wiring – 120V & 208V

NOTE 1: Static Switch Output (SSO) Tap Selection must match

expected output voltage. Install a jumper between 0-208V

or 0-240V.

NOTE 2: 208 is obtained by using the 120 and 88 terminals.

NOTE 3: Make sure that the wires are connected tightly to the

terminals.

NOTE 4: Install the output breaker between the output terminal and

the load. The breaker should be qualified with leakage

current protection if necessary.
