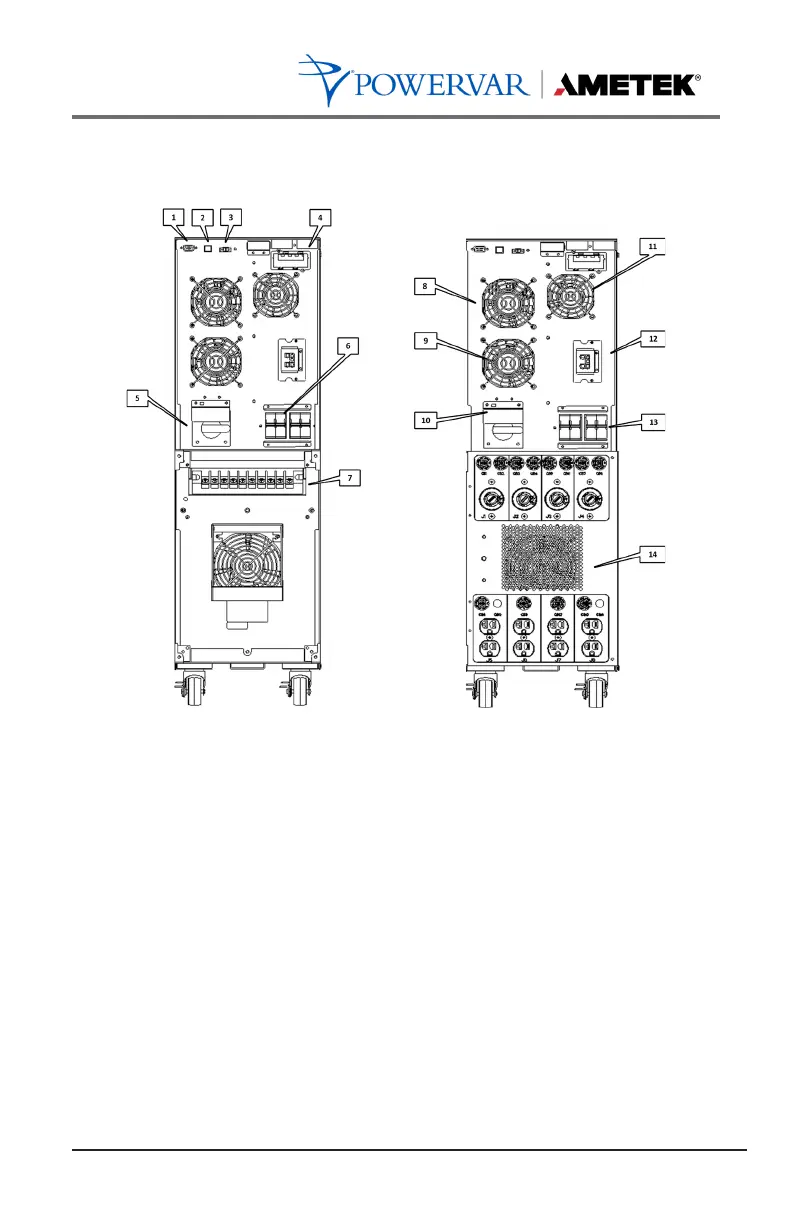

3.0 UPS PANEL LAYOUT
1. RS-232 communications port
2. USB communications port
3. Emergency power off connector (EPO)
4. Intelligent pocket
5. Maintenance bypass switch
6. Input circuit breaker
7. Input / output terminal block connections
8. Power stage cooling fan
9. Power stage cooling fan
10. Maintenance bypass cover plate
11. Charger cooling fan
12. External battery cabinet connection
13. Battery circuit breaker
14. Isolation transformer cooling fan
