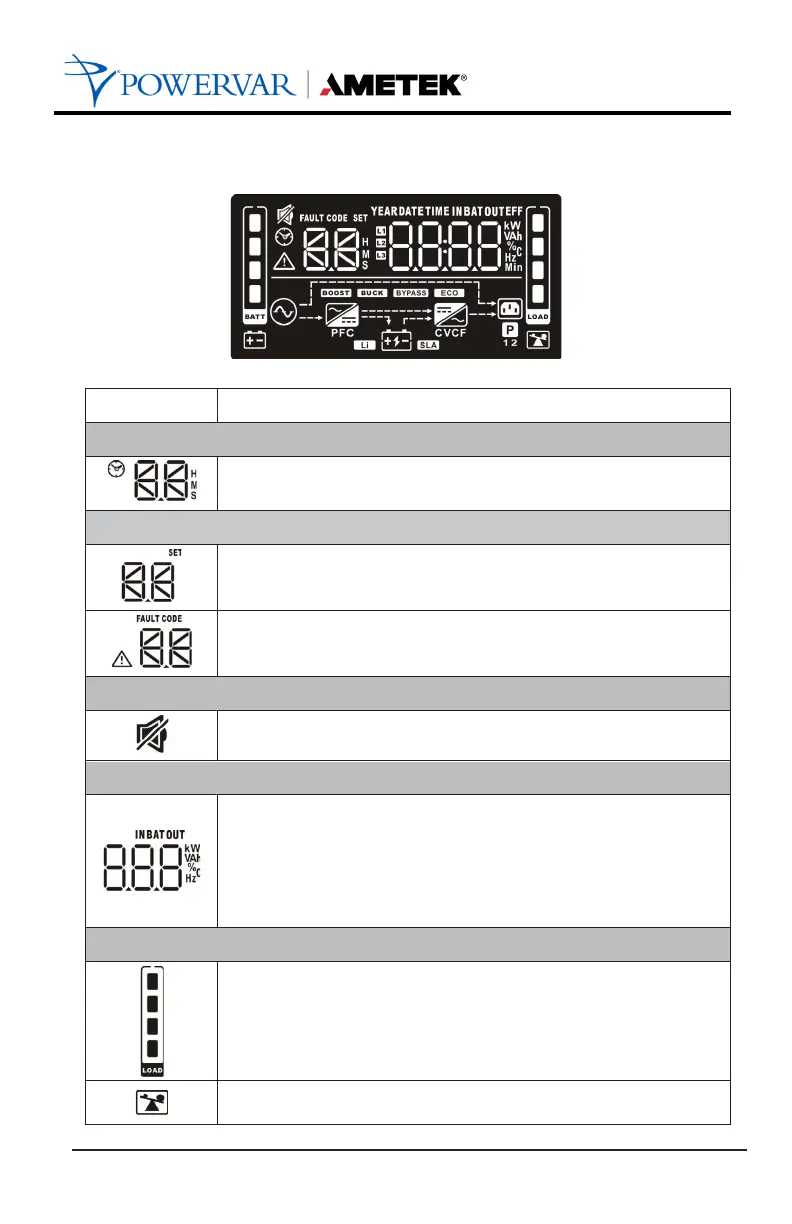

3.2 LCD Panel
Display Function
Backup time information
Indicates the estimated backup time.
H: hours, M: minute, S: second.
Configuration and fault information
Indicates the configuration items, and the configuration items
are listed in detail in section 3-5.
Indicates the warning and fault codes, and the codes are listed
in detail in section 3-7 and 3-8.
Mute operation
Indicates that the UPS alarm is disabled.
Input, Battery, Temperature, Output & Load information
Indicate the input voltage, input frequency, input current,
battery voltage, battery current, battery capacity, ambient
temperature, output voltage, output frequency, load current and
load percent.
k: kilo, W: watt, V: voltage, A: ampere, %: percent, ℃:
centigrade degree, Hz: frequency
Load information
Indicates the load level by 0-24%, 25-49%, 50-74% and 75-
100%.
Indicates overload.
