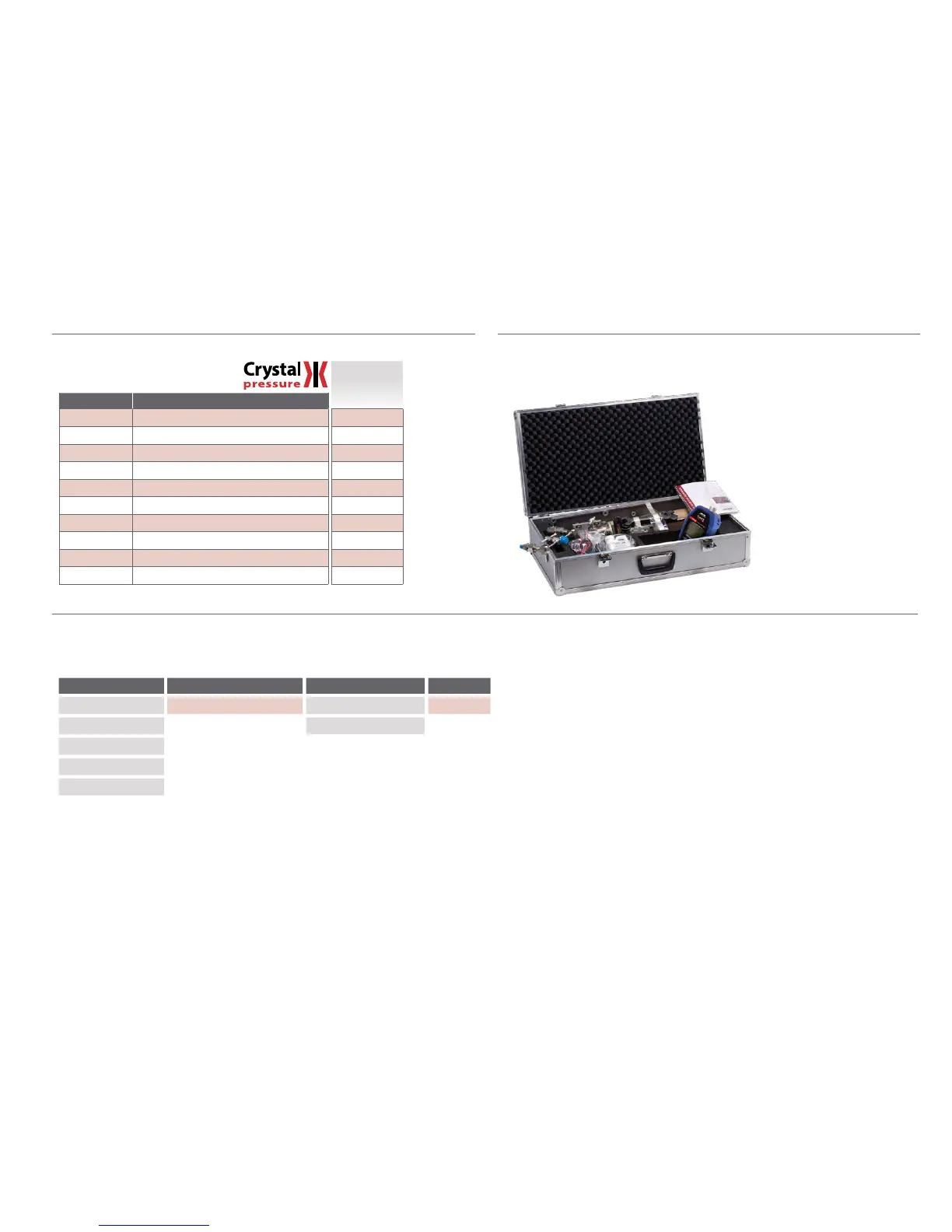

Parts Included with Pump Systems for Crystal Reference Indicators
System F
FOV and FWV
(T-1-CPF)
Part Number Description
5255 CPF Male to 15/16-20 Male Adapter
(2
)
MPF15K-1/4FPT CPF Female to 1/4" NPT Female Fitting
MPF-1/4BSPF CPF to 1/4" BSP Female Fitting
MPF-1/8MPT
*
1/8" MPT Fitting (for 30 Series Calibrator)
(2
)
60R120 1/4" Bonded Seals
(
5
)
1351
*
Test Leads; Red & Black, including clips
5249
Protective Vinyl Cap
(
4
)
60I104 Pack Tape (1 roll)
124004 Shoulder Strap
124304 Aluminum Carrying Case
*
The MPF-1/8MPT ttings and 1351 Test Leads are included only with Pump Systems for the 30 Series Calibrator.
Ordering a Pump System
Any Type T Series Pump System may be ordered with or without a reference indicator. The table below provides an explanation of the Pump System ordering
scheme when ordering a system without an indicator. For details on ordering the Pump Systems with an indicator, see the indicator datasheet.
Reference Indicator Reference Indicator Included Pump System Liquid
nVision .........NV No ... -NONE System F (T-1-CPF) ... -FOV Drained ...-E
30 Series ........ IS30 System F (T-1-CPF) ... -FWV
XP2i ............XP2i
m1 ..............M1
HPC40 Series ...HPC40
X
SAMPLE PART NUMBERS
NV-NONE-FOV-E .......System F pump system (for nVision) drained of uid, for use with oil.
IS30-NONE-FWV-E ....System F pump system (for 30 Series) drained of uid, for use with water.
15KPSIXP2i-FWV-E ...System F pump system, drained, for use with water, with a 15 000 psi XP2i gauge included.
Hydraulic Fluid
Type T Series Pump Systems are only available delivered empty. You will still need to specify what uid
type you are going to use (for example; FOV for Oil or FWV for Water).
