NGX Mini 2 Jukebox 43 22022623 Rev B
Electronic Components

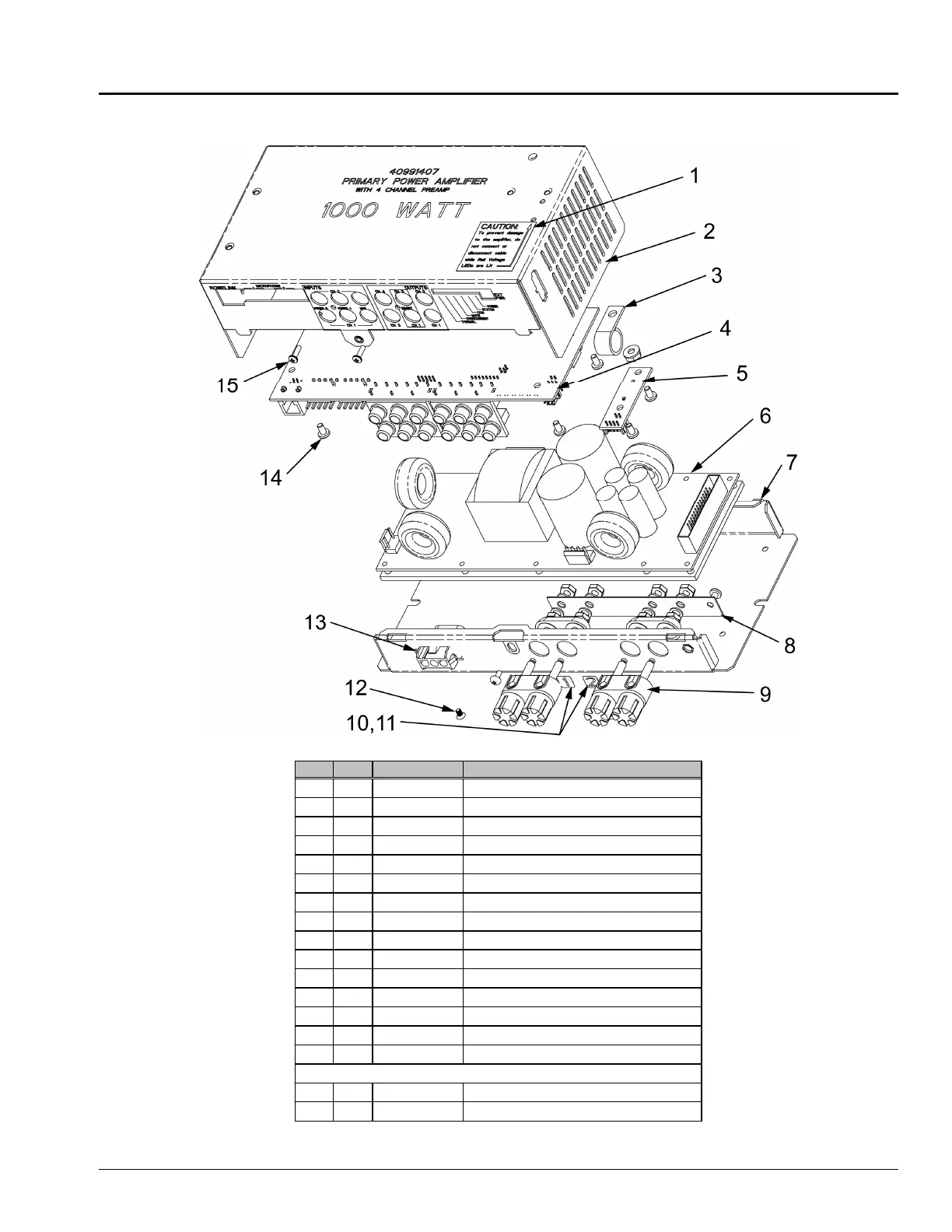

Amplifier Assembly 40991407
Ref.
Qty
Part
#
Description
1
1
22167723
Label
–
Caution
2
1
61200311
Amplifier Cover
3
1
70093401
Clamp
–
Cable
4
1
61200706
CBA
–
4
-
Channel Preamplifier
5
1
22337501
CBA
–
Rail Voltage LEDs
6
1
40983903
1000
-
Watt Amplifier
7
1
61200407
Amplifier Base
8
1
22337
201
CBA
–
Output Decoupler
9
2
34104201
Dual Binding Post
10
1
22167717
Label
–
“1”
11
1
22167718
Label
–
“2”
12
6
28277904
#M3x5 Phil Flat Head Screw
13
1
34104404
Amp Power Harness
14
9
80342304
#6
-
32 1/4” Pan Head Screw
15
2
89281606
#4
-
24 x 3/8
Pan Head Screw
Components not shown in diagram:
1
34104608
Audio In Harness
1
34104504
Audio Out Harness
