AMI NGX MINI 2 - Electronic Components

NGX Mini 2 Jukebox 41 22022623 Rev B
Electronic Components

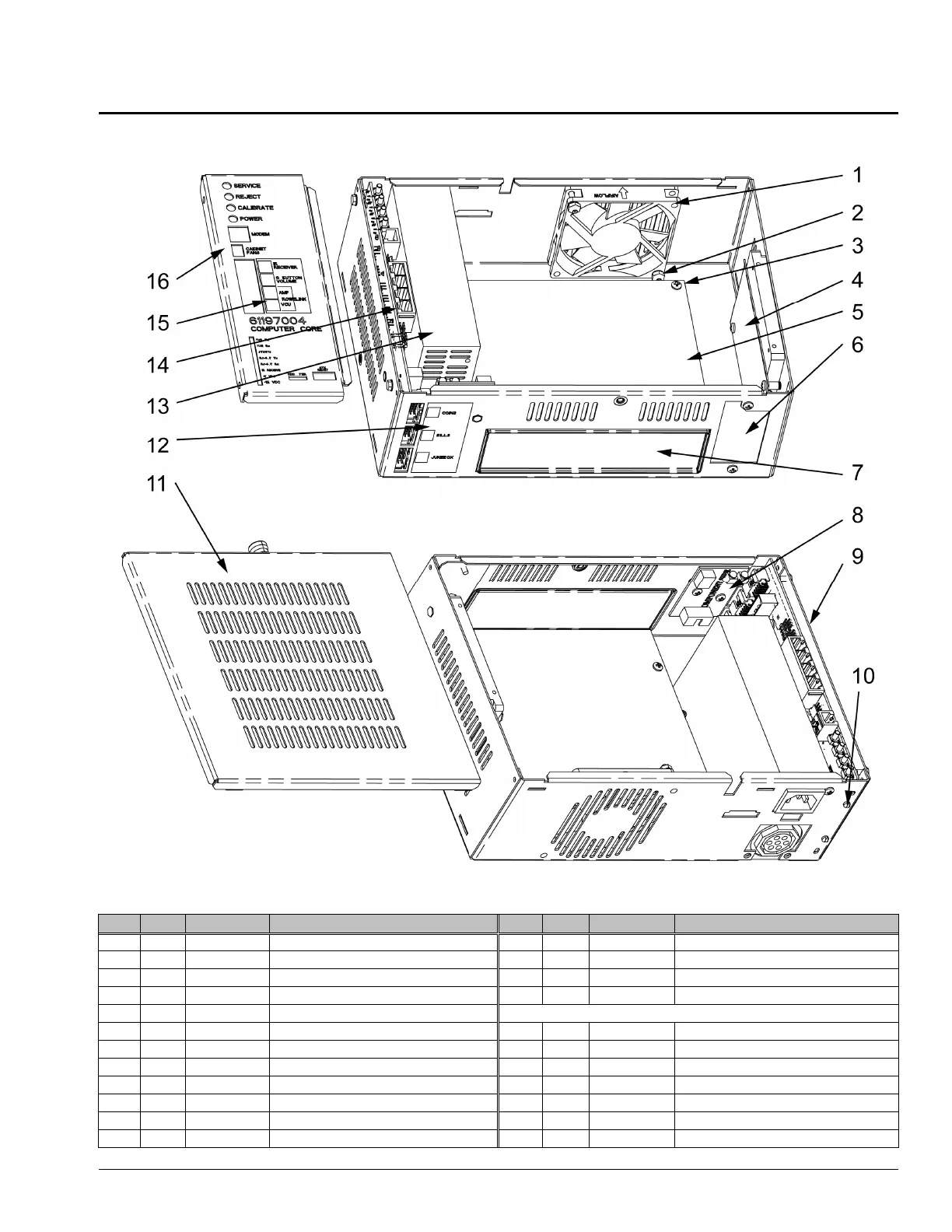

Computer Core Assembly 61197004
Ref.
Qty.
Part
#
Description
Ref.
Qty.
Part
#
Description
1
1
34039110
Fan
–
Chassis Cooling w/Tach
13
1
40952205
Power Supply
2
2
87842300
Nut
-
#6
-
32 Keps Hex
14
1
61196903
CBA
–
I/O Interface
3
15
80352304
#6
-
32x1/4 PPHMS
15
1
22167705
L
abel
–
Jukebox Connections
4
1
34101201
Bracket
–
Hard Drive Mounting
16
1
34101103
Cover
–
Small
5
1
40924214
Single Bd Computer Assy (B75B)
Components not shown above
6
1
22328802
Bracket
–
PCI Modem Blockout
1
22132269
Harness Assy
–
Com I/O
7
1
40
922699
I/O Shield
(B75B)
1
22132270
Harness Assy
–
Power On/Reset
8
1
34052405
CBA
–
Power On/Reset
1
2213228
2
Cable
–
SATA Data
9
1
91197103
Housing
–
Core Computer
10
1
22137302
Guide
–
Card
11
1
40983503
Cover
-
Top
Ref
1
22219001
Hard Dri
ve
–
System, US
12
1
22167704
Label
–
Computer Connections
Ref
1
22219002
Hard Drive
–
System,
Canada
