EBS 10000 IL 910101-000109 / 09.17 Page 16 of 24
Extracting the Screen
Before handling the screen, carefully read the safety instructions in chapter 2 of this document and make sure that all the workers at
the filtration site are fully aware of and comply with, these and any other local safety instructions.
Please note that the screen is heavy and in order to avoid damage and injury it should be lifted only with Amiad’s standard Extractor
and a standard lifting device operated by an authorized operator.

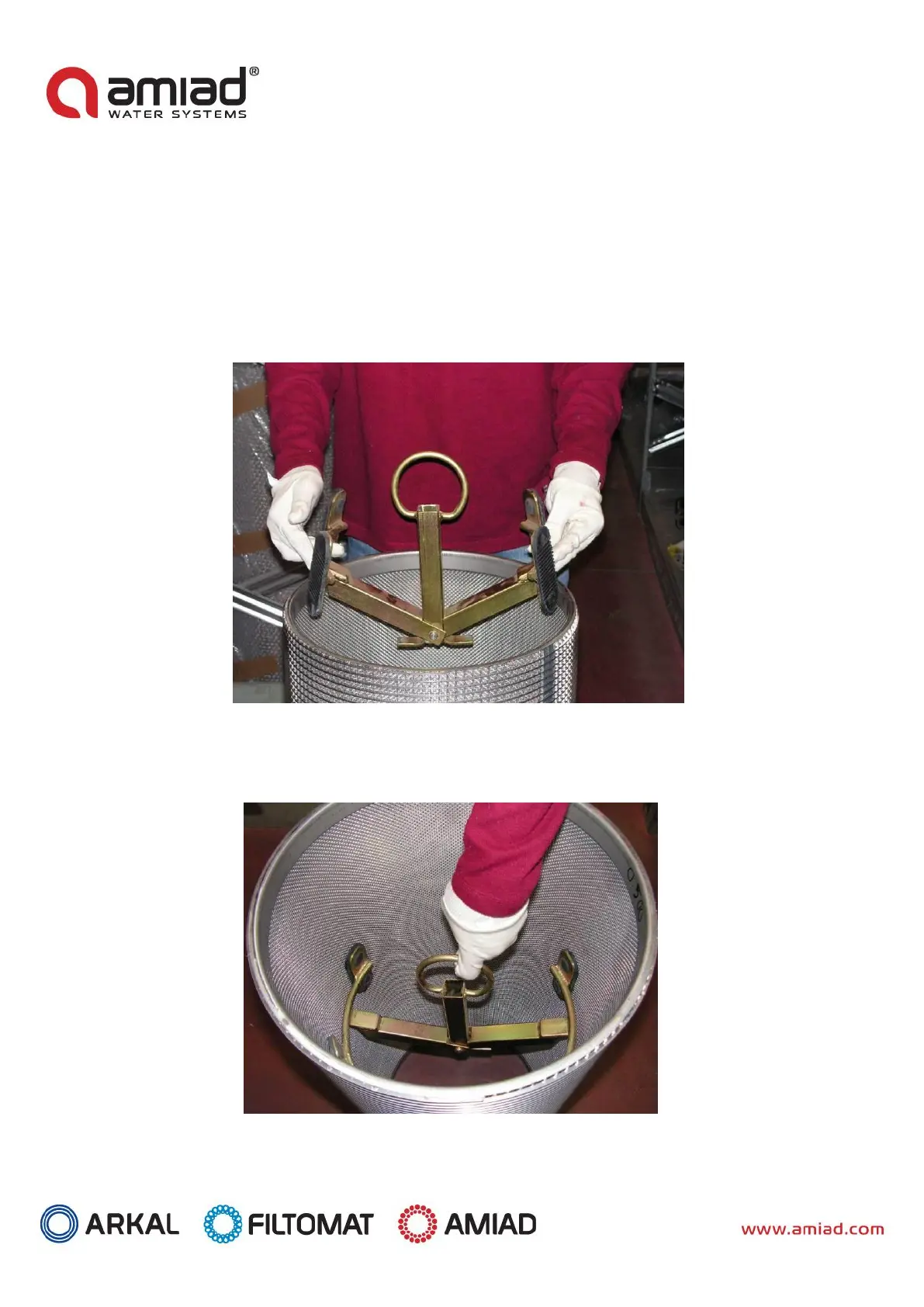

1. Clean and dry the rubber pads on the Extractor
2. Fold the Extractor upwards (Figure 1).
Figure 1
3. Insert the Extractor into the screen, about a quarter from top. Make sure that the extractor cushions do not touch the stitch
found along the screen interior.
4. Pull the extractor up so that it is firmly set against the inside wall of the Screen (Figure 2)
Figure 2:
5. Attach a lifting device to the ring on the Extractor, and extract. Never lift the screen above people or equipment.
