10.1 Battery
NOTE Risk of cable fire or short circuit.
Keep to the proper sequence when removing or installing the terminal
connections.
The battery charge level can be read in the multifunction display unit.
● Ignition on = battery voltage. The battery voltage should not fall below 10 volts
while starting, otherwise the battery must be charged.
● Machine running = alternator charging voltage. The voltage should lie in a range
of from 13 to 14.5 volts.
10.1.1 Replacing the battery
1 Loosen the (-) terminal and disconnect it (size13).
2 Loosen the (+) terminal and disconnect it (size10).
3 Loosen and remove the mounting bracket.

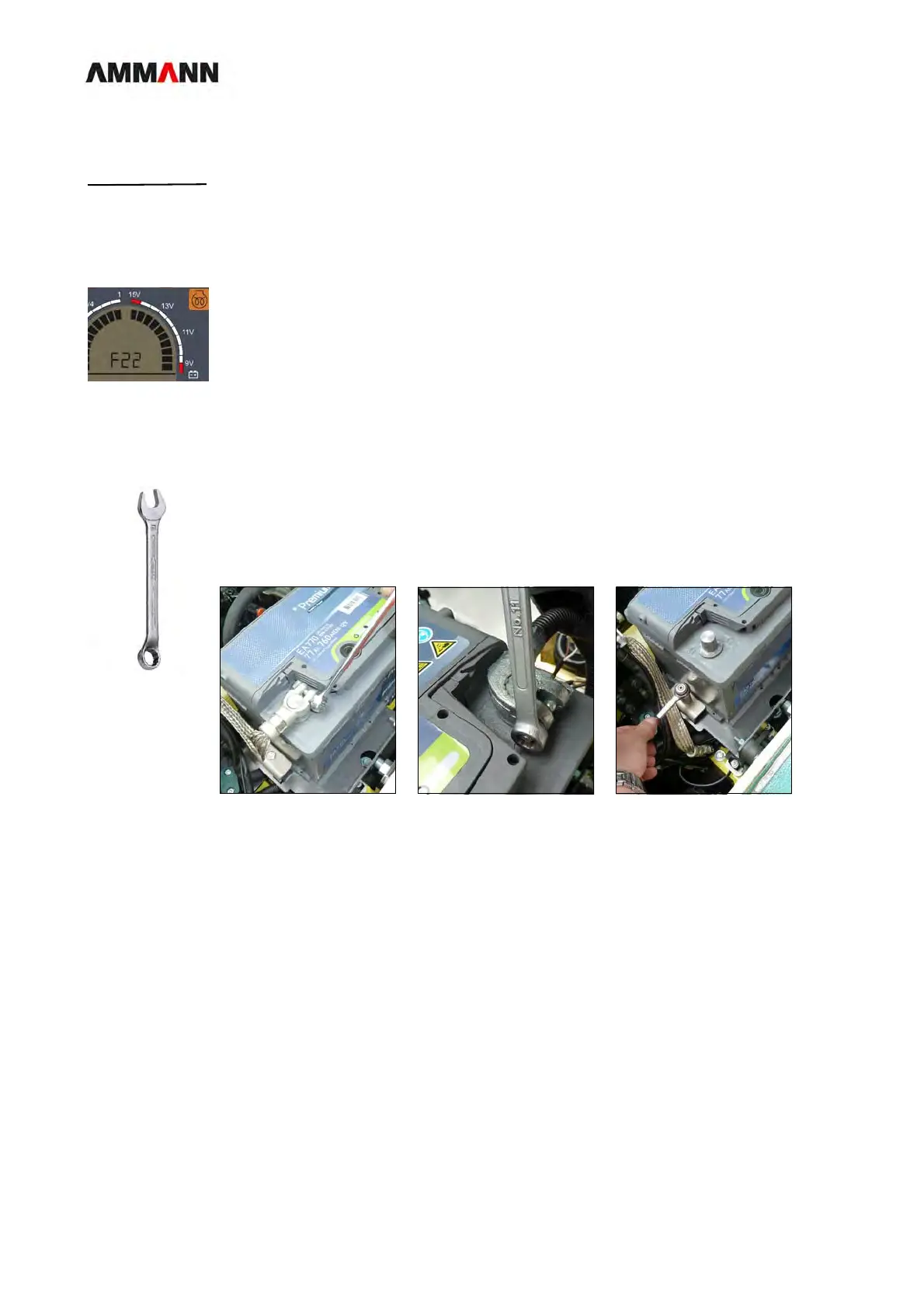

Fig. 10-1 Loosening the terminals
4 Lift the battery out of the engine compartment.
5 Set the new battery in place.
6 Connect the battery.
6.1 Begin with the (+) terminal.
