11. Disassembly of heater
Air-conditioning

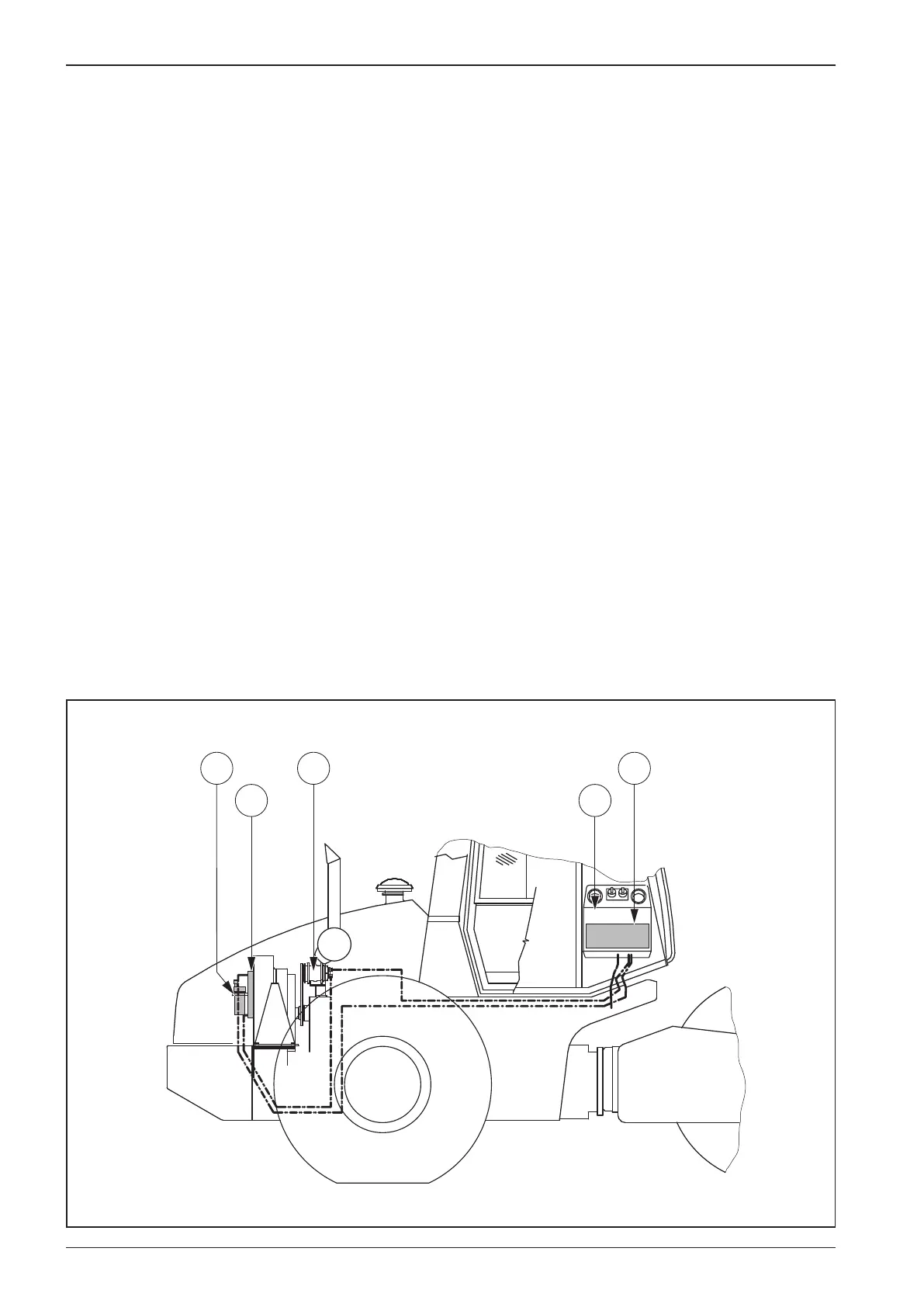

Heat is removed from evaporator (5) inside the cabin (low-pres-
sure loop) and delivered on the condenser (2), located in front of
the engine radiator (high-pressure loop). Compressor (1) sucks
cooling vapors from the evaporator and presses them to con-
denser (2). There the cooling vapors are condensed and ow
over dehydrating lter (3) to heat expanding valve (4). Valve 4
sprays liquid coolant to evaporator (5), where heat is absorbed
from the cabin, the liquid evaporates, and the vapors are sucked
in to the compressor.
Data:
Cooling power [kW] 3
Voltage [V] 24
Current [A] 6
Volume of air in evaporator [m
3
/h] 400
Volume of air in condenser [m
3
/h] 900
Coolant R 134a
Volume of coolant [kg] 0,95
High-pressure protection [MPa] 2,7
Low-pressure protection [MPa] 0,2
