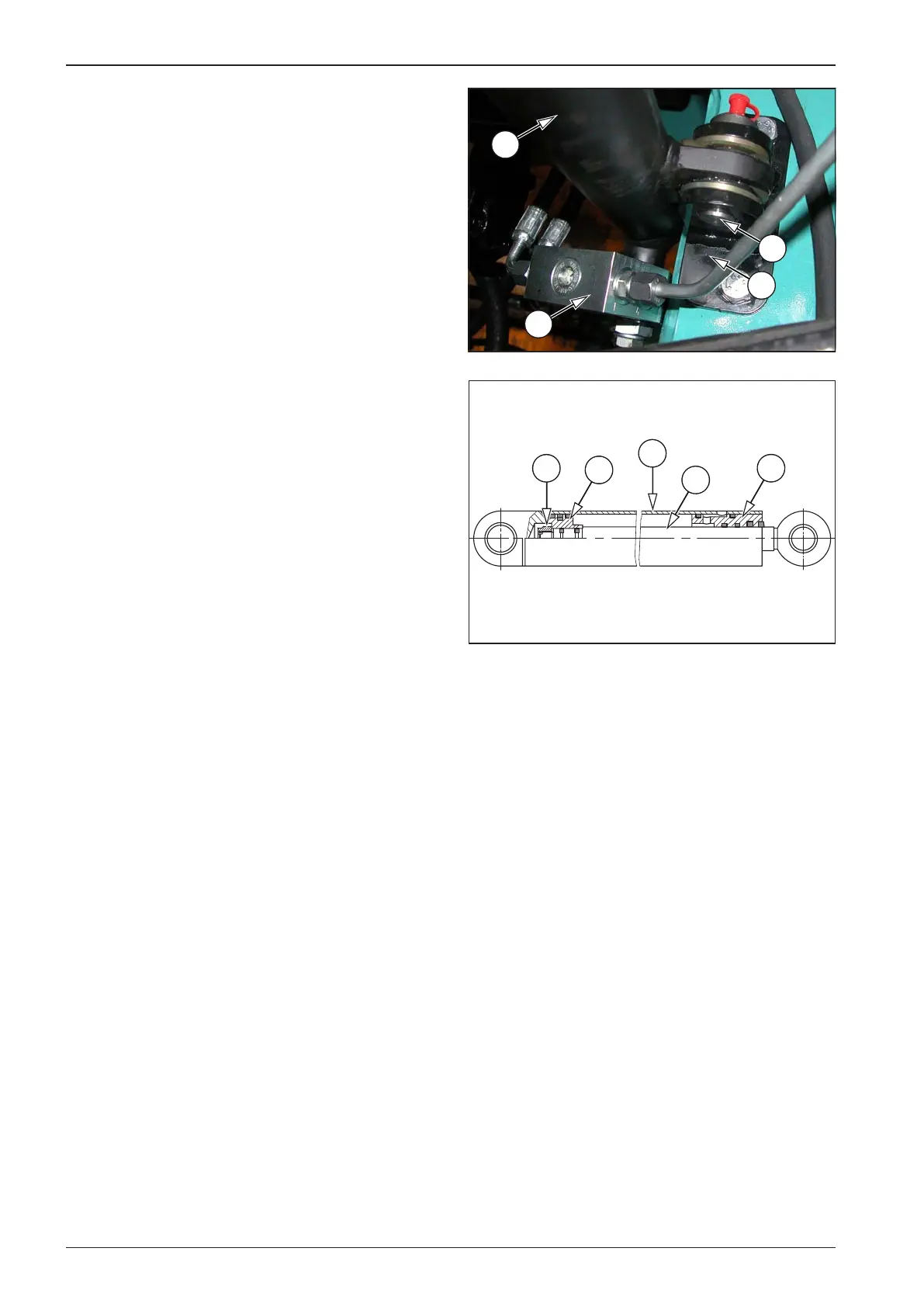

16. Removal of hydraulic motors
Removal of cabin hydraulic motor from equip-
ment
Lift cabin, support using xture No. 4, place receptacle under
the hydraulic motor, press piston rod in the cylinder, remove hy-
draulic motor (381-3-14) with bracket (381-3-5) from the equip-
ment, press out pin (381-3-4), remove hydraulic lock (381-3-17).
Removal of linear hydraulic motor – replacement
of seals
Place a receptacle under the hydraulic motor, plug openings.
Drill out safety pin from the face of the front lid (1) (bend lid 1
safety) depending on the type of the linear hydraulic motor. Us-
ing xture wrench No. 5, 6 (depending on the type of the linear
hydraulic motor) remove lid (1), slide piston rod (2) with piston
(3), remove nut (4) and the piston. Slide lid (1).
