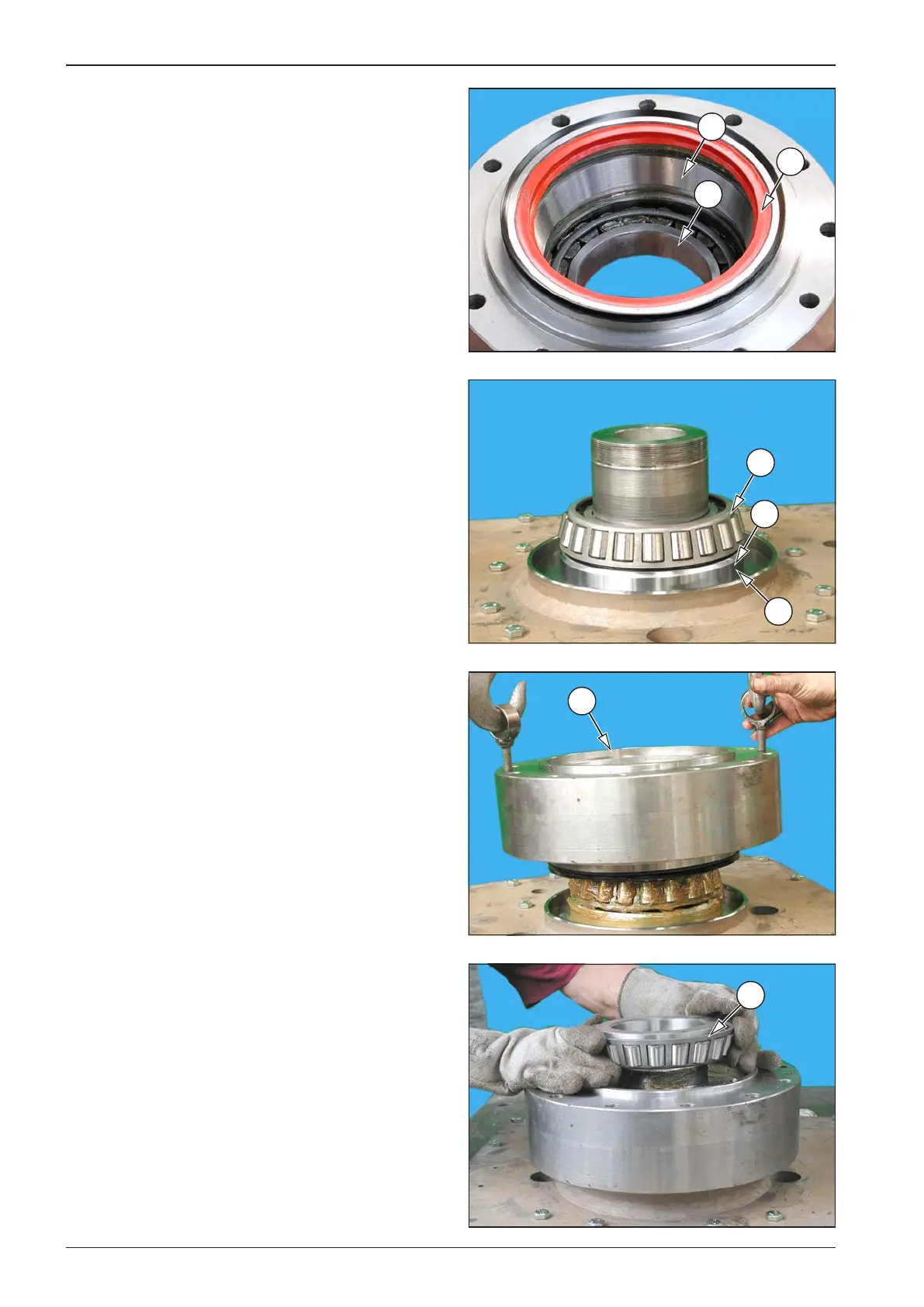

Vibration plate mounting
When mounting, follow the same procedure as when dismount-
ing in the reverse order.
Press on the bearing outer ring (1-28), turn, mount the outer
ring of another bearing, and press on the rubber seal (1-22) by
means of jig no. 4.
Mount (when replacing) the O-ring (10-17) and the ring (10-13)
preheated to 90 °C (194 °F) on the vibration plate shaft. Mount
the inner part of bearing (1-28) – preheat it to 90 ÷ 110 °C (194
÷ 230 °F).
Fill the bearings with the lubricating grease and mount the hub
(1-9).
Mount the inner part of bearing (1-28) – preheat it to 90 ÷
110 °C.
