63ASC 110
ASC554
5
ASC553
2
24
23
ASC530
ASC533
16
1
WORKSHOP MANUAL

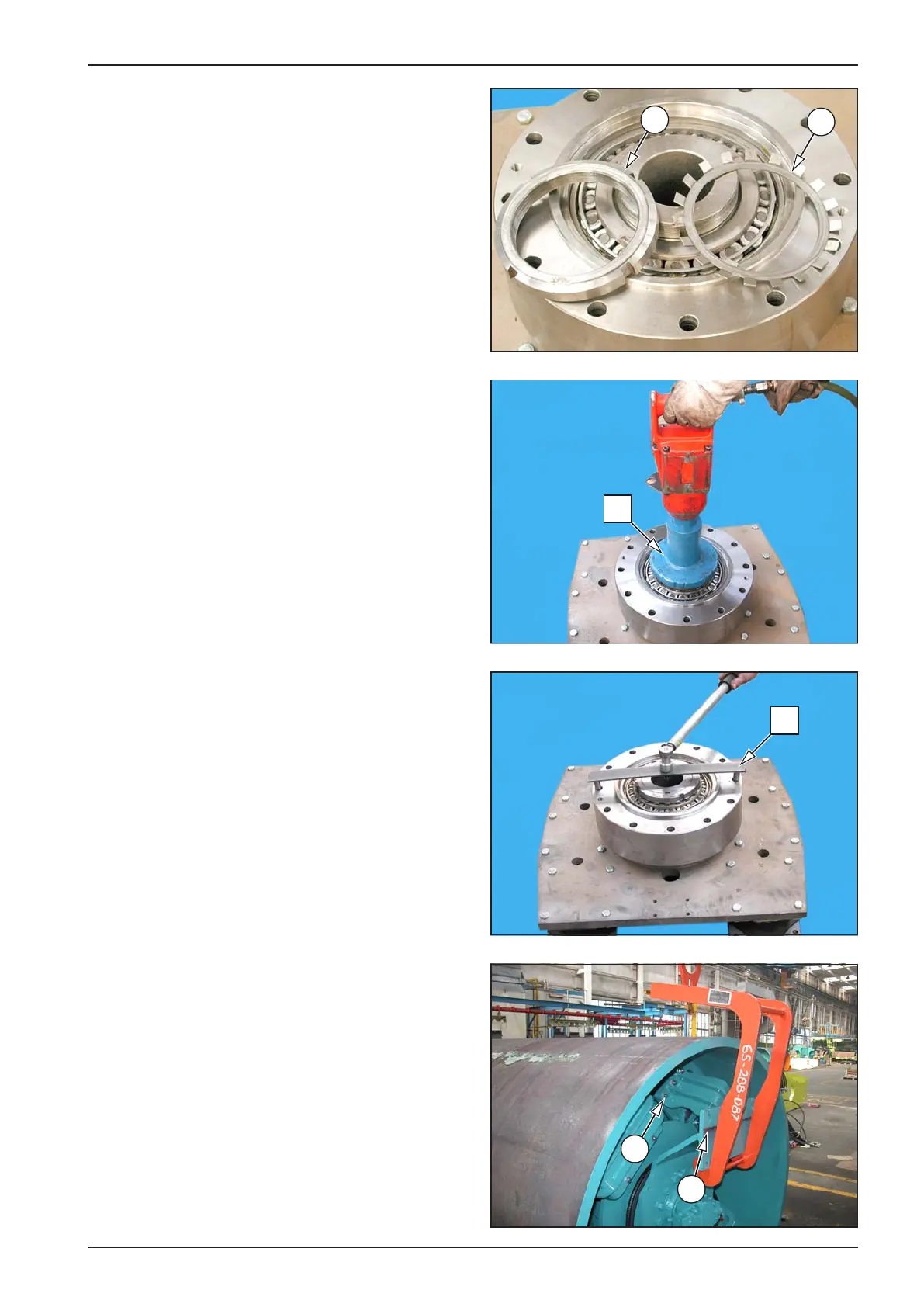

Mount the washer (10-24) and nut (10-23).
Tighten it using jig no. 2 (tap on the jig when tightening).
Check the nut tightening for a torque of 75 ÷ 80 Nm using jig
no. 5.
Right side dismounting
Turn the bracket (30-1) and hang it on the crane using jig no. 1.
Dismount the screws (30-16). After it has been unscrewed, re-
move the bracket.
