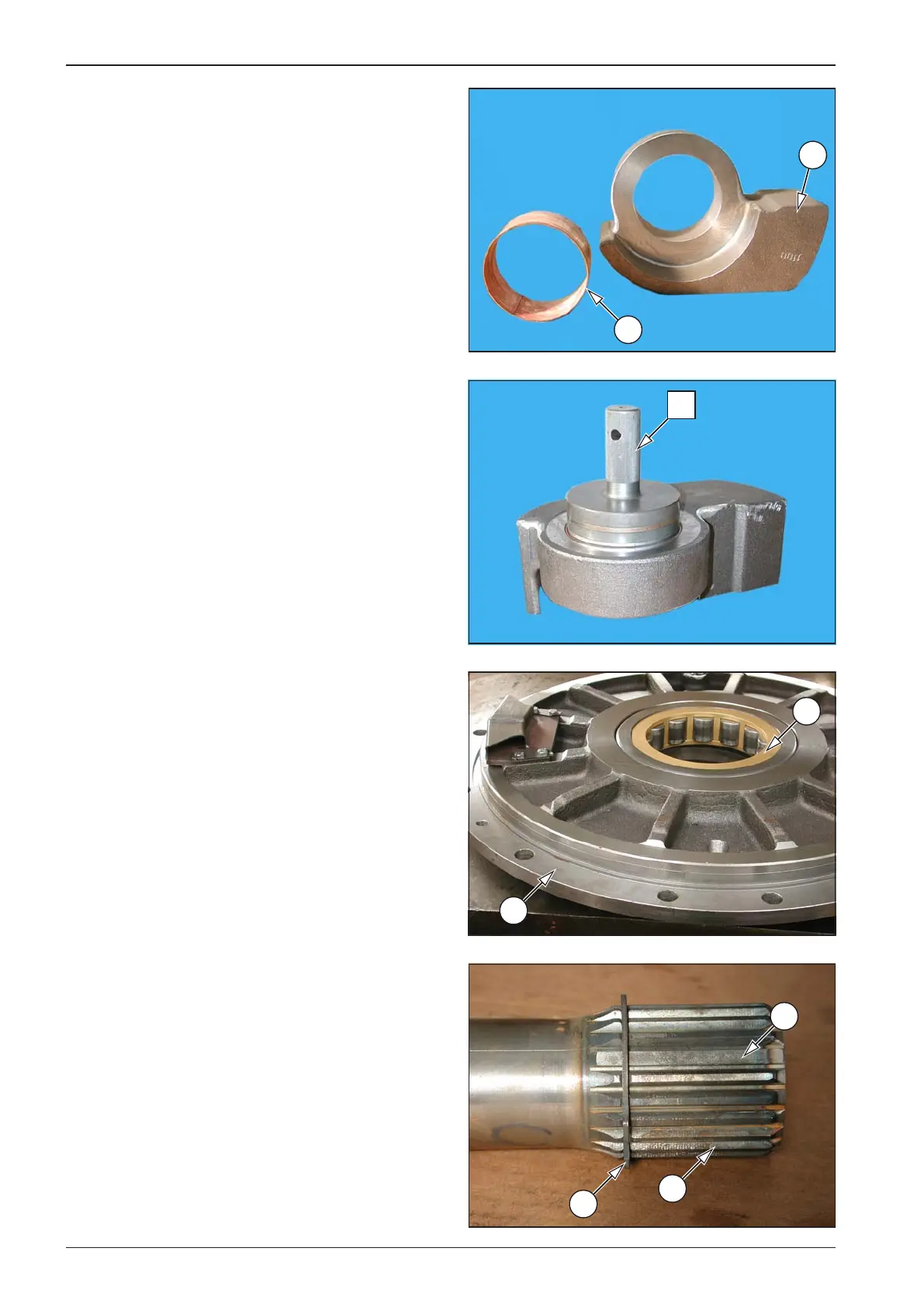

Press the bushing (20-10) into the cam (20-2) using jig no. 8.
Gauge the bushing using jig no. 8.
Other operations of the mounting for both sides of the drum
are identical; follow them in the order reverse to the order of
dismounting. When mounting the bearing outer rings (20-14)
into the covers (1-7), (1-8), and (1-10), observe the pairing with
the bearing inner rings!
Mount the retaining ring (20-17). When mounting the connect-
ing shaft (20-7), it is necessary to observe the right position of
the vibrators against each other – this is secured by the groove
“A” on both ends of the shaft facing the pins (20-21).
