Ammann Cummins ASC110 - Coupling and Clutch Removal;Assembly

94 ASC 110
ASC267
86
ASC270
B
T2
86
T1
ASC269
T1
A
ASC268

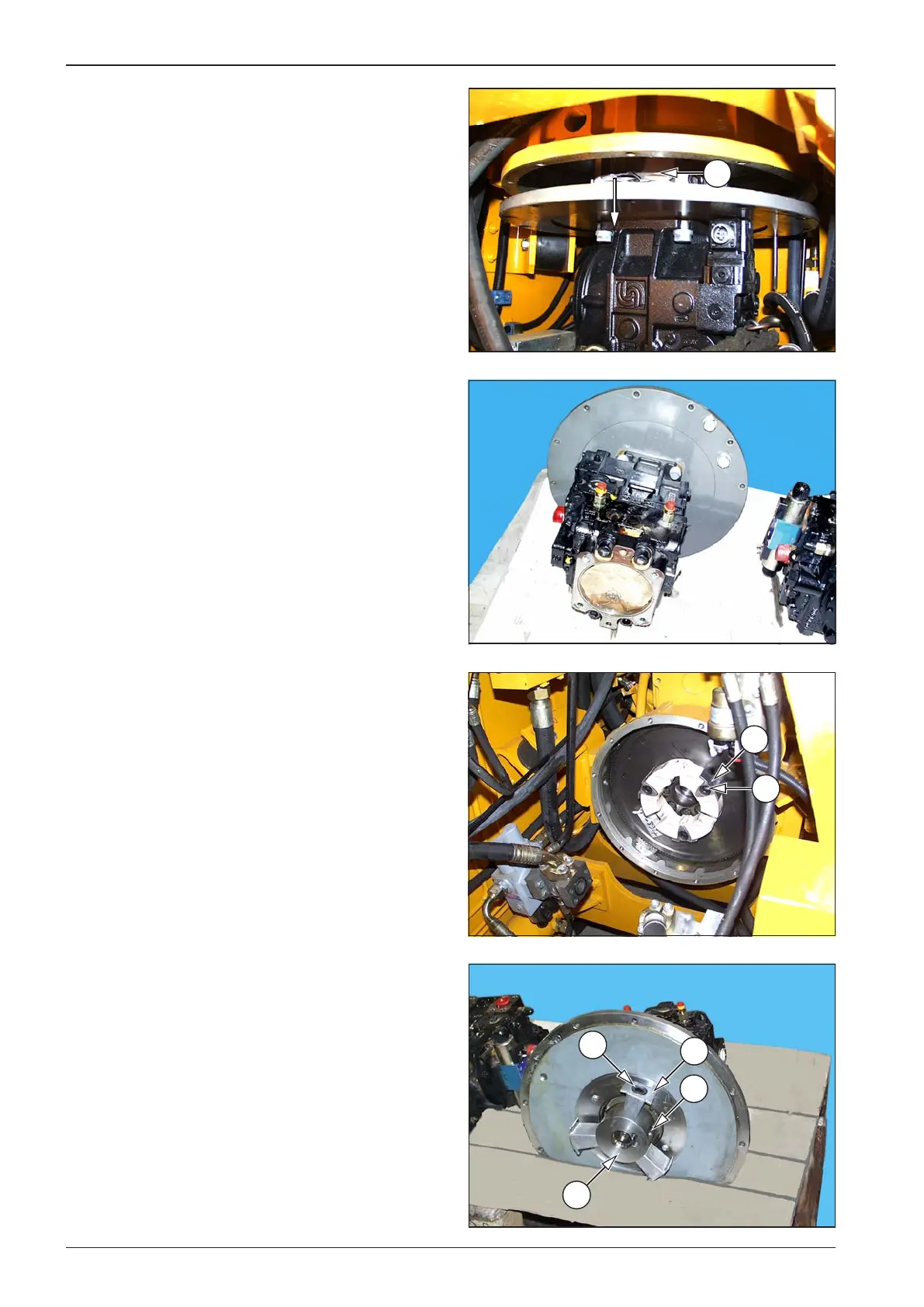

7. Removal of pumps, cento clutch
Slide out of clutch (106-86).
Set hydro generator with ange aside.
Coupling removal:
Coupling consists of these parts: segment “A”, segment “B”, elas-
tic part. Remove bolts T1 of “A“ segment.
Remove bolts T2, pull down the coupling segment (106-86) from
the hydraulic generator shaft, remove bolts T1 and segment „B“.
