Clutch
Assembly clutch

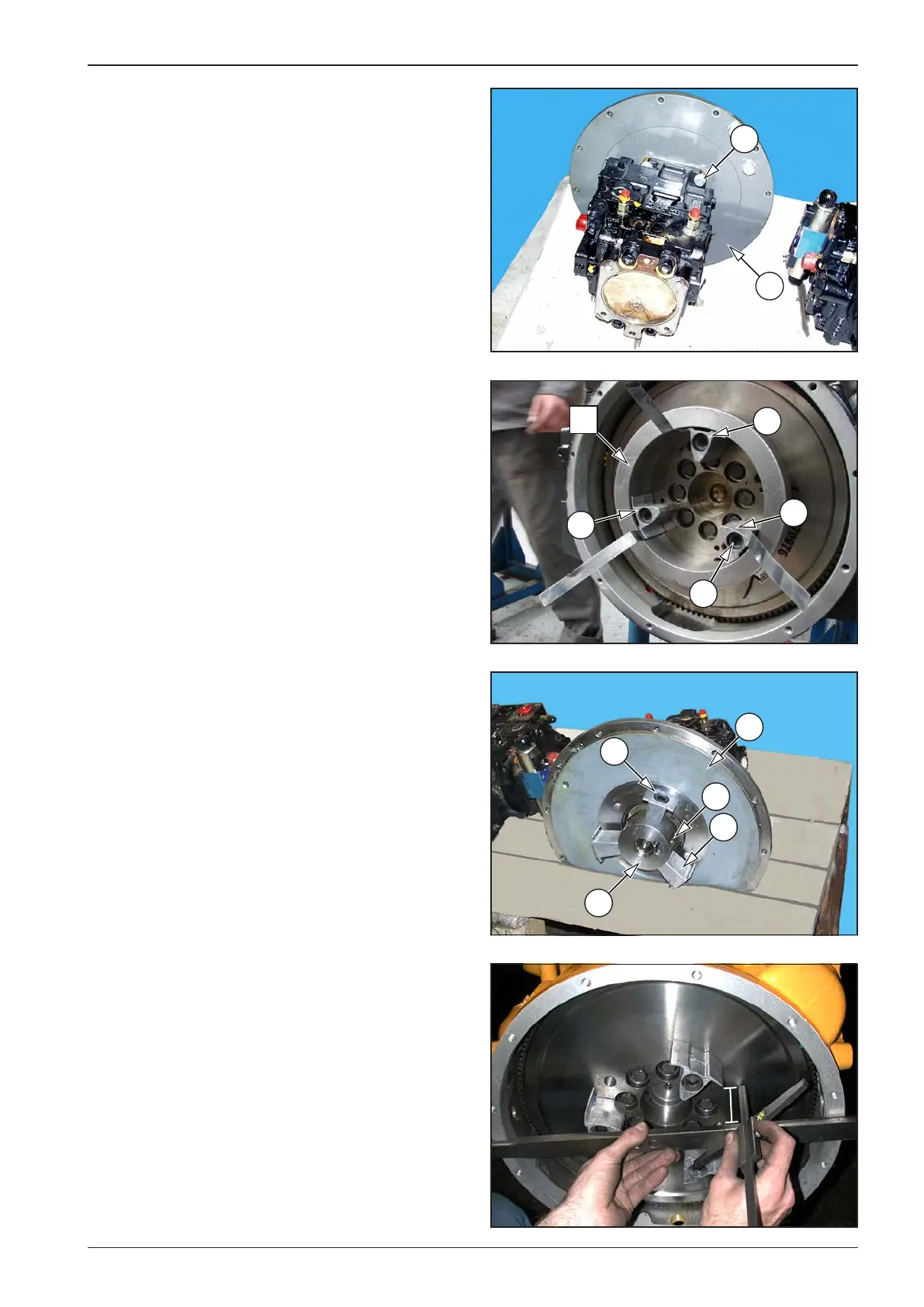

Install „A“ segments to the balance-wheel. Center the segments
using xture No. 2. Lubricate T1 bolts under the head with
grease, tighten them by means of the torque as given in the ta-
ble. Check their position after tightening.
Fix ange (106-12) on the ange of the travel hydraulic genera-
tor and coupling (106-86) with „B“ segments. Tighten T2 bolts of
coupling (106-86) by means of the torque as given in the table,
see next page.
When installing coupling (106-86), dene axial clearance be-
tween the balance-wheel face and the elastic element of clutch.
Measure the distance „a“ from the face of the balance-wheel
box.
Remove bolts (106-55), and ange (106-12).
