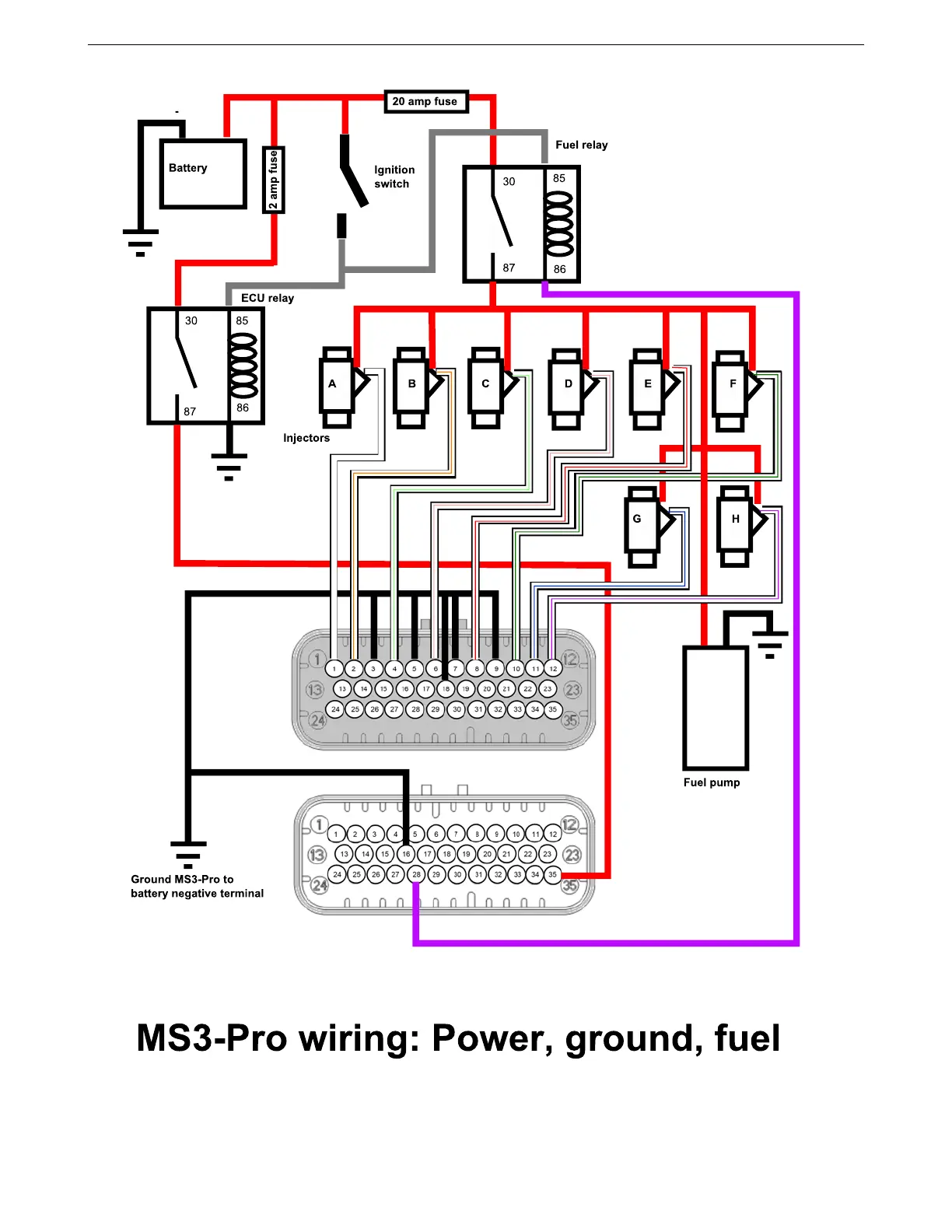

4.2 Wiring diagram 4 WIRING
The MS3Pro Ultimate also will need 12 volt constant power connected to pin 23 of the black connector. Use a 2
amp fuse. The keep alive power will allow the MS3Pro to save settings after the power feed on the white connector
is switched off.
