5.3 Ignition settings 5 SETTING UP A BASIC CONFIGURATION
Critical settings include:
• Spark Mode = Toothed Wheel
• Trigger Angle / Offset = 0

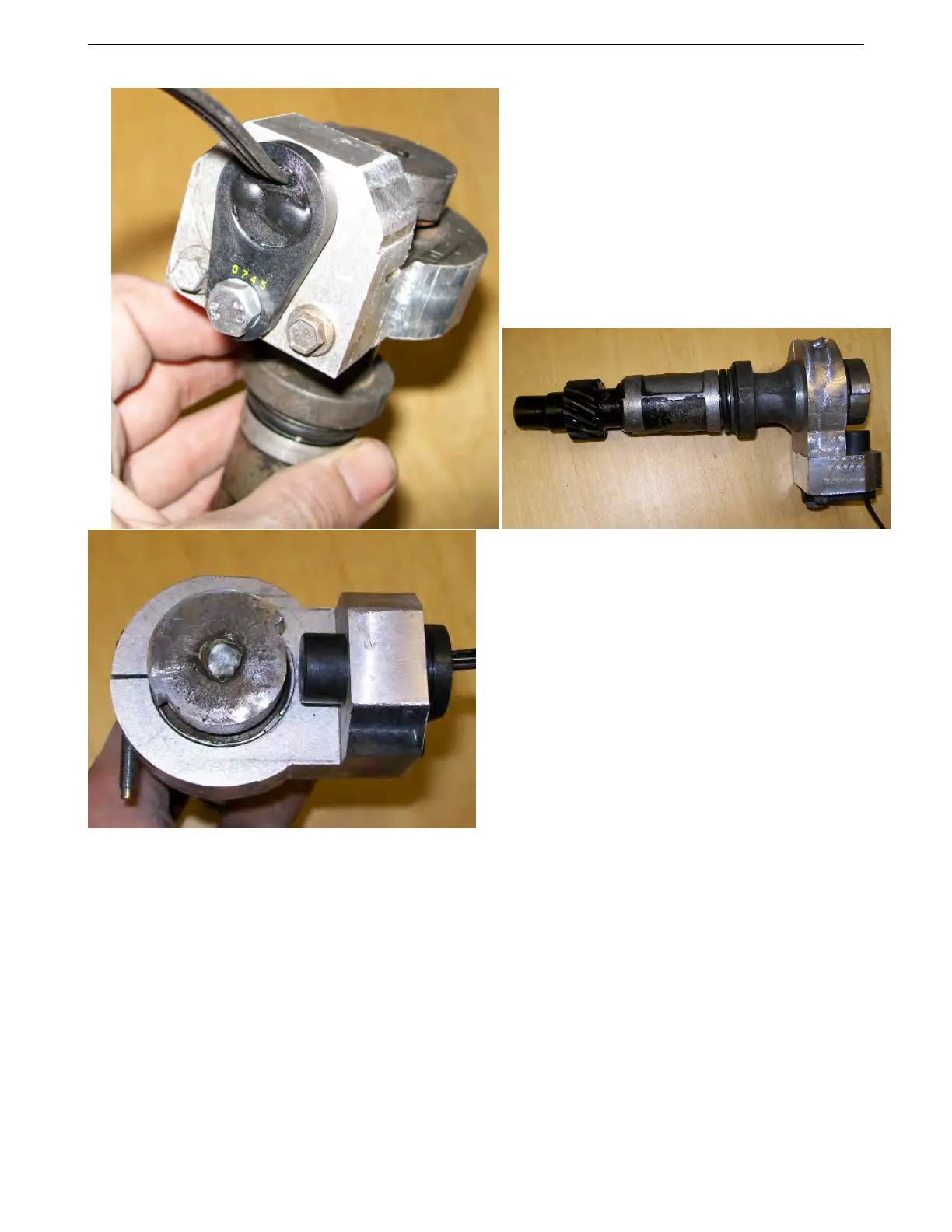

• Trigger wheel arrangement = Dual wheel with missing tooth
• Trigger wheel teeth = number of teeth including missing teeth
• Missing teeth = set according to your trigger wheel
• Tooth #1 Angle (deg BTDC) = set as above
• Main wheel speed = Crank wheel
• Second trigger active on = Poll Level
• Level for phase 1 = set as above
AMP EFI MS3ProUltimate manual version 1.203, firmware 1.5.0, 5/23/2017 Page 79
