4.3.3 Terminal Layout

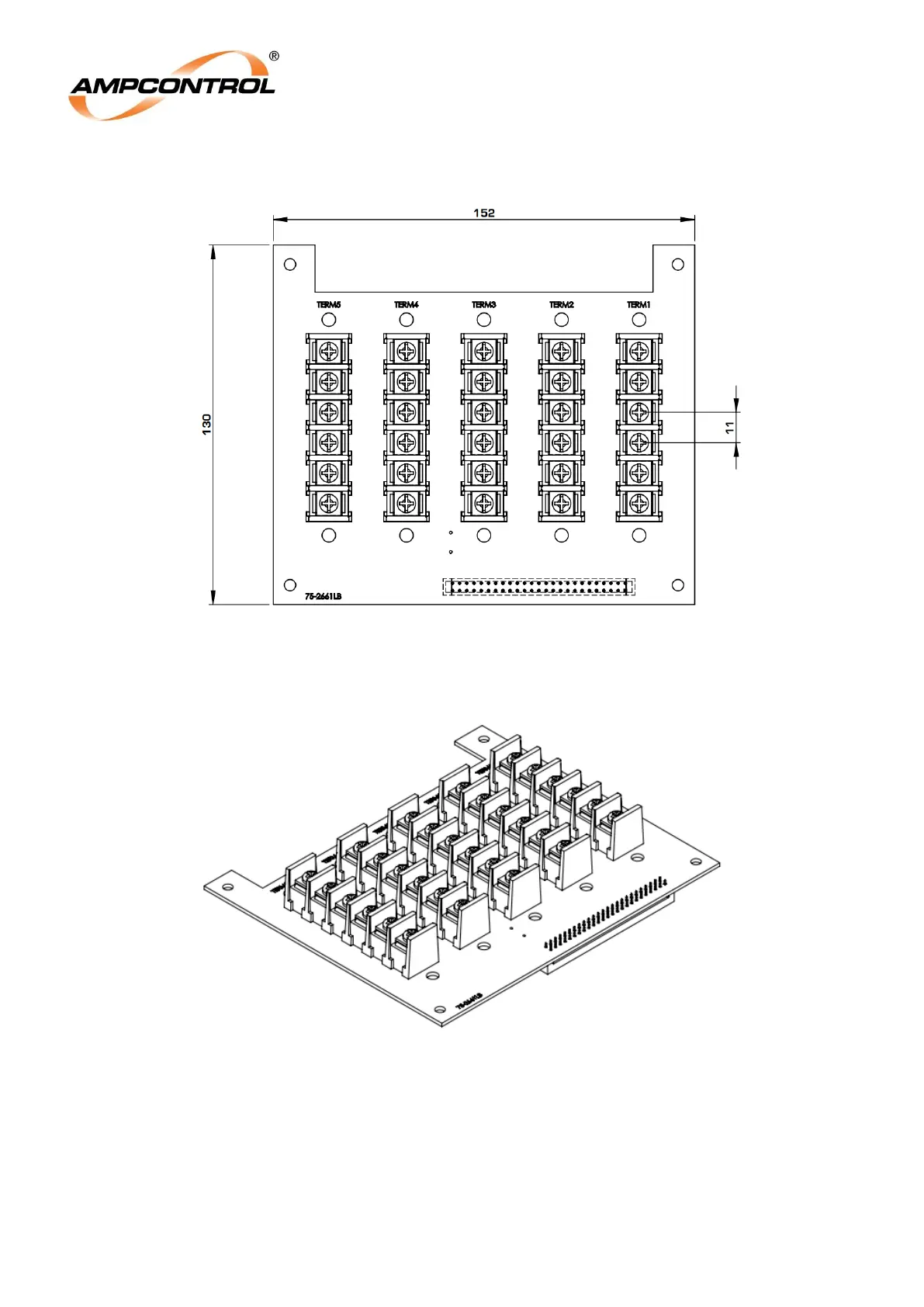

Figure 4.3: Terminal Layout for Diesel Machine Monitor
Figure 4.4: Isometric View of Diesel Machine Monitor’s Terminal Block
4-20mA
0V
SPEEDO
0V
OIL
0V
RUN
0V
ALM RST
0V
DEPUTY
0V
IDA Sig
0V
IDA RED
0V
IDA GRN
0V
RTD3
RTD2
RTD1 Drv
RTD1 Ret
RTD1 LO
RTD1 HI
0V
SOL V+
0V
IDA V+
0V
SENSOR V+
