4.1 Mechanical Arrangement
4.1.1 Enclosure
The ECD is housed in a plastic enclosure and is rated IP20.
The dimensions are shown in Figure 2 below (117x45x114mm):

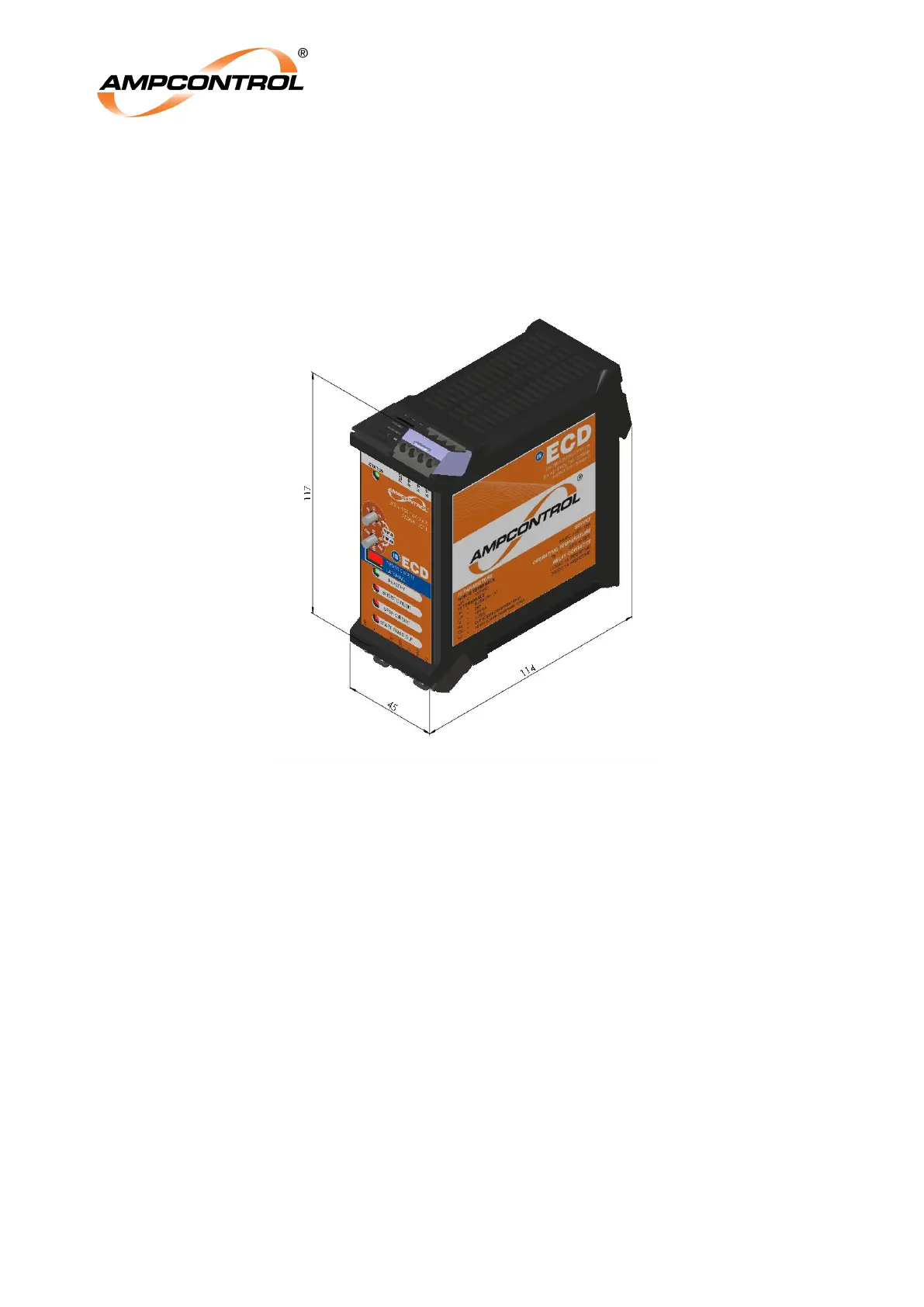

Figure 2: ECD enclosure dimensions
4.1.2 Mounting arrangement
The ECD enclosure is designed be mounted on a standard 35mm DIN rail.
The IS connections are located at the top of the enclosure and the non-IS connections (power and user inputs and outputs) are
located at the bottom of the enclosure.
The fascia of the relay includes two (2) adjustable DIP switches and two (2) rotary switches for configuration of relay settings
and five (5) indication LEDs to assist in fault finding.
