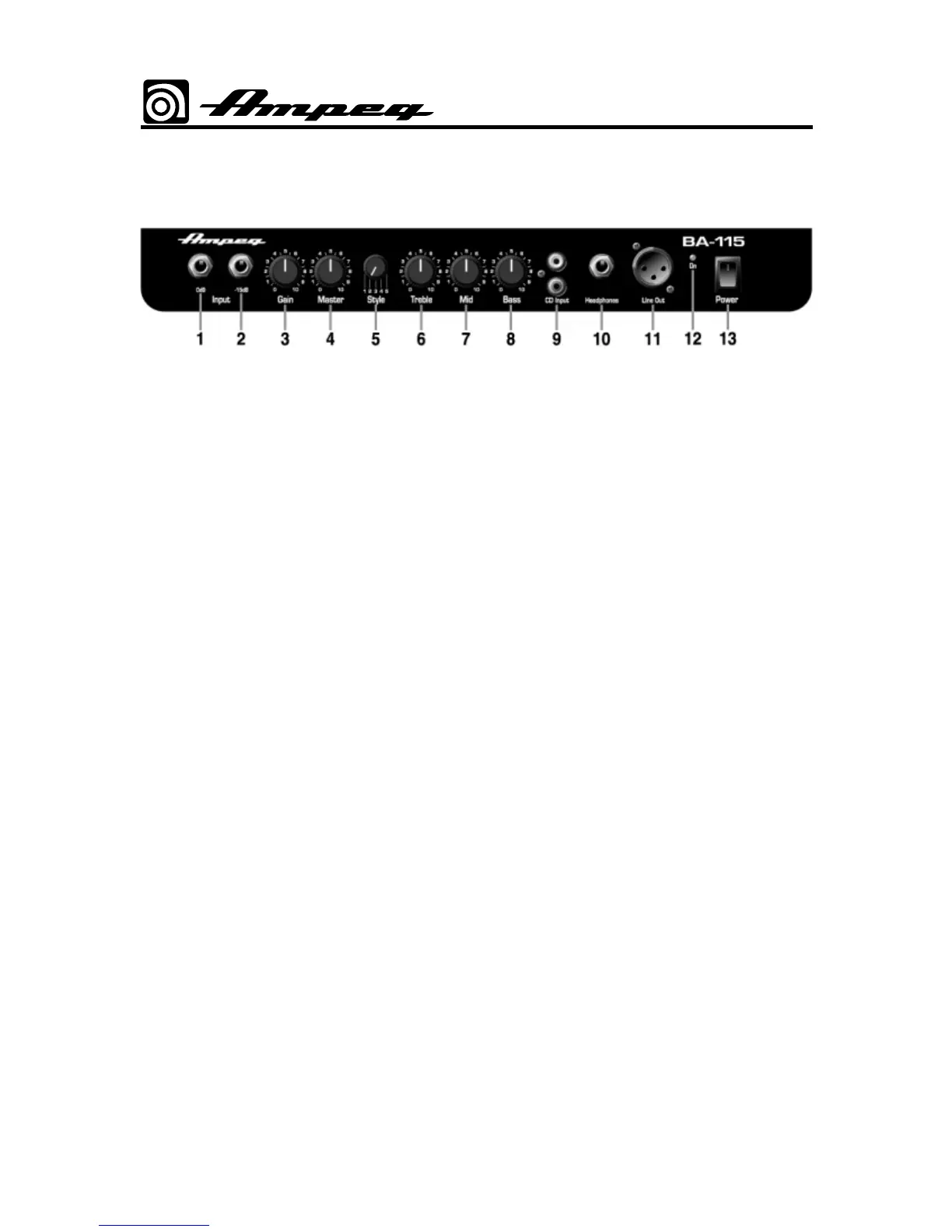

TOP PANEL:
1. 0dB INPUT: Connect your “passive” bass
guitar here using a shielded instrument cable.
This input is not padded and is best suited for
basses without active electronics or “hot”
pickups.
2. -15dB INPUT: Connect your “active” bass
here using a shielded instrument cable. This
input is padded 15dB and is best suited for
basses with active electronics and/or “hot”
pickups.
3. GAIN: Use this control in conjunction with
your instrument’s volume controls to adjust
the level of the signal sent to the preamp.
4. MASTER: Use this control to adjust the
overall listening level of the amplifier. This
control is also used to adjust the signal level
at the Line Out jack (#11).
5. STYLE: This five-position switch is used to
control the tone of the amplifier. Please refer
to the TECHNICAL SPECIFICATIONS on
the back page of this manual for an explana-
tion of the function of each position.
Experiment with the Style and other eq con-
trols (#6,7,8) for the results which suit you
best.
6. TREBLE: This control is used in conjunc-
tion with the style control to adjust the high
frequency level of the amplifier.
7. MID: This control is used in conjunction
with the style control to adjust the midrange
level of the amplifier.
8. BASS: This control is used in conjunction
with the style control to adjust the low fre-
quency level of the amplifier.
9. CD INPUT: These jacks (RCA type) are
used to connect the line level (or head-
phones) output of a CD player or tape deck.
The inputs to these jacks are summed into a
mono signal which is fed into the BA115 just
prior to its power amplifier. Use the volume
control on the CD or tape player to control the
output level.
10. HEADPHONES: The internal speaker is
disconnected when the headphones jack is
used.
11. LINE OUT: This jack supplies a post-eq,
balanced line level signal for connecting to a
house sound board, recording unit or exter-
nal amplifier. The amplitude of this signal is
adjusted by the Master control (#4).
12. ON LED: This LED is illuminated when
the amplifier is plugged in and turned on.
13. POWER: This switch is used to turn the
amplifier on or off.
AC LINE CORD: (rear panel, not shown)
This grounded power cord is to plugged into
a grounded power outlet, wired to current
electric codes and compatible with voltage,
power and frequency requirements stated on
the rear panel. Do not attempt to defeat the
safety ground connection.
BA115 BASS AMPLIFIER
