Amphenol SurLok Plus - Part 2: Receptacle Assembly

35
Part 2: Receptacle Assembly

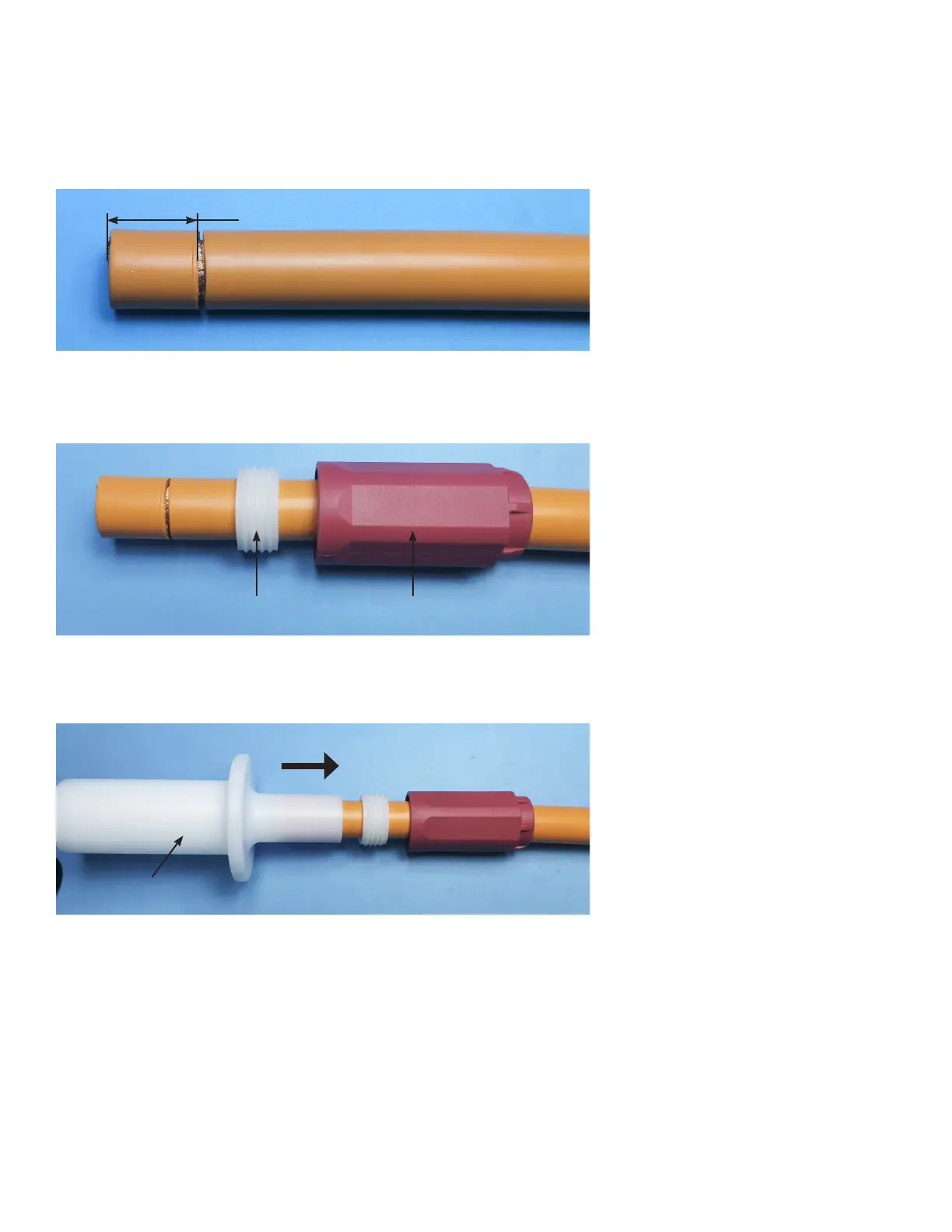

Step 1: Wire cutting and stripping (Apply for 70mm
2
& 95mm
2
Cable)
Stripping conductor: 17±1mm
Step 2: Un-assemble Grommet and rear cap over the cable as shown.
Step 3: Use the tool (FX3-0067-001) to fit the grommet to the bottom of rear cap
17±1mm
Grommet
Tool
Rear Cap
