Amphenol SurLok Plus - Part 1: Package Contents; Part 2: Receptacle Assembly

39

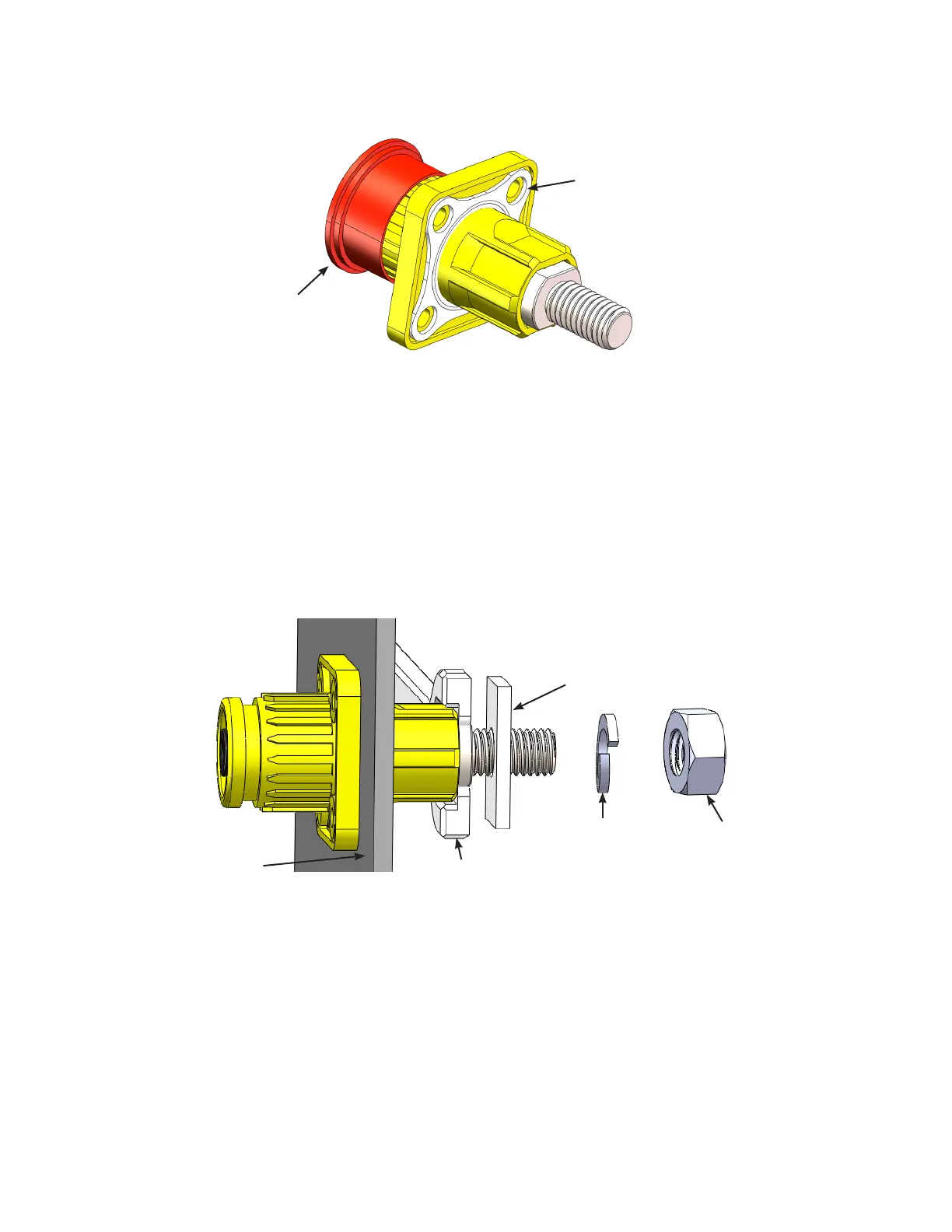

Part 1: Package Contents
Receptacle connector

Gasket
Dust Cap
Part 2: Receptacle Assembly
Step 1: Tighten M10x1.5 nut onto busbar (recommended torque is 13~14 Nm)
Busbar or other applications
Mount Panel Spanner

Washer

a: Receptacle tail (studs side) pass through the hole of mounting panel
b: Studs pass through copper busbar and washer and nut in proper order
c:
d: Tighten nut by tool
