Amphenol SurLok Plus - Part 1: Package Contents; Part 2: Receptacle Assembly

42

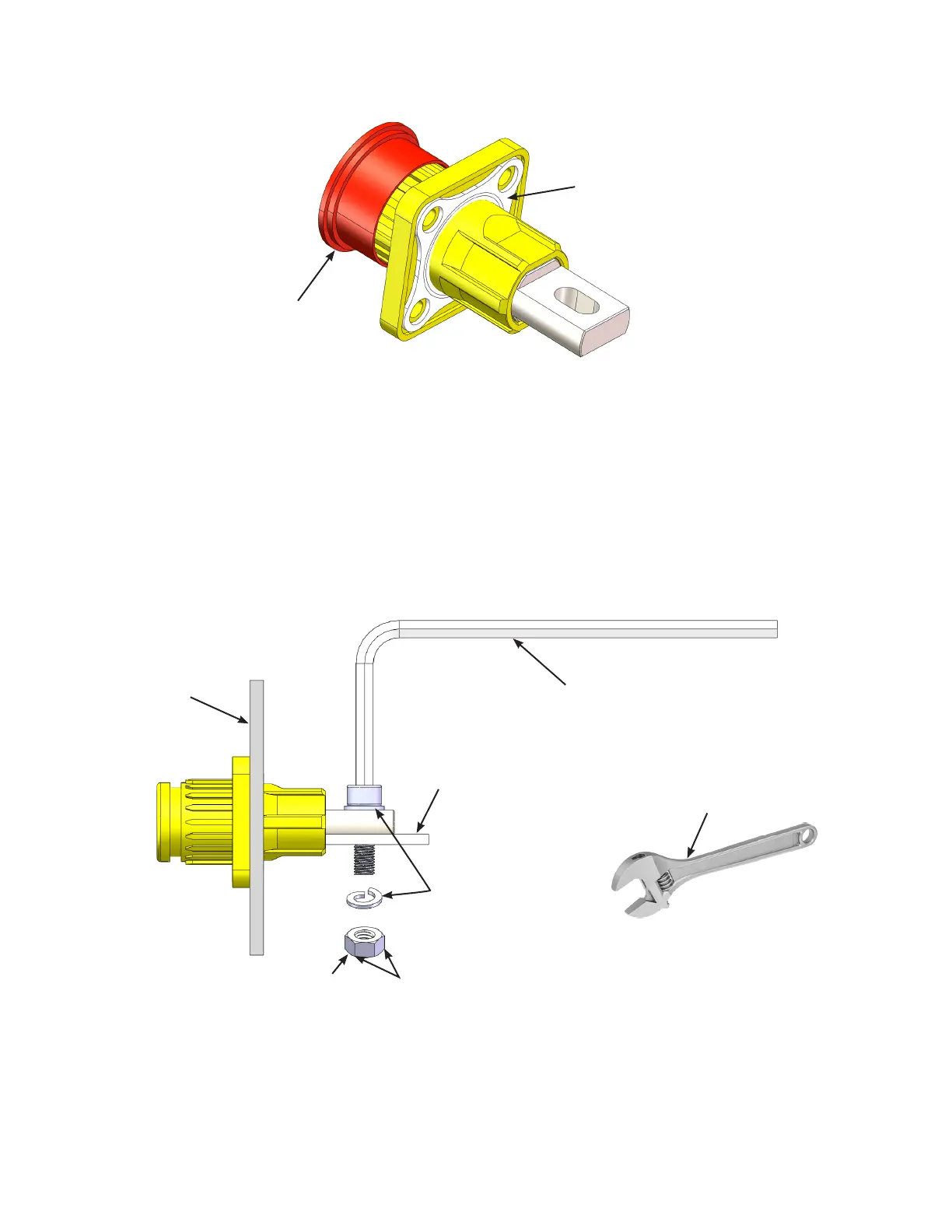

Part 1: Package Contents
Receptacle connector

Gasket
Dust Cap
Part 2: Receptacle Assembly
Step 1: Tighten Nuts (recommended torque for nut is 4N.m max.)
Allen key
Busbar or other application

Panel
M6 Washer
M6X1 Nut

a: Receptacle tail pass through the hole of mounting panel
b: Studs pass through copper busbar and washer and nut in proper order
c: Tighten nut by tool
