Amprobe AT-6000 - AT-6000-T Transmitter Overview

6
2. KIT COMPONENTS
NCV
88
TIP SENSOR
LCD DISPLAY
Full color TFT display
RUBBER OVER
MOLDED ENCLOSURE
SENSITIVITY ADJUSTMENT
BUTTON (+/-)
VOLUME
ADJUSTMENT
BUTTON (+/-)
FUNCTION BUTTON
Toggles between
modes:
- Quick Scan
- Precision Tracing
- Breaker Locating
- NCV-contact detecion
(Non-contact voltage)
POWER BUTTON
Turns unit On / Off
BATTERY COMPARTMENT
(Back side)
HOT STICK ATTACHMENT POINT
(Do not use for voltage higher
than 600 V)

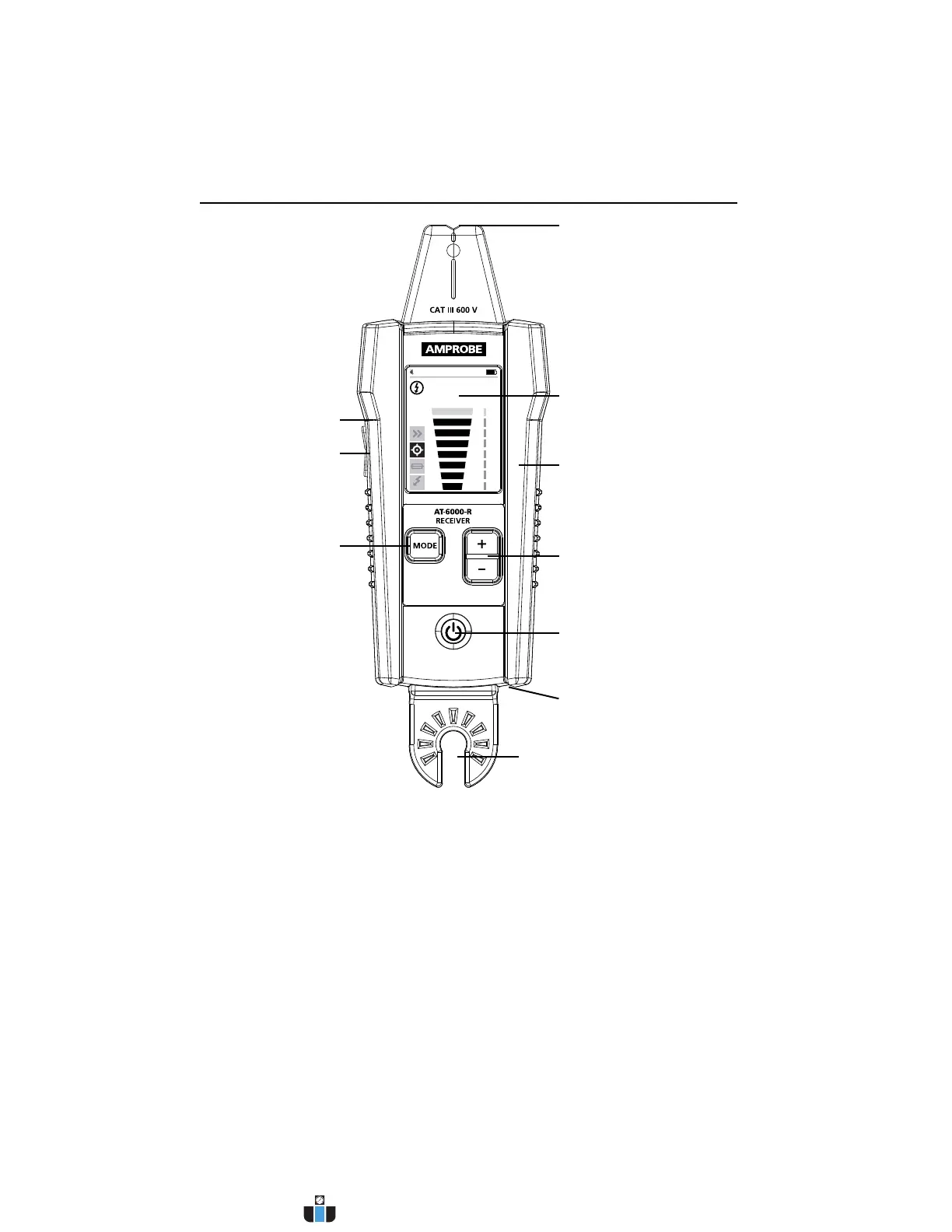

Figure 2.1: Overview of AT-6000-R Receiver
2.2 AT-6000-T Transmitter
TACTILE BARRIER
