2.3 CT-400 Signal Clamp
(included with AT-6030 option for AT-6020)
The Signal Clamp accessory is used for applications when where is no access to the bare
conductors. The clamp attachment enables the Transmitter to induce a signal through the
insulation into either wires. The clamp works on low impedance closed circuits.

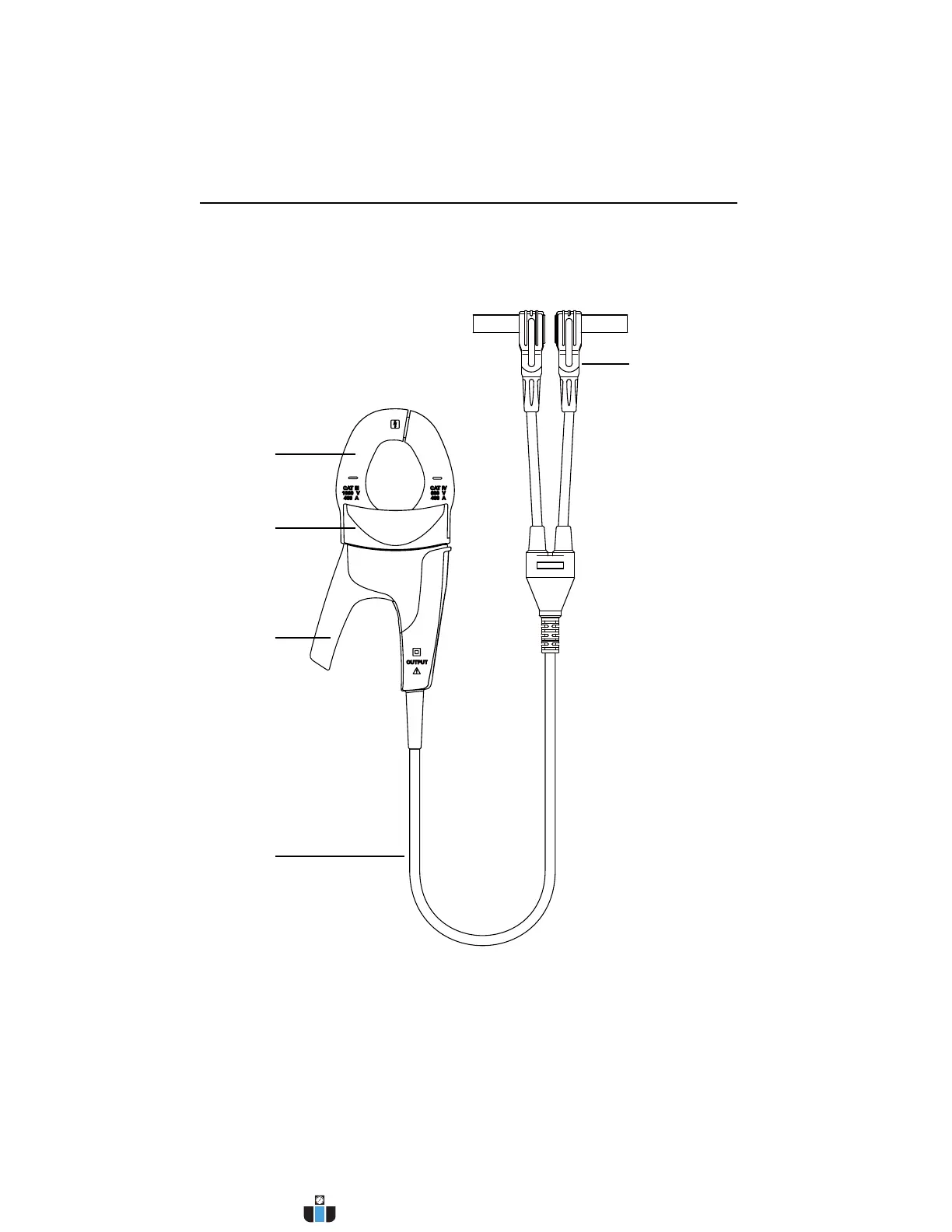

Figure 2.4: Overview of CT-400 Signal Clamp
2. KIT COMPONENTS
CONNECTORS TO
TRANSMITTER
JAW
TACTILE
BARRIER
JAW
RELEASE
TEST LEAD
