7
DC Voltage: 600V maximum
6 V DC
48 V DC
6 V DC
48 V DC

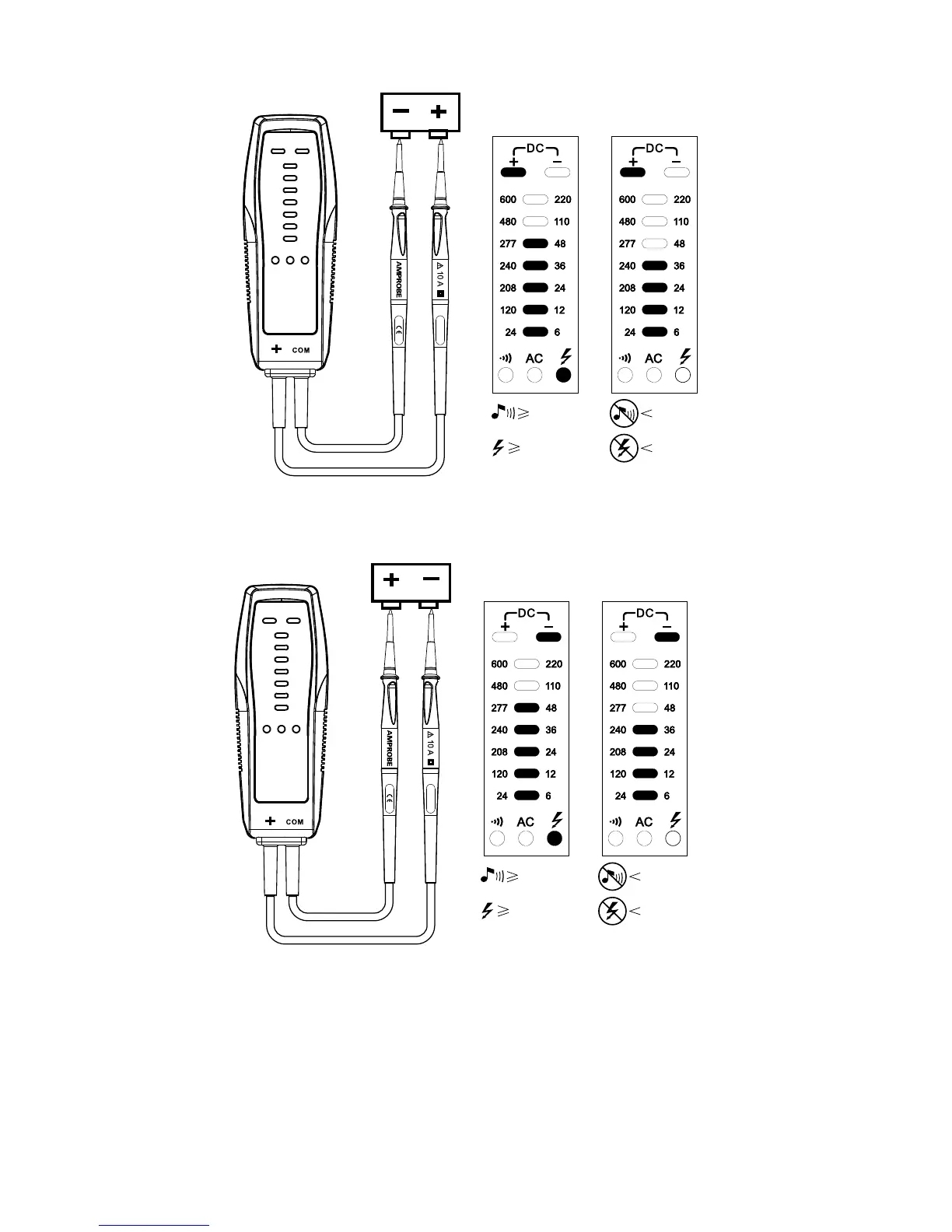

Figure 3: +DC voltage measurement
-6 V DC
-48 V DC
-6 V DC
-48 V DC
Figure 4: -DC voltage measurement
