Continuity Testing
Disconnect circuit power and discharge all high-voltage capacitors before
testing continuity. Short circuit=0 - 45 kΩ
Open > 85 kΩ
Short or 0 - 45 kΩ

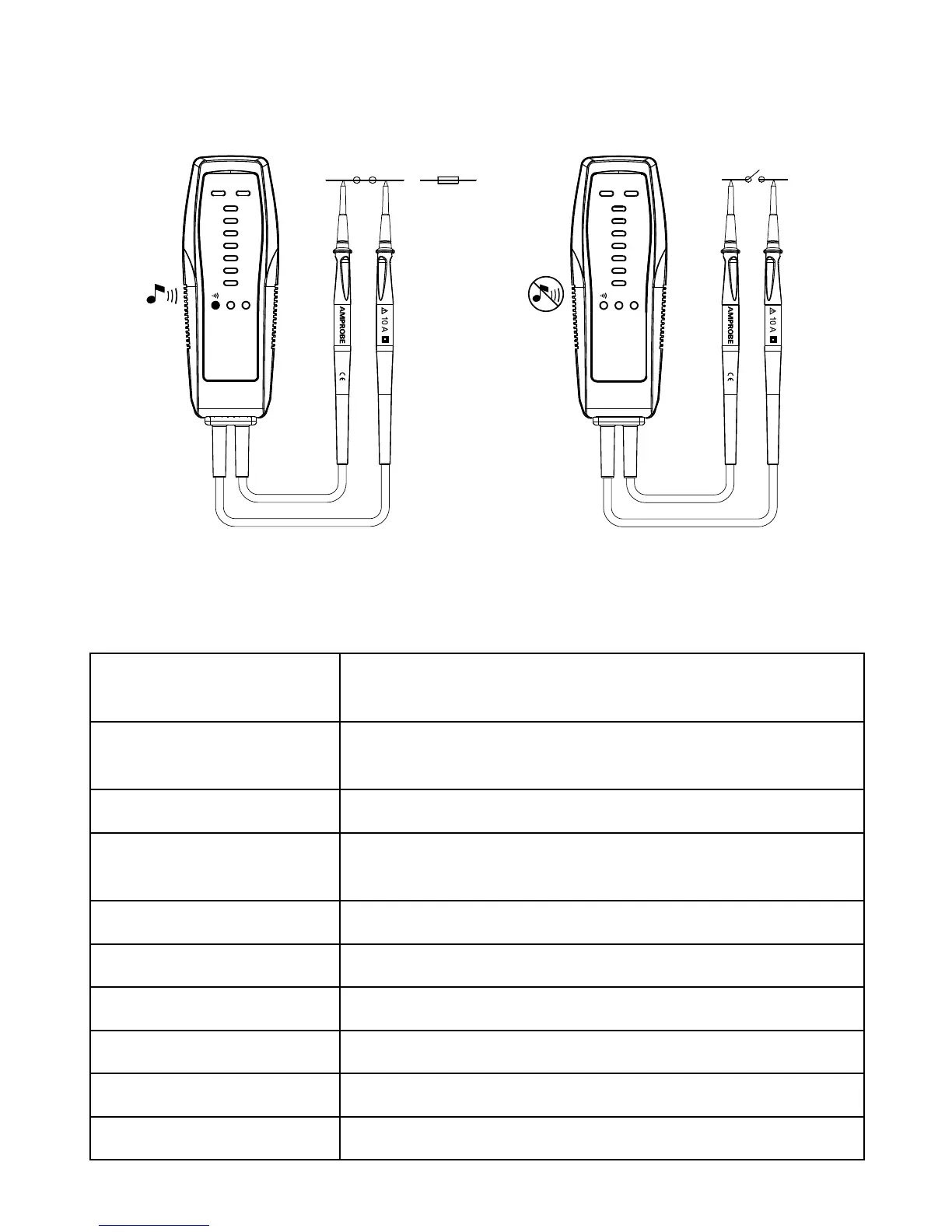

Figure 5: Continuity testing
DETAILED SPECIFICATIONS
LED voltage range
24 - 600 VAC
6 - 220 VDC
LED indicator
AC volts: 24 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V
DC volts: 6 V, 12 V, 24 V, 36 V, 48 V, 110 V, 220 V
Frequency range 50 to 60 Hz
Hazardous voltage
indication
≥ 24 V AC, ≥ 48 V DC
Acoustic indication ≥ 24 VAC, ≥ 6 VDC
Tolerances LEDs -30% to 0% of reading
Voltage detection Automatic
Range detection Automatic
Polarity detection Full range
Continuity range 0 – 45 kΩ
