7
Tension CC : 600 V maximum
6 V DC
48 V DC
6 V DC
48 V DC

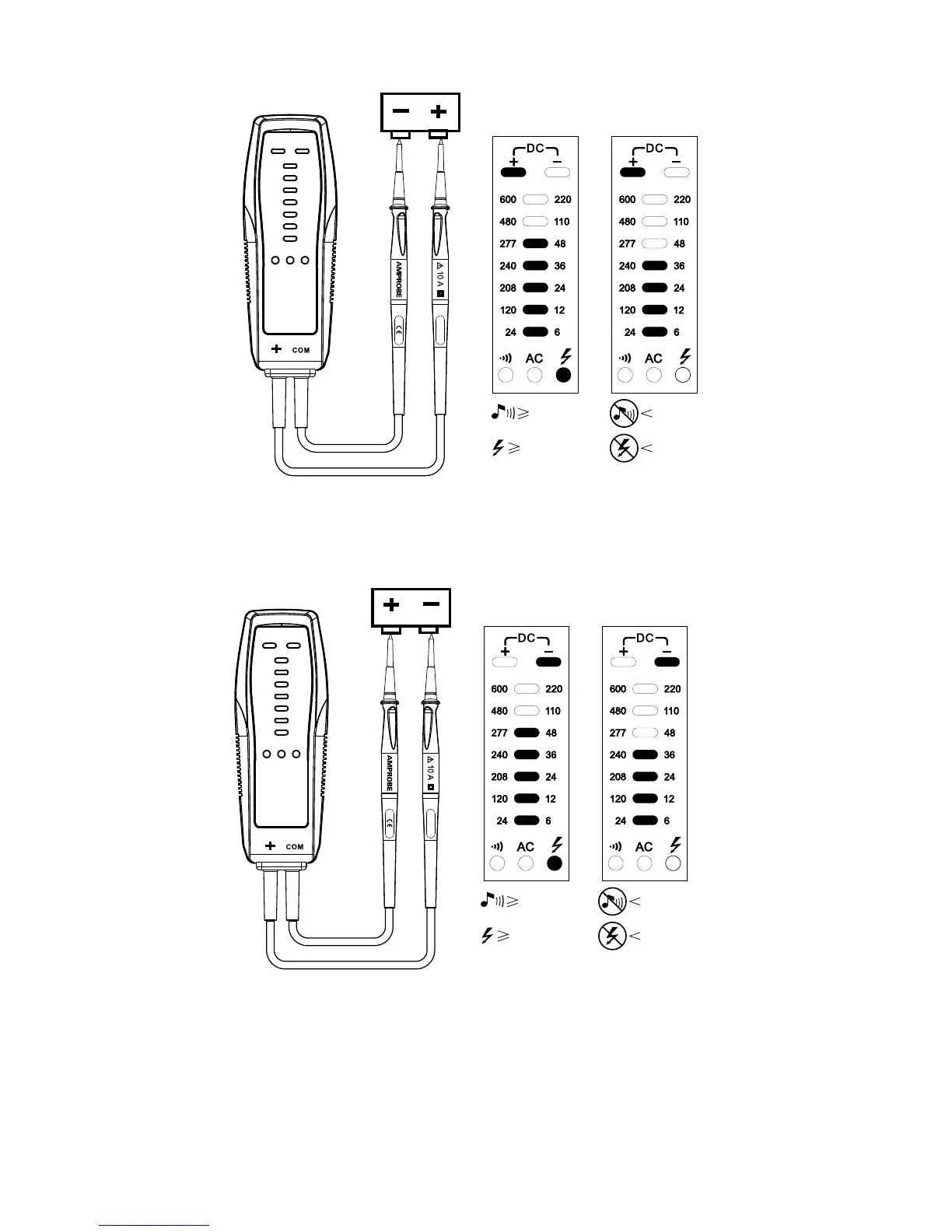

Figure 3 : Mesure de la tension +CC
-6 V DC
-48 V DC
-6 V DC
-48 V DC
Figure 4 : Mesure de la tension -CC
