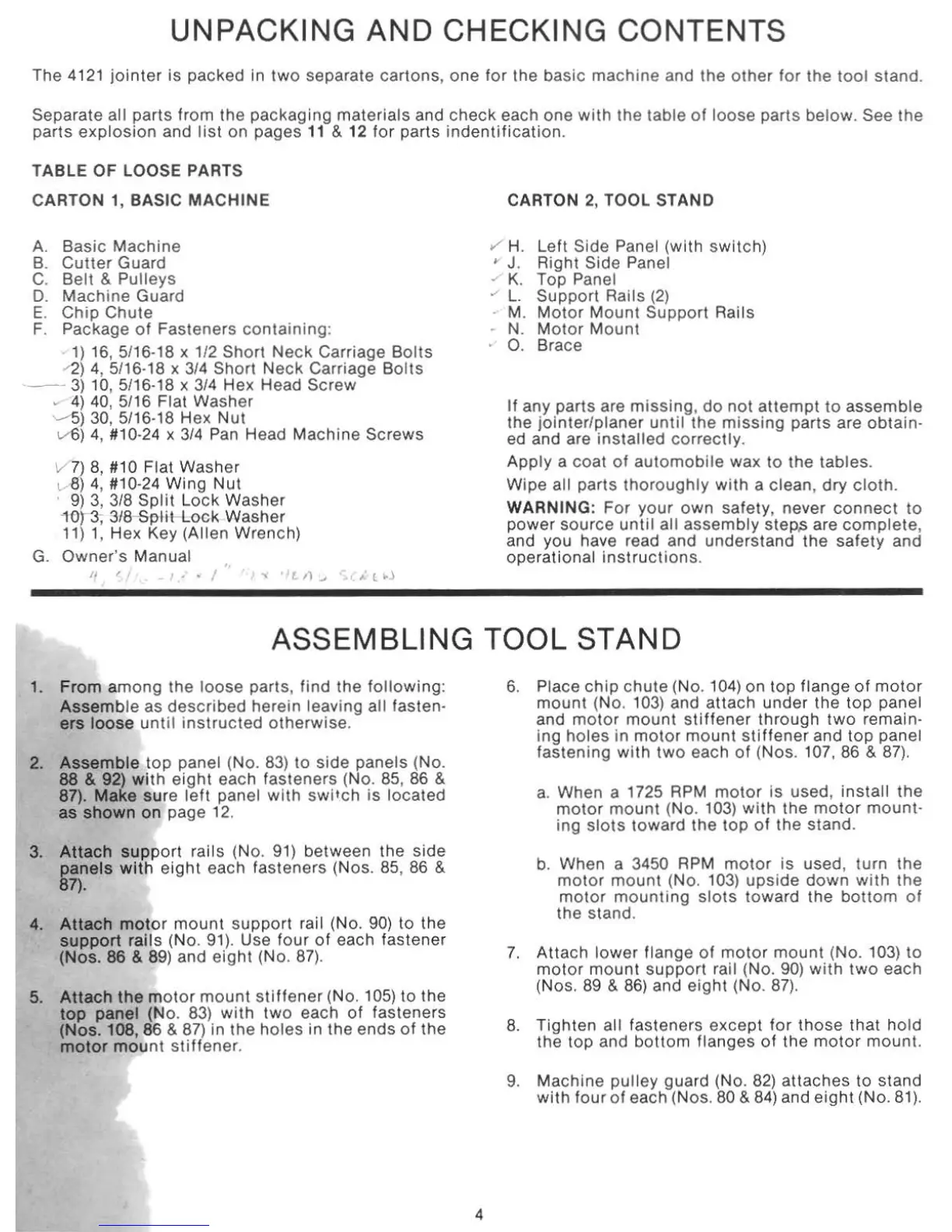

UNPACKING AND CHECKING CONTENTS
The 4121 jointer is packed in two separate cartons, one for the basic mac hin e and the other for the 10 01 stand .
Separate all parts from the packaging materials and check each one with the table 011005e parts below . See the
parts explosion and list on pages 11 & 12 for parts indentification .
TABLE OF LOOSE PARTS
CARTON 1, BASIC MACHINE
A. Basic Machine
B. Cutler Guard
C. Bell & Pulleys
D. Mach in e Guard
E.
Chip Chute
F. Package of Fasteners containing :
1) 16, 5/16-18 x 1/2 Short Neck Carriage Bolts
"- 2) 4, 5/16- 18 x 3/4 Shorl Neck Carriage Bolls
- 3) 10, 5/16·18 x 3/4 Hex Head Screw
.,... 4) 40, 5/16 Flat Washer
'-'5) 30, 5/16-18 Hex Nut
v6) 4, #10-24 x 3/4 Pan Head Machine Screws
v7 ) 8, #10 Flat Washer
v 8) 4, #10-24 Wing Nut
, 9) 3, 318 Split Lock Washer
10) 3, 3/8 Split Lock Washer
11) " Hex Key (Allen Wrench)
G.
Owner's Manual
" '
1-' • I
CARTON 2, TOOL STAND
v' H. Left Side Panel (with switch)
v J. Right Side Panel
./ K. Top Panel
.,.. L. Support Rails (2)
~ M. Motor Mount Support Rails
N.
Motor Mount
• O. Brace
If any parts are missing , do not attempt to assemble
the jointer / planer untit the missing parts are obtain·
ed and are installed c orrectly.
Apply a coat of automobile wax to the tables .
Wipe all parts thoroughly with a clean, dry cloth.
WARNING: For your own safety , never connect to
power source until all assembly step,s are complete ,
and you have read and
understand the safety and
operational instructions .
ASSEMBLING TOOL STAND
1_
From among the loose parts , find the following:
6.
Place chip chute (No . 104) on top flange of motor
Assem ble as described herein leaving all fasten·
mount (No . 103) and attach under the top panel
ers loos e until instru c ted otherwise.
and motor mount stiffener through two remain·
ing holes in motor mount stiffener and top panel
2.
Assembl e top panel (No. 83) to side panels (No.
fastening with two each of (Nos. 107,86 & 87).
88 & 92) w ith eight each fasteners (No. 85, 86 &
a. When a 1725 RPM motor is used, install the
87). Make su re left panel with switch is located
as shown on page 12.
motor mount (No. 103) with the motor mount ·
ing slots IOward the top of the stand.
3.
Attach sup port rails (No. 91) between the side
~nels wit h eight each fasteners (Nos.
85,
86 &
b. When a 3450 RPM motor is used, turn the
7)-
motor mount (No. 103) upside down with the
motor mounting slots toward the bottom of
4_
Attach mot or mount support rail (No. 90) to the
the
stand.
support ralls (No. 91). Use four of each fastener
7.
Attach lower flange of motor mount (No. 103) to
( Nos _ 86 & 8 9) and eight (No _ 87) _
motor mount support rail (No. 90) with two each
5_
A tt ach the m otor mount stiffener (No. 105) to the
(Nos. 89 & 86) and eight (No_ 87).
t op pa ne l (No. 83) with two each of fasteners
8. Tighten all fasteners except for those that hold
( Nos . 108 ,86 & 87) in the holes in the ends of the
motor mo unt stiffener.
the top and bottom flanges of the motor mount.
9. Machine pulley guard (No. 82) attaches to stand
with four of each (Nos. 60 & 84) and eight (No. 81 ).
4
