MST-431/MSD-431-L 4.3" Modero S Series® Touch Panels
MST-431/MSD-431-L Features
Picture View
By connecting a USB drive via one of the device’s USB ports (FIG. 3), Picture View allows the MST-431 to
access JPEG images on that drive and display them on the touchscreen (FIG. 6). Individual images may be
accessed at any time, or the entire collection may be displayed for predetermined times. Picture View may be
stopped at any time by removing the USB drive, and the MST-431 will return to its default display page.
To start Picture View:
1. Connect a USB drive to the device. Picture View will automatically recognize all available images on the
drive and start displaying them on the touchscreen.
2. When the images begin to display, touch any place on the touchscreen to open the configuration popup
menu (FIG. 7). If no selection is made, this menu will remain in place for 15 seconds and then disappear.
It may be accessed again by touching anywhere on the touchscreen.
3. On the leftmost amber button, select between Rand (images display at random) and A-Z (images display
in alphabetical order based on the name of the file).
4. The four grey buttons allow scrolling through saved images and the rate of display:
The Previous Image Saved button returns the display to the first image uploaded by Page View.
The Stop button stops Page View and returns to the default panel page.

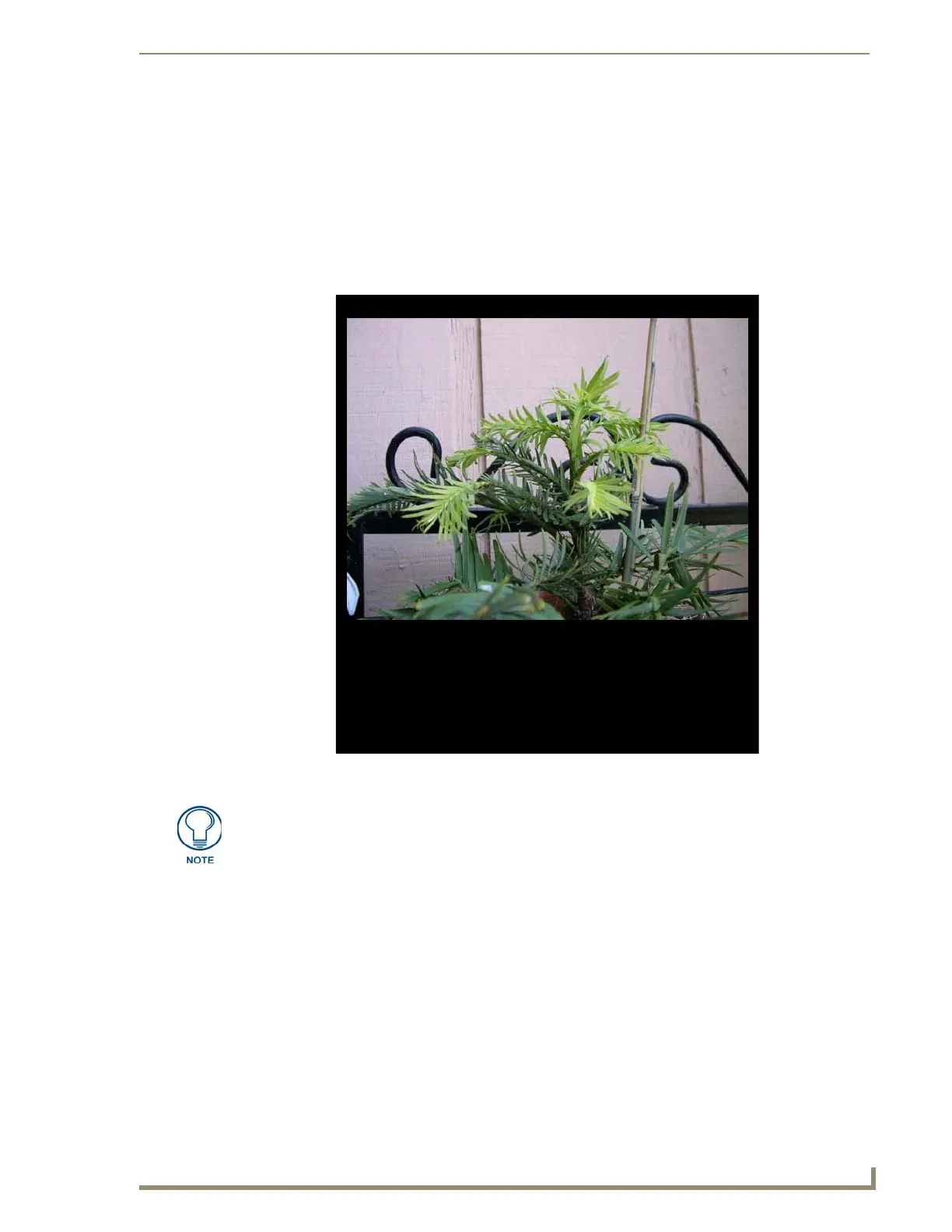

FIG. 6 Picture View display
The maximum source resolution for Picture View is 1920x1920 pixels.The maximum
displayed resolution is the same as the screen resolution.
