The Pause/Resume button allows the display to stop on one particular image. Press it again to
resume the display procession.
The Next Image Saved button returns the display to the last image uploaded by Page View. If the
panel has not accessed all of the images available on a USB drive, Page View will display the last
one uploaded to date.
5. On the rightmost red button, select the number of seconds a selected image will be displayed in Picture
View. This may be selected between 5, 10, 15, 30, and 60 seconds.
6. The counter beneath the buttons displays the number of images currently uploaded by the MST-431
versus the number detected on the USB drive.
Preview Mode and Normal Mode
Picture View has two modes: Preview Mode and Normal Mode. Preview Mode allows the user to configure
Picture View. Once a USB drive containing images is inserted into the panel, the images will begin to display.
Touching any place on the display will result in the configuration popup to slide from the bottom of the
display.
Picture View goes into its Normal Mode when the MST-431 goes into idle timeout while connected to a USB
drive. Normal Mode displays images until the touchscreen is touched, or some other wakeup event is detected.
When the device goes back into timeout, Normal Mode will return to displaying images until the USB drive is
removed from the device.
Picture View Send Command
The ^PIC Send Command stops either mode of Picture View, or starts Preview Mode. For more information,
please refer to the Modero S Series Programming Guide, available at www.amx.com.

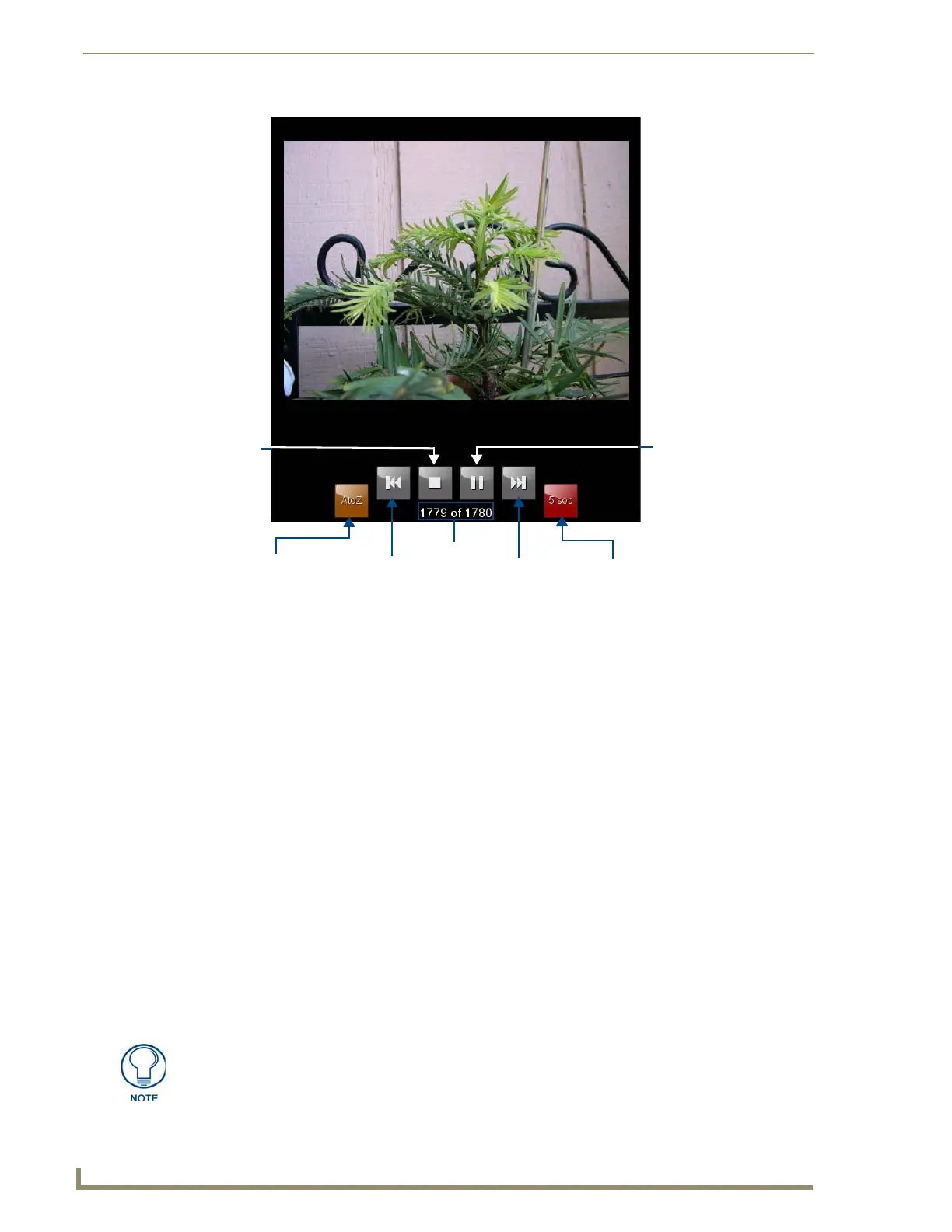

FIG. 7 Picture View configuration popup menu
Previous image
saved
Stop
Pause/
Next image
saved
Counter
Resume
Random/
A-Z
Timer
All images must be in JPEG format. PNG and other image formats cannot be viewed
through Picture View.
