Installation
17
MST-431/MSD-431-L 4.3" Modero S Series® Touch Panels
10. Test the incoming wiring by attaching the panel connections to their terminal locations and applying
power. Verify that the panel is receiving power and functioning properly to prevent repetition of the
installation.
11. Latch the panel onto the top hooks on the back box and push it down onto the bottom snaps (FIG. 15).
Press gently but firmly on the ends until the snaps “click” to lock it down.

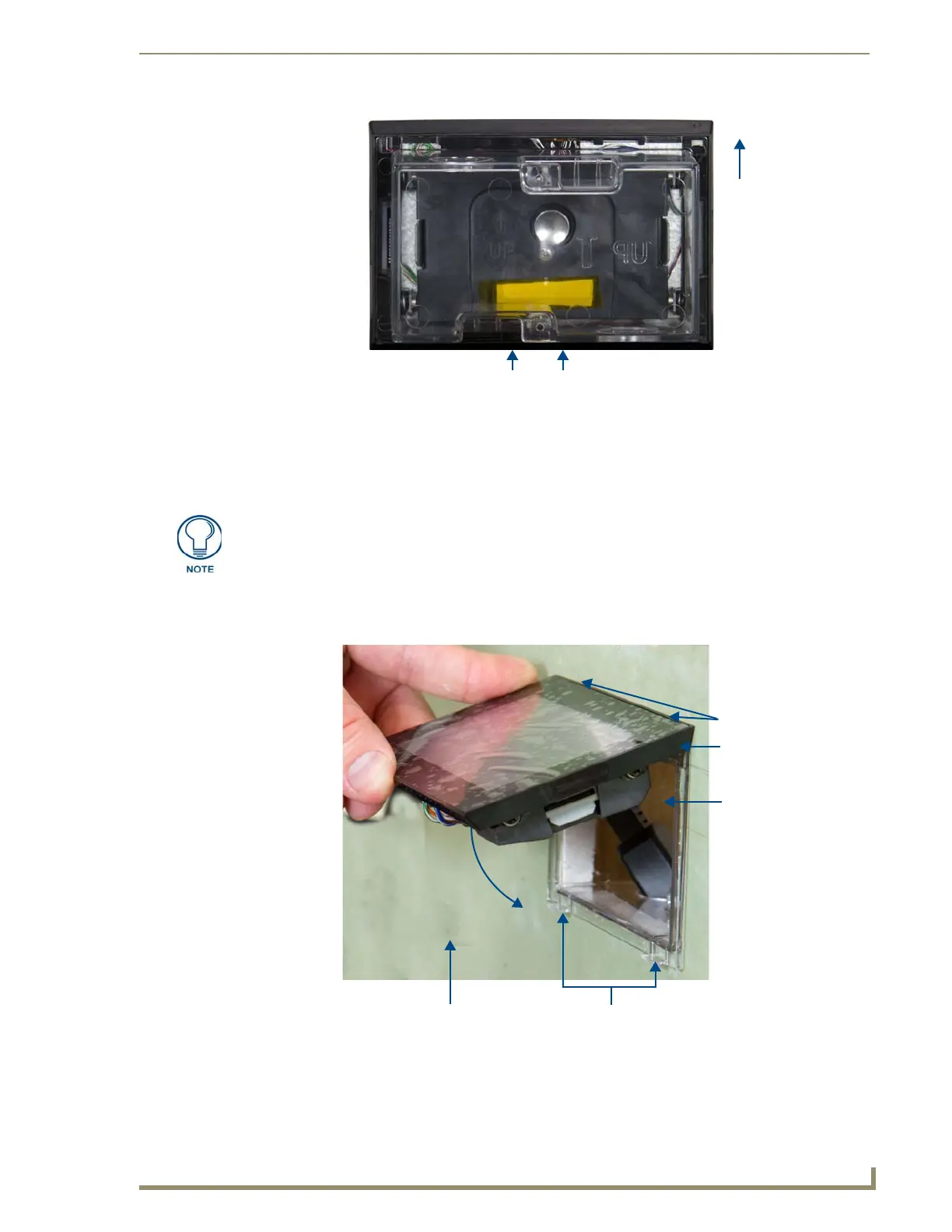

FIG. 14 Rear of the MSD-431-L
Do not disconnect the connectors from the touch panel. The unit must be installed
with the attached connectors before being inserted into the mounting surface.
FIG. 15 Installing the MSD-431-L
Latch Hooks
MSD-431-L
Back Box
Mounting Surface
Snaps
