Modero S Series Touch Panels - Installation & Hardware Reference Manual
MST/D-701 - 7" S Series Touch Panels
MST-701 (Tabletop)
MST-701 Specifications

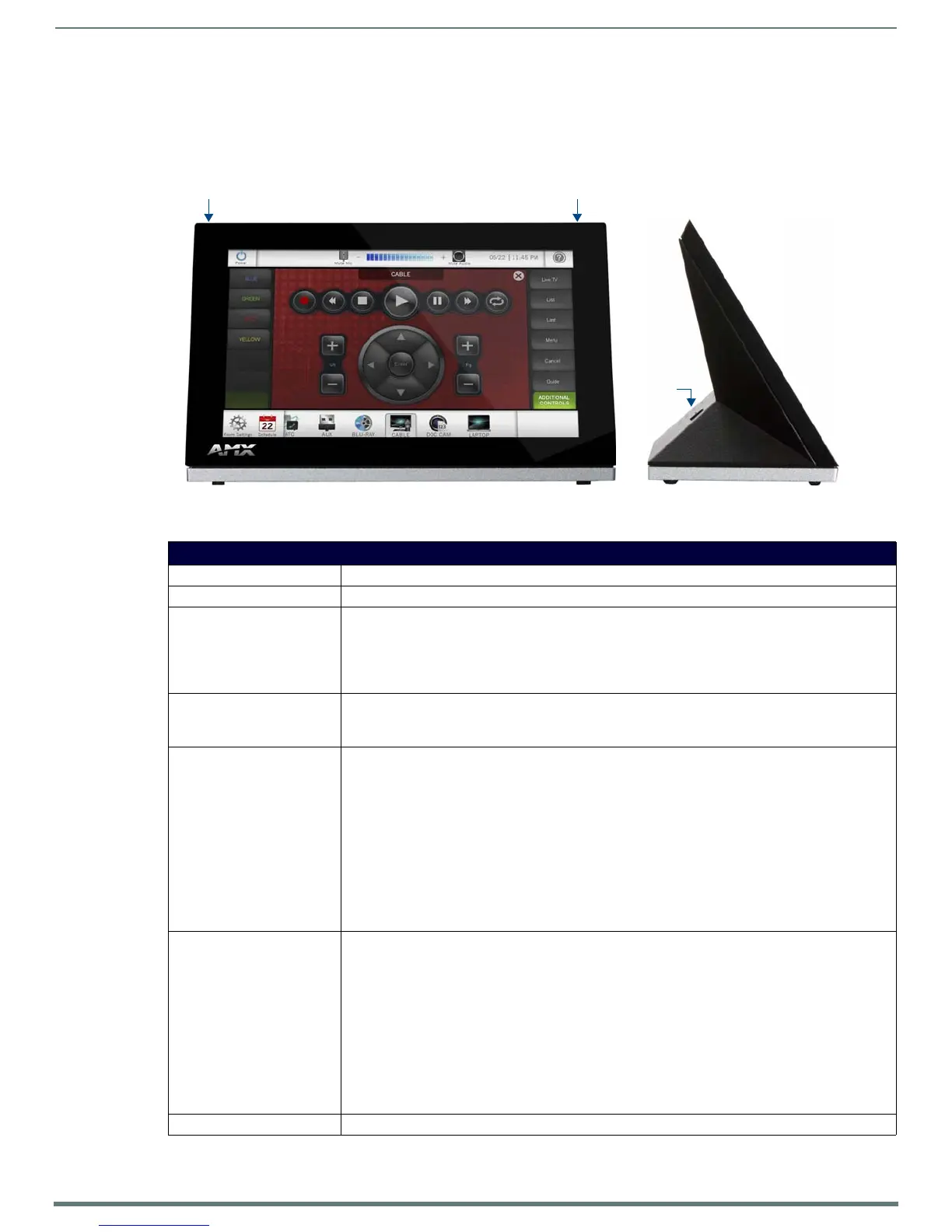

FIG. 8 MST-701
MST-701 Specifications
DIMENSIONS (HWD) 4 1/2" x 7 3/8" x 3 3/16" (115mm x 188mm x 81mm)
WEIGHT 1.4 lbs (.635 Kg)
POWER CONSUMPTION • Full-On: 13W
•Typical: 7W
•Standby: 4.5W
• Shutdown: 0.7W
• Start-Up Inrush Current: Not applicable due to PoE standard
EXTERNAL POWER SUPPLY
REQUIRED
Optimal performance requires use of one of the following AMX PoE power supplies (not included):
• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)
• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)
CERTIFICATIONS • FCC Part 15 Class B
• CE EN 55022
• CE EN 55024
• CE EN 60950-1
•IEC 60950-1
• C-Tick CISPR 22 Class B
• IC CISPR 22 Class B
•UL 60950-1
• VCCI CISPR 22 Class B
•RoHS
•WEEE
TOUCH SCREEN DISPLAY • Display Type: TFT Active Matrix Color LCD with Fringe Field Switching (FFS) - Wide viewing angle
technology
• Display Size (WH): Landscape: 7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonal
• Viewable Area (WH): Landscape: 6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonal
• Resolution: Landscape: 1024x600
• Aspect Ratio: Landscape: 16:9
• Brightness: 400 cd/m2
• Contrast Ratio: 800:1
• Color Depth: 16.7M colors
• Illumination: LED
•Touch Overlay: Resistive
VIEWING ANGLE 89°/89°/89°/89° (Up/Down/Left/Right)
USB Port
Sleep Button
Microphone
