Modero S Series Touch Panels - Installation & Hardware Reference Manual
MSD-701-L (Landscape Wall Mount)
The MSD-701-L 7" (Landscape) Wall Mount Touch Panel (FG2265-02) features brilliant 24-bit color depth, PoE connectivity, and
streaming video. The MSD-701-L also supports Bluetooth keyboard and mouse via the optional MXA-BT Bluetooth Adapter.
MSD-701-L Specif ications

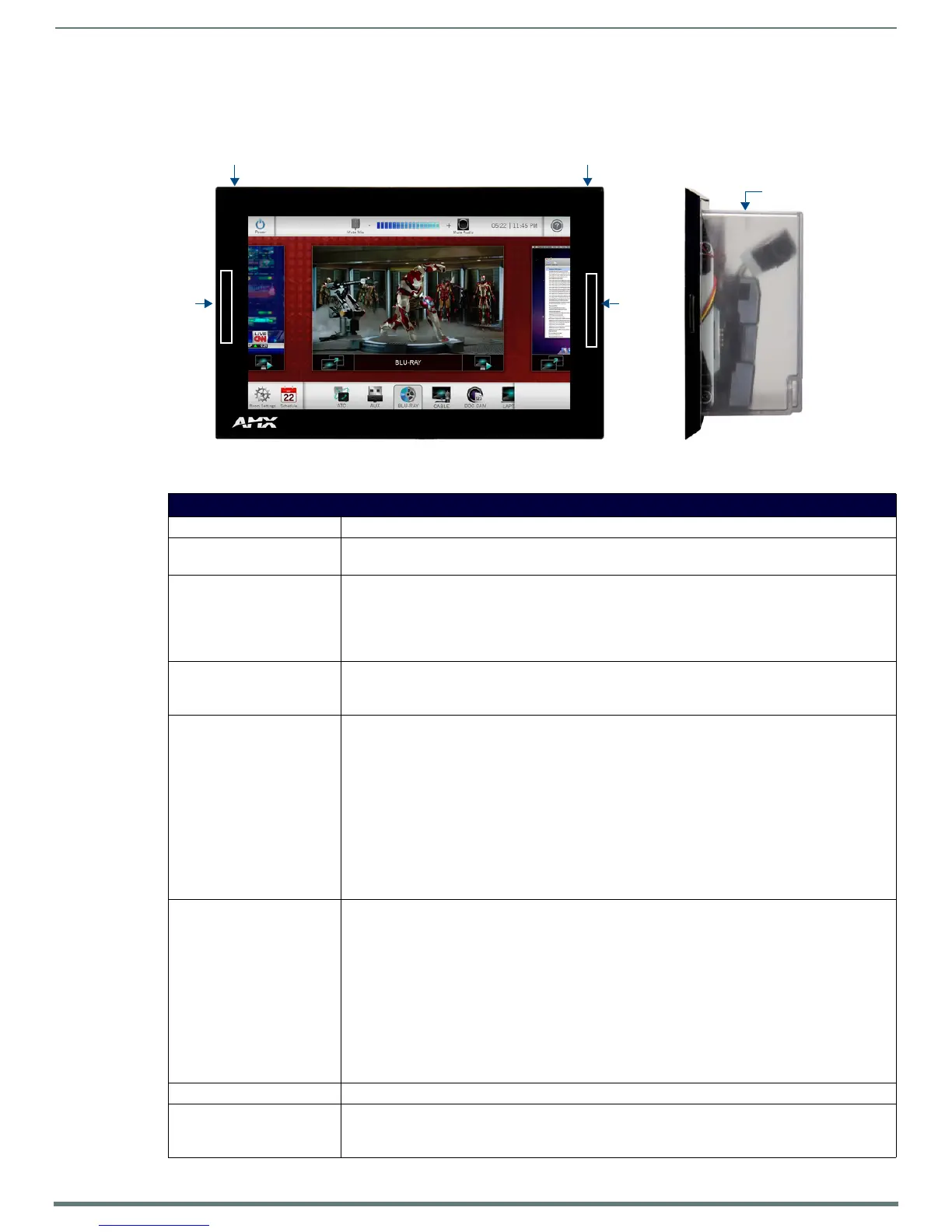

FIG. 9 MSD-701-L
MSD-701-L Specifications
DIMENSIONS (HWD) Landscape: 4 7/8" x 7 3/8" x 2 1/4" (123.9mm x 187.5mm x 58mm), with Backbox
WEIGHT • 1.05 lbs (.680 Kg), with Backbox
• 0.8 lbs (.363 Kg), without Backbox
POWER CONSUMPTION • Full-On: 11W
•Typical: 7.5W
•Standby: 4.5W
• Shutdown: 0.7W
• Start-Up Inrush Current: Not applicable due to PoE standard
EXTERNAL POWER SUPPLY
REQUIRED
Optimal performance requires use of one of the following AMX PoE power supplies (not included):
• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)
• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)
CERTIFICATIONS • FCC Part 15 Class B
• CE EN 55022
• CE EN 55024
• CE EN 60950-1
•IEC 60950-1
• C-Tick CISPR 22 Class B
• IC CISPR 22 Class B
•UL 60950-1
• VCCI CISPR 22 Class B
•RoHS
•WEEE
TOUCH SCREEN DISPLAY • Display Type: TFT Active Matrix Color LCD with Fringe Field Switching (FFS) - Wide viewing angle
technology
• Display Size (WH): Landscape: 7.3" x 4.8" (186mm x 122mm), 8.8" (222mm) diagonal
• Viewable Area (WH): Landscape: 6.05" x 3.54" (154mm x 90mm), 7.0" (178mm) diagonal
• Resolution: Landscape: 1024x600
• Aspect Ratio: Landscape: 16:9
• Brightness: 400 cd/m2
• Contrast Ratio: 800:1
• Color Depth: 16.7M colors
• Illumination: LED
•Touch Overlay: Resistive
VIEWING ANGLE 89°/89°/89°/89° (Up/Down/Left/Right)
MEMORY • SDRAM: 512 MB
•Flash: 4 GB
• Maximum Project Size: 2.4 GB flash available to user
Sleep Button Microphone
Left
LED
Right
LED
Backbox
(side view)
