Configuring Communication
36
MVP-5200i Modero® ViewPoint® Touch Panel with Intercom - Instruction Manual
When an IP address is assigned to the usb0 interface on the device, Windows XP will make an attempt to assign an IP address to the
corresponding interface on the Windows side. Usually, this IP address is a random value and in a totally different subnet. The user
may set the Windows network properties for the Ethernet over USB interface to have a specific address whenever the Windows XP
system detects an MVP-5200i with an assigned IP address.
In Windows XP:
1. From the Windows XP desktop, click on Start > Settings > Network Connections. This opens a window listing the currently
active network connections.
2. Select the connection that is specific to AMX USB Device Link.
3. Right click and select Properties.
4. In the Local Area Connection 3 Properties window (FIG. 33) under the Ge n e r a l tab, select Internet Protocol (TCP/IP) and click
on Properties.
5. In the new window:
Select Use the following IP Address.
Under IP address, provide an IP address (ensure that it is in the same subnet as the IP address given to the usb0 interface
on the MVP-5200i).
Under Subnet mask, set the suitable subnet mask.
Click on OK'
6. In the Local Area Connection 3 Properties window, click on OK.
The user should now be able to run any TCP/IP application between the two systems.

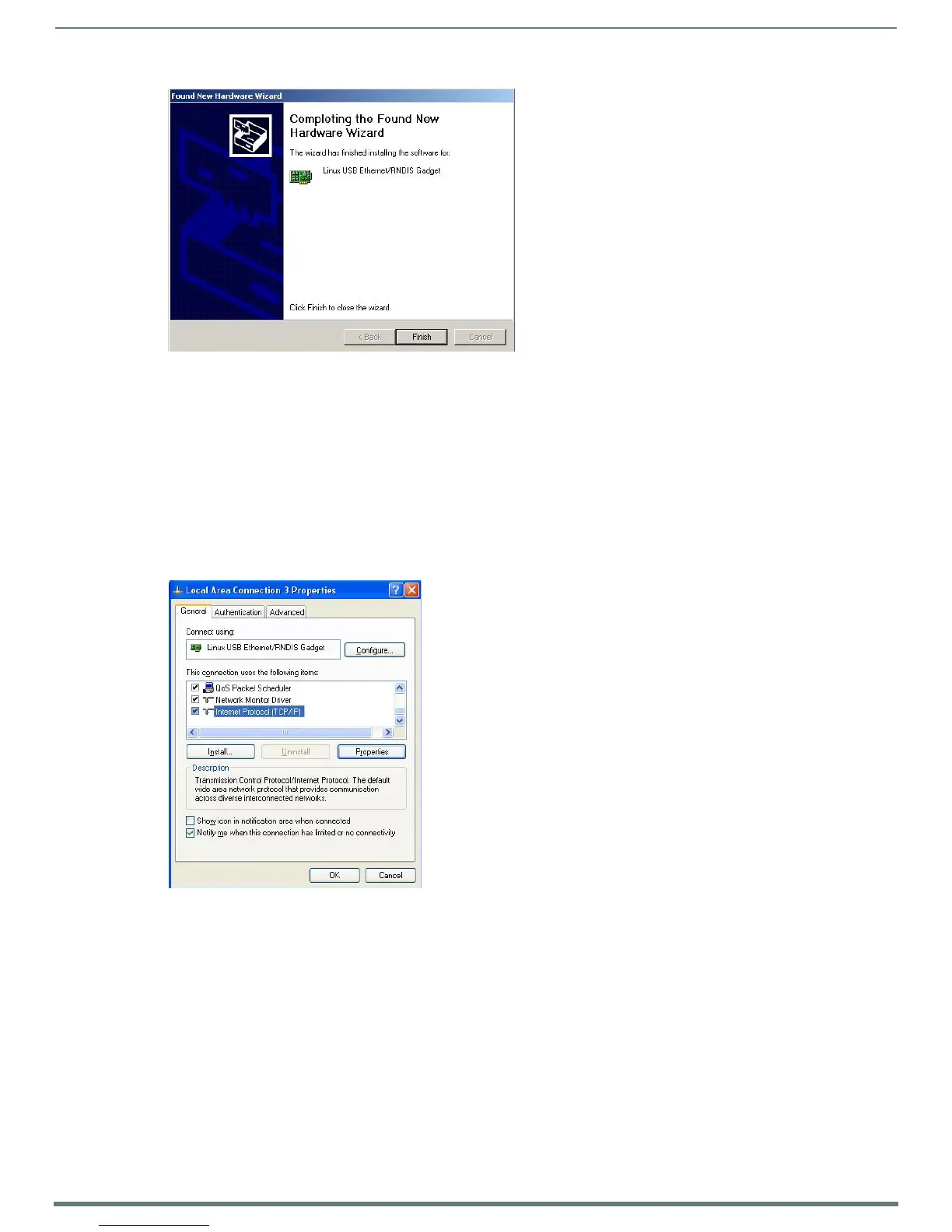

FIG. 32
Completing the Found New Hardware Wizard
FIG. 33 Local Area Connection 3 Properties
