DEMO MANUAL DC2787A
Rev. 0
QUICK START PROCEDURE
50μ/DIV
V
OUT
(20MHz BW)
100mV/DIV
50A-75A-50A LOAD
20A/DIV
2787A F06

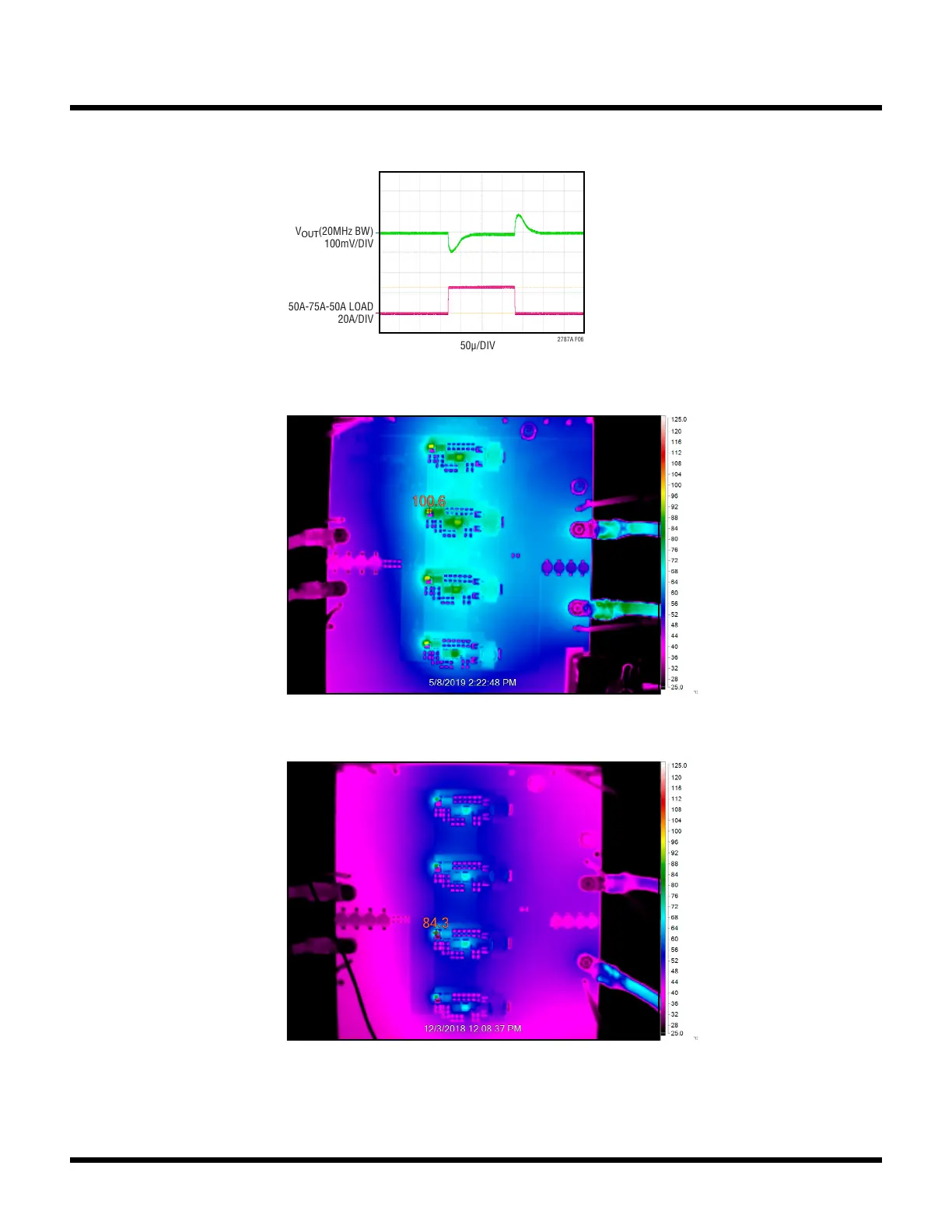

Figure6. Load Step at V
IN
= 48V, V
OUT
= 12V
Figure7. Thermal performance V
IN
= 48V, V
OUT
= 12V, I
OUT
= 100A T
A
= 23˚C, No Airflow
Figure8. Thermal performance V
IN
= 48V, V
OUT
= 12V, I
OUT
= 100A
A
= 23˚C, 200LFM Airflow
