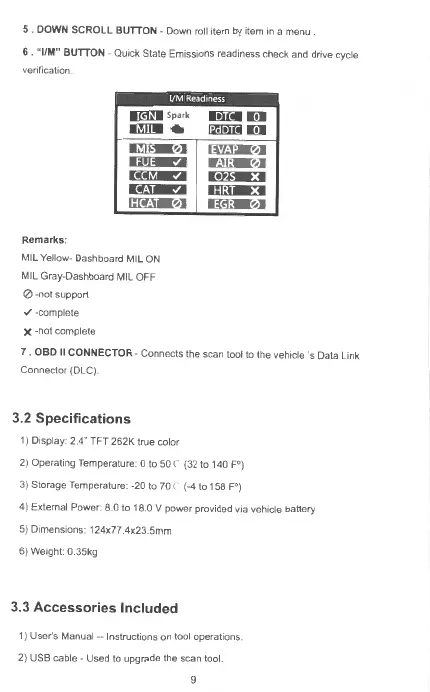

S DOWN SC RO LL BUTTON - Down roll item by item m a menu
6 .
"1/M" BUTTON Quick State Emissions readiness check and dnve cycle
verification
a@D spark
EIIIII •
~:J
~
~
~
~:J
Remarks:
MIL Yellow- Dashboard MIL
ON
MIL Gray-Dashboard MIL OFF
0 -not support
..I -complete
x -not complete
. ,
llill!l llill
(ll;liml[i]I
~ :J
~ :J
iIDHa:11
Ciaat:11
Hfila<,:J
7 . OBD II CONNECTOR - Connects the scan tool to the vehicle ·s Data link
Connector (DLC)
3.2 Specifications
1) Display 2.4" TFT 262K true color
2) Operating Temperature: 0 to
50 C (32 to 140 F
0
)
3) Storage Temperature: - 20 to 70 < (-4 to 158 F
0
)
4) External Power 8.0 to 18 0 V power provided via vehicle battery
5) Dimensions: 124x77 4x23.5mm
6) Weight: 0.35kg
3.3 Accessories Included
1) User's Manual -- Instructions on tool operations
2) USB cable - Used to upgrade the scan tool.
