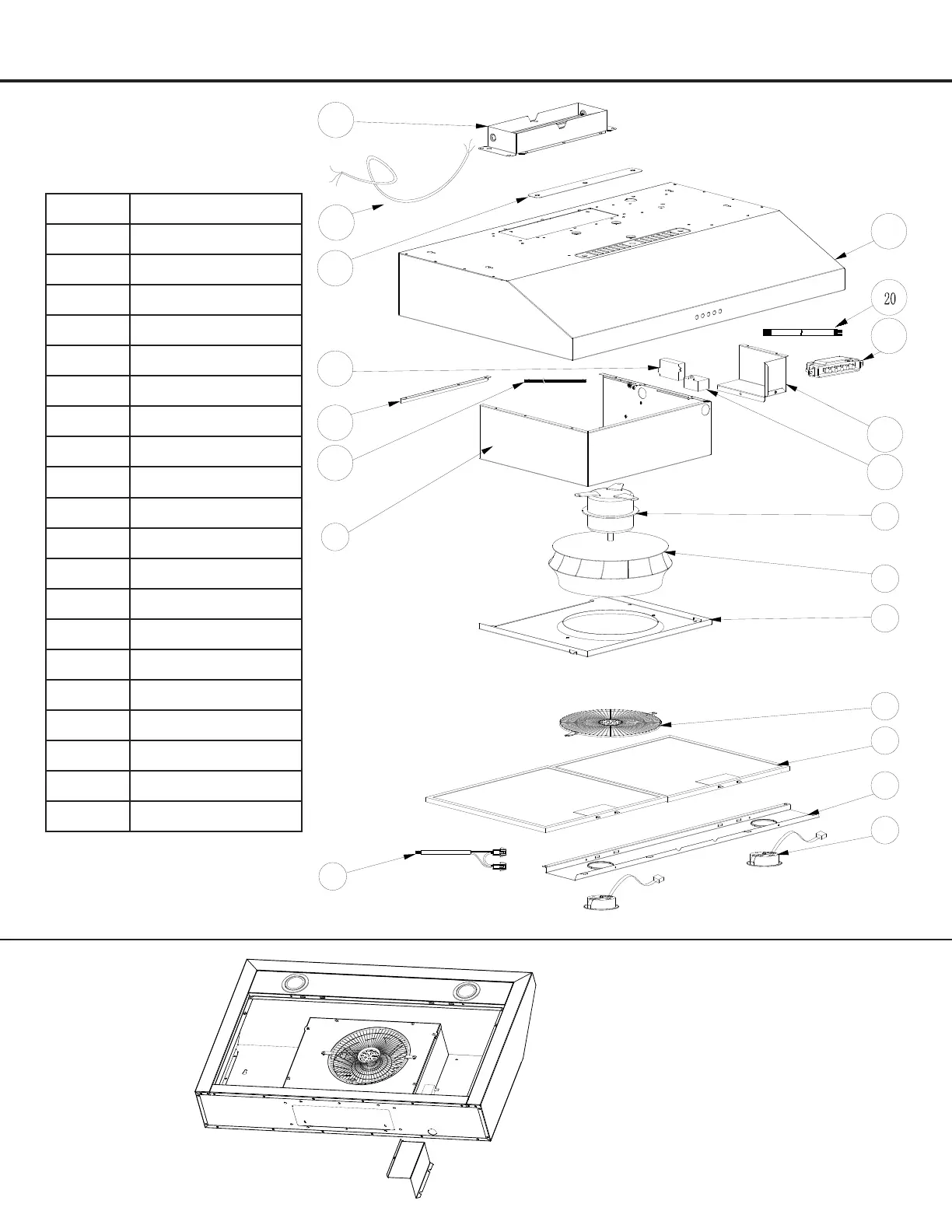

Ancona Slim S3D - Range Hood Assembly Components

— 17 —
Range Hood Assembly
Wiring Box
Number Part
1 Round LED lamp
2 Lamp board
3 Filter
4 Satety screen
5 Cage plate
6 Propeller
7 Motor
8 Capacitor
9 Box cover
10 Housing
11 Lamp guide line
12 Propeller cage
13 Driver guide line
14 Strengthen strip
15 LED lamp driver
16 Housing cover
17 Wires
18 Outlet
19 Switch
20 Switch guide line
1
2
3
4
5
6
7
12
14
9
8
15
10
16
17
18
11
13
19
