— 18 —
Assembly

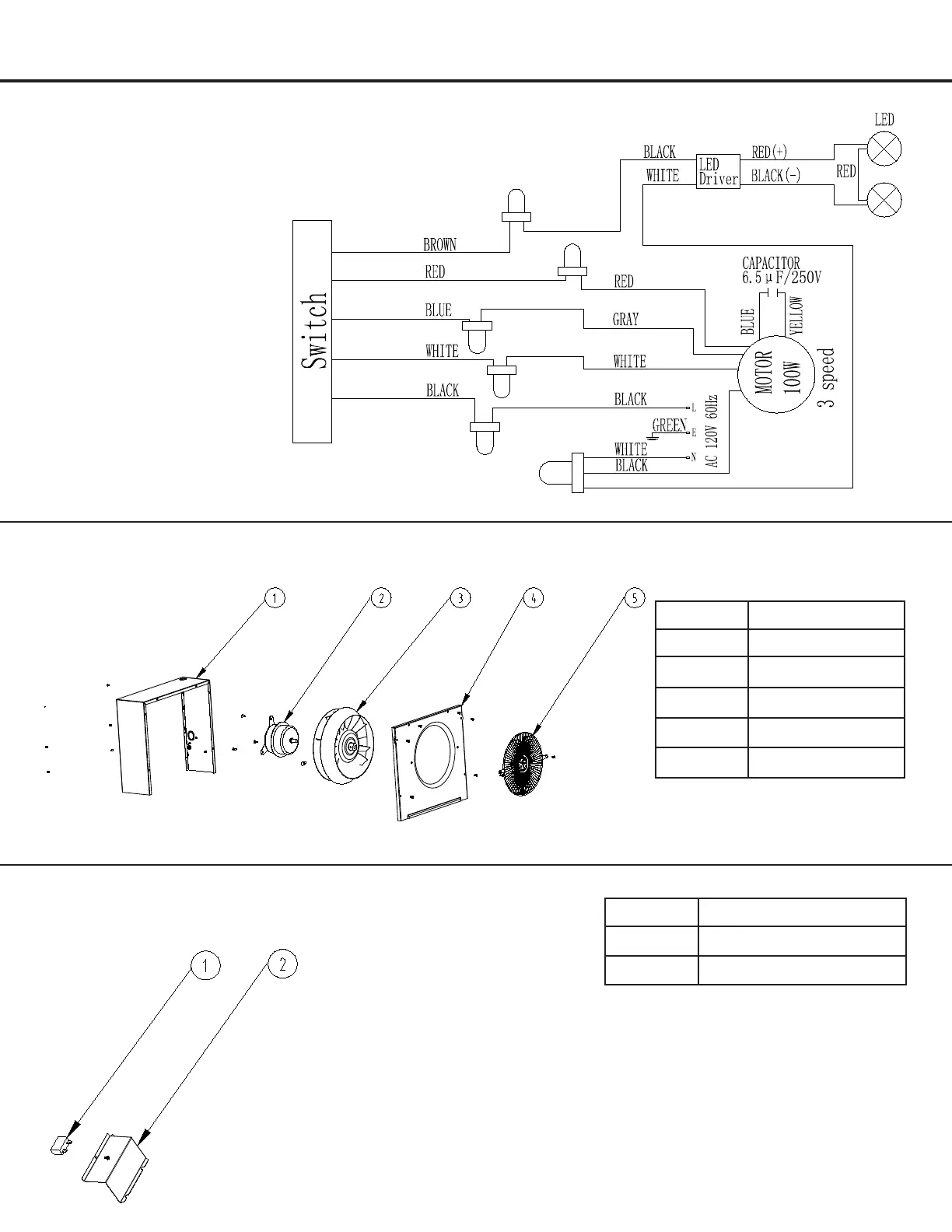

Circuit Diagram
Blower assembly
Electrical Assembly
Number Part
1 Propeller Cage
2 Motor
3 Propeller
4 Cage Plate
5 Safety screen
Number Part
1 Capacitor
2 Electrical box cover
