Installation
Method 2: Attaching the unit to under kitchen cabinets

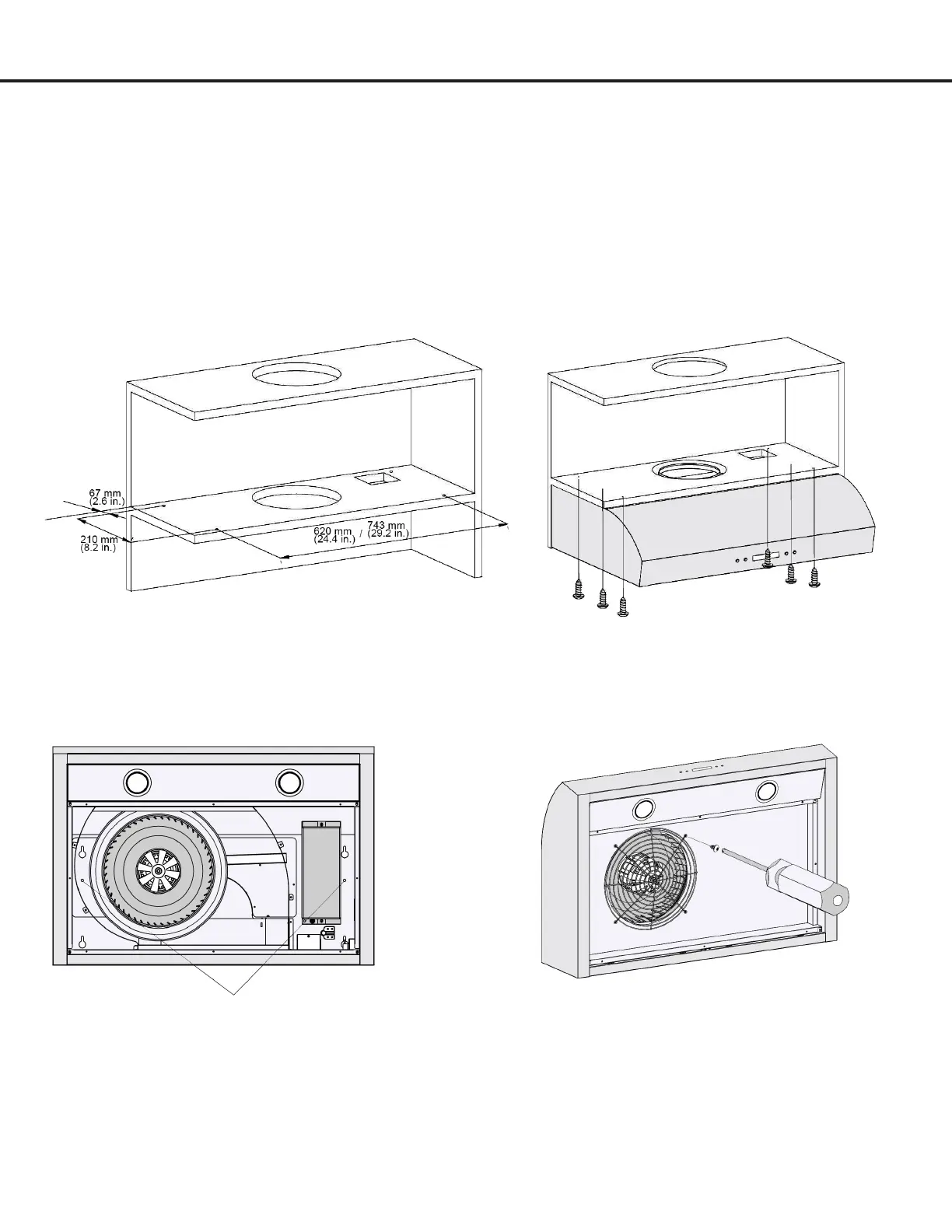

• Mark or drill four small holes on the mounting position according to the space and dimensions cited on the following
image (Fig #18).
• Open the lter, remove 8 screws (4 x 8 mm) holding cover pan to hood. Align the hole of hood to the screws, then
tighten the screws to cabinet.
• Install two safety screws.
• The following drawings show the mounting dimensions of the 30 in (750mm) and 36 in (900 mm). See Fig #18.
• Re-assembly the cover pan, put the metal inlet cover onto the hood with four screws (4 x 8 mm).
Fig #18 Fig #19
Fig #20 Fig #21
Safety screw holes
